What processing capacity of radiator recycling machine is available for customers to choose?

Date:March 12, 2022 14:54:27/ FAQ / Chat Online/ Leave message

Radiator recycling machine is a machine, which is professionally to process and recycle the air conditioner radiators or car radiators, and separate the copper and aluminum for profit. So for radiator recycling machine, what processing capacity is available for customers to choose? Let's have a look.

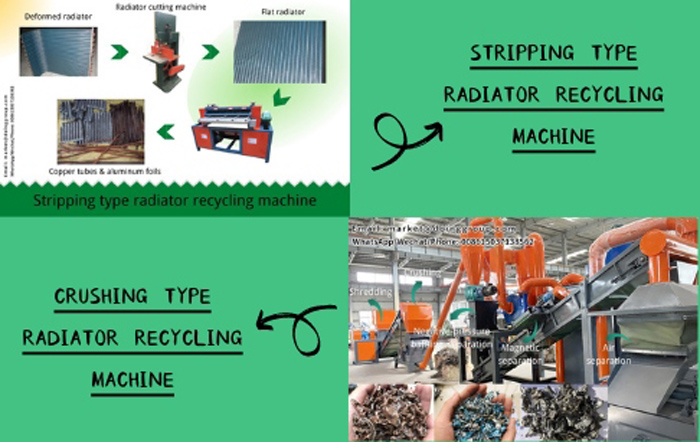

In fact, there are two types radiator recycling machine for choosing. One is stripping type radiator separator machine, which is a small single machine. Another is crushing type radiator recycling machine, which is a processing line. Customers can choose the proper type of this machine firstly, according to the raw material type and processing capacity per day.

radiator recycling machineRadiator recycling machine

Firstly, if your radiators are flat and undeformed, which are dismantled directly from air conditioner, then, you can consider the small stripping type radiator separator machine. It is used for separating copper tubes from aluminum foils from flat and undeformed radiators. For stripping type radiator separator machine, it’s normally smaller processing capacity, which is 300 kg/h - 600 kg/h.

Parameter of stripping type radiator recycling machine
Capacity(Kg/h) Overall Dimension Power(Kw) Weight(Kg) Recovery Rate
300-400Kg/h
DY-850
1760*950*1350mm 7Kw 750Kg 99%
500-600Kg/h
DY-1200
2250*950*1350mm 7Kw 1250Kg

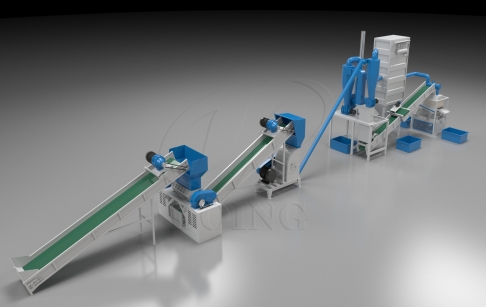

However, if you have all kinds of radiators, and the quantity is large, you can choose the crushing type radiator recycling machine. It can recycle copper and aluminum from waste radiators. This processing line can fully automatically running, to recycle the radiators and separate the copper and aluminum out, which is higher efficiency. As for crushing type radiator recycling machine, its processing capacity is higher than stripping type radiator recycling machine, which can reach to 2000 kg/h.

Parameter of crushing type radiator recycling machine
Capacity(Kg/h) Overall Dimension Power(Kw) Weight(Kg) Recovery Rate
500kg/h 16000*6500*4500mm 103Kw 7500kg 99%
1000kg/h 20000*8000*4500mm 165Kw 12000Kg
2000kg/h 26000*20000*5000mm 305Kw 20000kg

If customers have special requirement, we can also customize the machine according to customers’ requirements too. So if you are interested in this machine, or have interest to know more about this business, welcome to contact our DOING company for more information here!
