What’s the working principle of copper aluminum radiator recycling machine?

Date:Nov 06, 2020/ FAQ/ Chat online/ Get a free quote

The copper aluminum radiator recycling machine production line is composed of a series of equipment such as shredder, crusher, negative pressure baffle separator, magnetic separator and air separator. Do you know the working principle of copper aluminum radiator recycling machine? Let's talk about it.

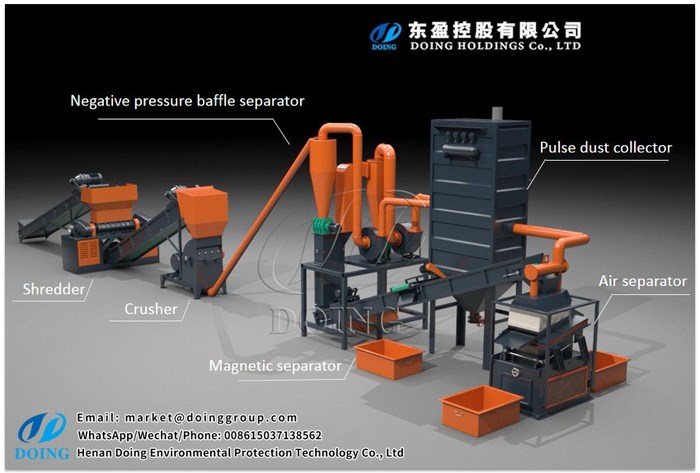

copper aluminum radiator recycling machine 3D picture of copper aluminum radiator recycling machine

The waste radiators is crushed by a double-shaft shredder, which can squeeze and crush the radiators into a small piece of material with a width of 5 cm and an uneven length. The shred materials can be evenly put into the crusher for second crushing.

The crusher is an efficient material crushing system. Through the high-speed rotation of the blades, the impact and shearing forces are generated on the waste radiators, thereby crushing the materials and providing materials of uniform size for subsequent separating.

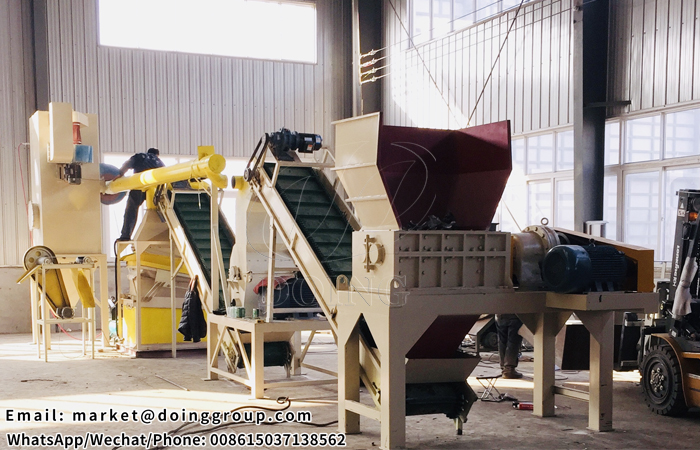

copper aluminum radiator recycling machine Copper aluminum radiator recycling machine

And then the negative-pressure baffling separator will separate most lightweight aluminum out. Magnetic separator separate iron out of copper and aluminum.

The air separator can separate out most of the aluminum, improving the sorting efficiency of the whole system. The air separator is equipped with a fan. After the crushed radiators enters the air separator, under the action of its own density and wind, the separation of copper and aluminum is realized according to the specific gravity and suspension speed of the material. The separated copper and aluminum are of high purity.

If there is any question about copper aluminum radiator recycling machine or the working principle of copper aluminum radiator recycling machine, you can feel free to contact us.
