Newest wire stripping machine

Date:2016-07-29 15:45:16/ Copper wire recycling machine/ Chat Online/ Leave message

1.Introduction for wire stripping machine

Wire stripping machine(also named waste electric wire and cable recycling equipment) is a kind of machinery used to crush waste copper wire and separate copper and plastic. The copper is on of the environment-friendly type equipment. This crushing copper machine is applicable for processing various wires and cables.

Such as Auto electric wire, computer wire, house wire, communication cables and other wires. At first it crushes or granulates these wires (or cables) into small granules, then separate copper from plastic, getting pure copper and plastic.

2.Features of wire stripping machine

1)Multifunctional usage: this crushing copper machine could process various kinds of cable and wire within 20mm.

2) The whole process is controlled by PLC, only needs 1-2 person to operate.

3) Made up of superior steel board, durable to use.

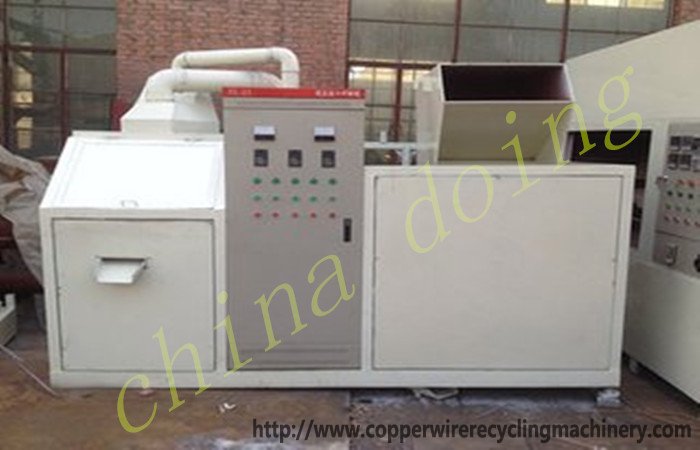

Wire stripping machine

4) Low power consumption and cost, one investment means high profit for a long time.

5) Environmental: equipped with dust collector and doesn't need water, thus there is no pollution during operation.

6) When it is compared with other manufacturers, we have a lower and competitive price(any wires are applicable)

3. Wire stripping machine process

3. 1 Starting:

Please make sure all the machines are in good condition. Before getting started, please keep the machine unloaded running for 5-10 minutes.

3.2 Feed inlet:

Please clear up iron from the mixed cables, avoiding damage to crusher blade.

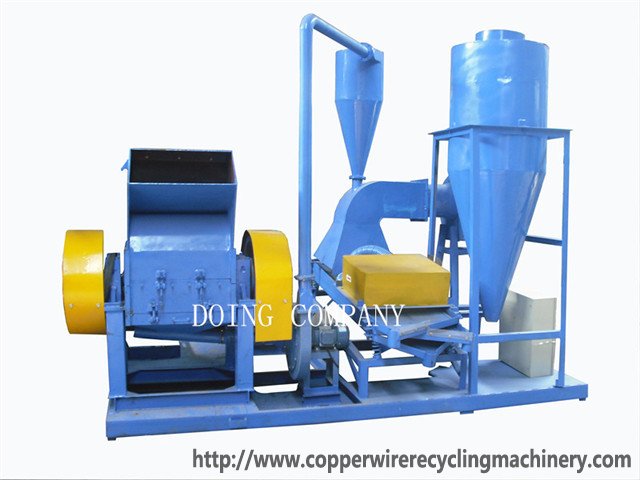

flow chart of our wire stripping machine/stripping machine

3.3 Fine crushing

If there is any abnormal noise, please stop and check the crusher. Change different size screen, if the copper granule is too fine or too much copper without separating from plastic

3.4 Vibrating separator

After curshed, the mixed material will be delivered to vibrating device. The copper fro vibrating separator is complete copper

without plastic,while the copper clad from the opposire discharging hole needs to be second crushed.

4.Display of the product of wire stripping machine

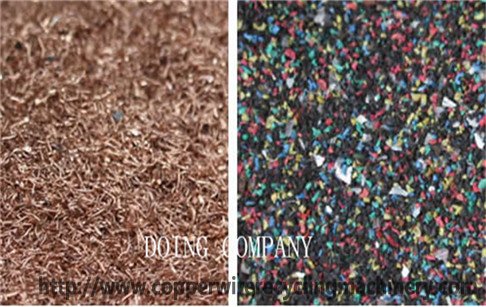

Final product of wire stripping machine

5.Technical parameters of wire stripping machine

Model	Voltage	Power	Capacity	Dimension	Weight
DYTM-400	380V	22.45 kw	150-200kg/H	270019002300(mm)	1200kg
DYTM-600	380V	36 kw	300-400kg/H	350019002700(mm)	3000kg
DYTM-800	380V	75 kw	500-600kg/H	550045003300(mm)	8000k
