Recycling circuit board plant

Date:2016-12-02 13:09:47/ PCB recycling machine/ Chat Online/ Leave message

Introduction of Recycling circuit board plant

Recycling circuit board plant is widely used for all kinds of circuit boards, PCB,FPC flexible circuit boards and so on. This technology can separate the materials containing the circuit board directly without disassembling.Recycling circuit board plant are separated and recycled by the following process: coarse material, magnetic separation in first step,fine breaking, dust collecting, winnowing, vibration screening, specific gravity separator, electric separation in second step.recovery rate can reach more than 99%.During the operation ,it only need to 1-2 people with fully automatic operation from feeding to sorting .It is named environmental dry separation, adopting physical method which doesn’t produce any pollution and doesn’t need heating ,setting on fire, water and any other chemical materials,low cost, high efficiency,non-pollution technology.
Features of Recycling circuit board plant

1.High recycling rate compared with dry process
2.Easy to operating, no special skill required
3. Circulation water
4. No second polution produced

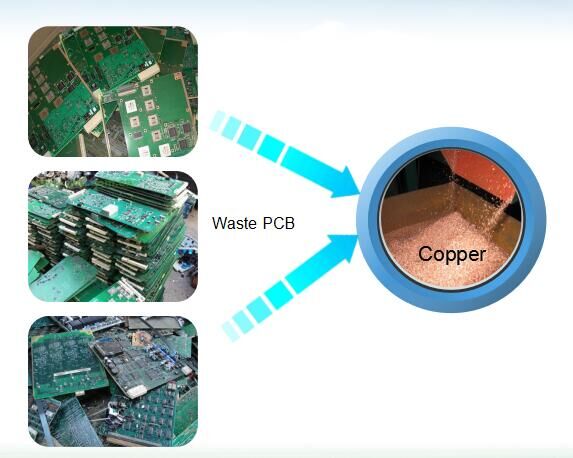

Application of Recycling circuit board plant

Application of Recycling circuit board plant

Recycling circuit board plant applicable to all kinds of pcb raw materials, such as Computer motherboards, Cell phone boards, Tv Boards, Freezer boards,Air-conditioner boards, Radio Boards, Printer boards, overleft of pcb , Coated copper plate/copper clad laminate.electronic components, such as capacitance, resistance, potentiometer, relay, etc.
Advantage of Recycling circuit board plant

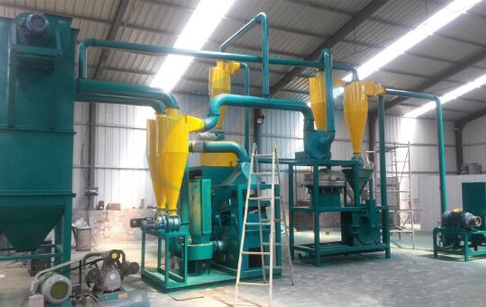

Recycling circuit board plant

1.Compact structure, reasonable layout, stable performance and low noise.
2. Uniform feed full production line adopts PLC control, coordinated operation.
3 three-stage crushing, handling capacity per hour 700-800kg.
4.Crushing chamber with circulating water temperature control and noise reduction.
5. full production line using negative pressure feeding effectively reduce dust overflow.
6.Back feeding system so crushed more efficient.
7. Airflow separation equipment sorting rate of 97 to 99%.

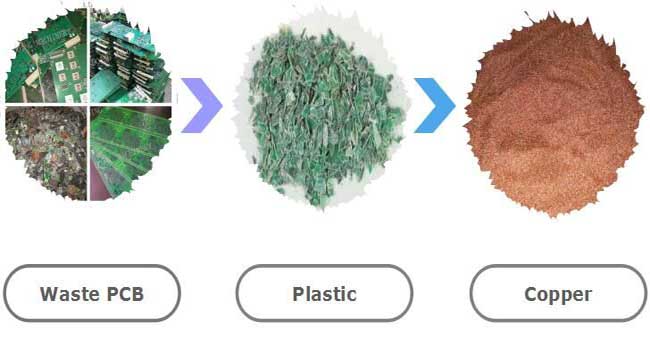

Final product of Recycling circuit board plant
