Printed circuit board pcb recycling machine

Date:2017-03-02 11:24:30/ PCB recycling machine/ Chat Online/ Leave message

Printed circuit board pcb recycling machine introduction

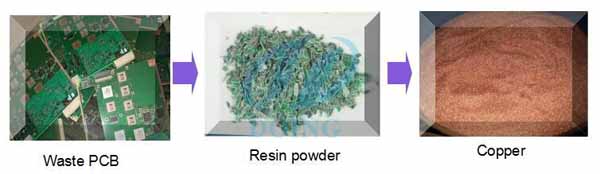

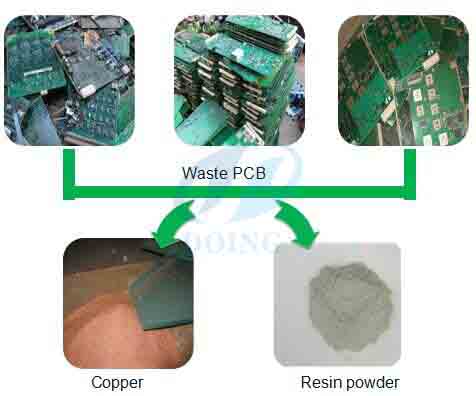

Printed circuit board pcb recycling machine is widely used for all kinds of circuit boards, PCB,FPC flexible circuit boards and so on. This technology can separate the materials containing the circuit board directly without disassembling.The circuit boards are separated and recycled by the following process: coarse material, magnetic separation in first step,fine breaking, dust collecting, winnowing, vibration screening, specific gravity separator, electric separation in second step.recovery rate can reach more than 99%.During the operation ,it only need to 1-2 people with fully automatic operation from feeding to sorting .It is named environmental dry separation, adopting physical method which doesn’t produce any pollution and doesn’t need heating ,setting on fire, water and any other chemical materials,low cost, high efficiency,non-pollution

Printed Circuit board pcb recycling machine advantage

Printed circuit board pcb recycling machine

1.Compact structure, reasonable layout, stable performance and low noise.
2. Uniform feed full production line adopts PLC control, coordinated operation.
3 three-stage crushing, handling capacity per hour 700-800kg.
4.Crushing chamber with circulating water temperature control and noise reduction.
5. full production line using negative pressure feeding effectively reduce dust overflow.
6.Back feeding system so crushed more efficient.

Printed circuit board pcb recycling machine raw material
