Waste CCL (copper clad laminate) recycling line

Date:2019-10-18 17:23:28/ PCB recycling machine/ Chat Online/ Leave message

Copper clad laminate is a kind of plate-like material hot pressed by electronic glass fiber cloth impregnated with resin and one or both sides covered with copper foil, which contents about 90% copper in it. Henan Doing Group's waste CCL(copper clad laminate) recycling line is that machine, which is designed for separating copper and resin fiber from waste CCL(copper clad laminate) in a kind of environment-benign way.

Waste CCL (copper clad laminate) recycling lineProcessing raw materials

In fact, waste CCL (copper clad laminate) recycling line, can not only process copper clad laminate, but also can process computer motherboards, TV boards, cell phone boards, etc. to get precious metals. The working process is pretty simple, just includes shredding, crushing, eddy-vibrating screen, air separation and electrostatic separation.

Firstly, shredder and crusher will cut the waste CCL to 4mm particles.

Then, the eddy-vibrating screen will control the particle size to 20mesh. If the particles are a little bigger, well, they will be sent back to crusher for further crushing.

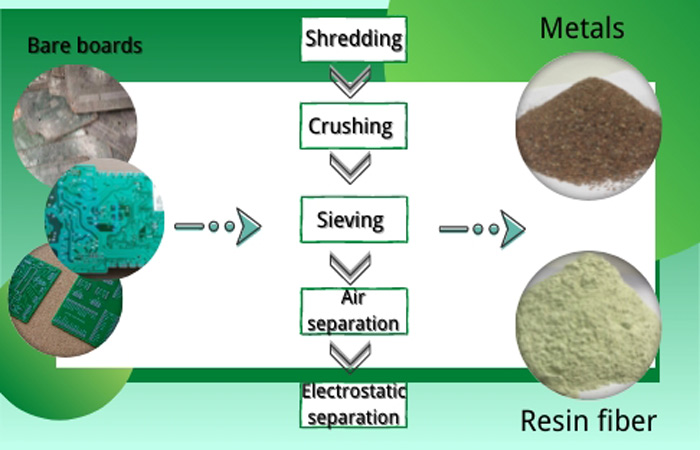

Waste CCL (copper clad laminate) recycling lineWorking process

At last, air separator and electrostatic separator will separate high purity and good quality copper and resin fiber according to their different gravity and conductivity. The separation rate can reach to 99%.

Tips: If the raw materials you collect are waste CCLs with electronic components, you can use electronic components dismantling machine to dismantle the electronic componnets to get higher purity metals.

The whole workflow uses no water, fire, or chemical solution, which won't produce any pollution to environment. Besides, during the whole process, the cyclone and pulse dust collectors will collect the dust to make sure the site clean. The capturing rate can reach to 99.5%.

Waste CCL (copper clad laminate) recycling line can not only process different circuit boards, but also has a large processing capacity. The processing capacity can range from 100kg/h to 2000kg/h. If you have more waste circuit boards to process, our engineer can also customized suitable waste CCL(copper clad laminate) recycling line according to your needs.

Capacity(Kg/h)  Overall DimensionPower(Kw)Weight(Kg)Recovery Rate
100-150kg/h8000*6000*4200mm42kw6000kg≥99%
200-300kg/h10000*6000*4200mm76kw7500kg
400-500kg/h16000*8000*4200mm95kw8500kg
500-700kg/h21000*9000*4200mm140kw10000kg
800-1000kg/h24000*10000*4500mm250kw14000kg
1500-2000kg/h28000*20000*5000mm470kw19000kg

Hope this article can help you get a brief understanding of waste CCL(copper clad laminate) recycling line. If you have quantities of waste CCL(copper clad laminate) to process, and want to buy waste CCL(copper clad laminate) recycling line, feel free to contact us.
