Pcb recycling plant/equipment

Date:2016-12-09 16:22:27/ PCB recycling machine/ Chat Online/ Leave message
Pcb recycling plant/equipment brief introduction
pcb recycling plant
Pcb recycling plant/equipment



Pcb recycling plant/equipment is developed in combination with advanced domestic and foreign technology. Pcb recycling plant/equipment adopts advanced recycling process by physical methods. Such crushers and high voltage electrostatic separation devices developed by the company are of strong innovation, and their process lines for resource recycling are advanced and reasonable.
Pcb recycling plant/equipment  can conduct recovery processing by mechanical pulverization for various waste printed circuit board, computer boards, TV boards, aluminum-plastic panels, copper-coated plates, printed circuit boards and processing waste and waste and used electric appliances. It offers high recovery percent of mental, of which, the purity is up to 99.9%.

Pcb recycling plant/equipment  work principle
pcb recycling plant
Pcb recycling plant/equipment



PCB Recycling plant/equipment adopts a process route that makes raw materials such as printed circuit boards to be a mixture of metal and resin fiber powder by dry crushing and pulverization and then separates the metals from the non-metal materials such as resin by high voltage electrostatic separator. To avoid the pollution problem ,it also equipped with impulse dust collector ,it can work continually, which can effectively solve the pollution problem ,all the indexes is up to national standard .

Pcb recycling plant/equipment advantage
pcb recycling plant
Pcb recycling plant/equipment
1.Compact structure, reasonable layout, stable performance and low noise.
2. Uniform feed full production line adopts PLC control, coordinated operation.
3 three-stage crushing, handling capacity per hour 700-800kg.
4.Crushing chamber with circulating water temperature control and noise reduction.
5. full production line using negative pressure feeding effectively reduce dust overflow.
6.Back feeding system so crushed more efficient.
7. Airflow separation equipment sorting rate of 97 to 99%.
8. Pulse dust removal equipment efficiency up to 99.99%.
9.high voltage electrostatic sorter sorting the finer more efficient, effective control of non-ferrous metal loss.
10. Complete production line of high disposal bridge and guardrail convenient access real-time monitoring and maintenance of the equipment.
11 waste and scrap the device settings hydraulic system to facilitate the replacement of wearing parts, improve work efficiency.

Pcb recycling plant/equipment application
pcb recycling equipment
Pcb recycling plant/equipment application


 Pcb recyling plant /equipment application to all kinds of pcb raw materials, such asComputer motherboards, Cell phone boards, Tv Boards, Freezer boards,Air-conditioner boards,  Radio Boards, Printer boards,  overleft of pcb , Coated copper plate/copper clad laminate.

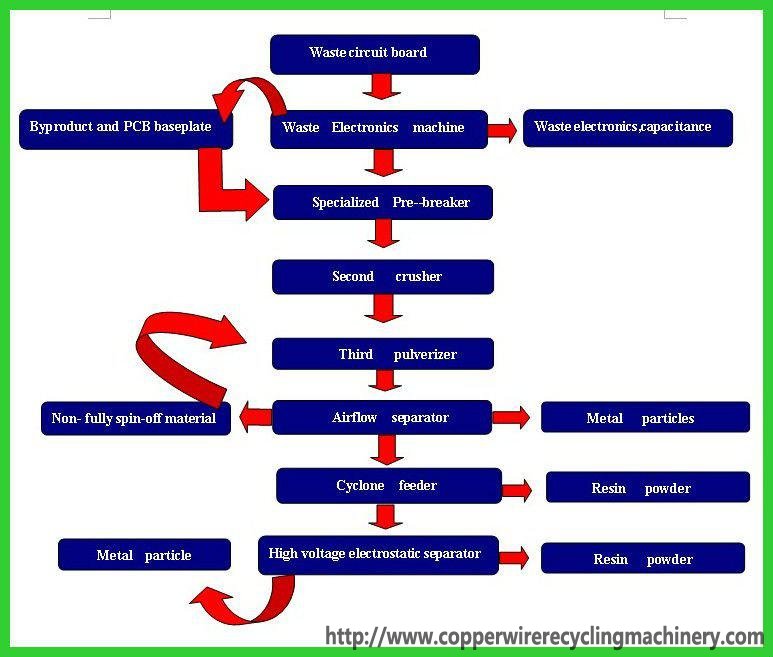

 Pcb recyling plant /equipment separtion process


pcb recycling plant

Pcb recyling plant /equipment technical paramter

Model   Voltage   Power   Capacity  Dimension     Weight
DYLS-400    380V     22.45 kw     150-200kg/H       2700*1900*2300(mm)    1200kg
DYLS-600  380V   36 kw  300-400kg/H  3500*1900*2700(mm)  3000kg
DYLS-800  380V   75 kw  500-600kg/H  5500*4500*3300(mm)  8000k
