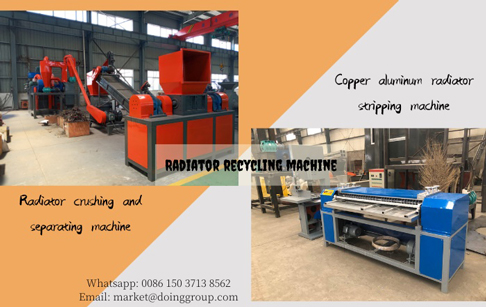

When we take apart car radiators, air conditioners radiators, and other gadgets, we find they're full of stuff like copper, aluminum, and iron. All these can be reused a lot if we use the right machines to recycle them. It's like giving old things a new life! After years of research, Henan DOING has launched several single machine and radiator recycling machine production line specifically for recycling waste radiators. Next, the editor will introduce these machines to you:
Waste radiator recycling
1. Radiator stripping machine:

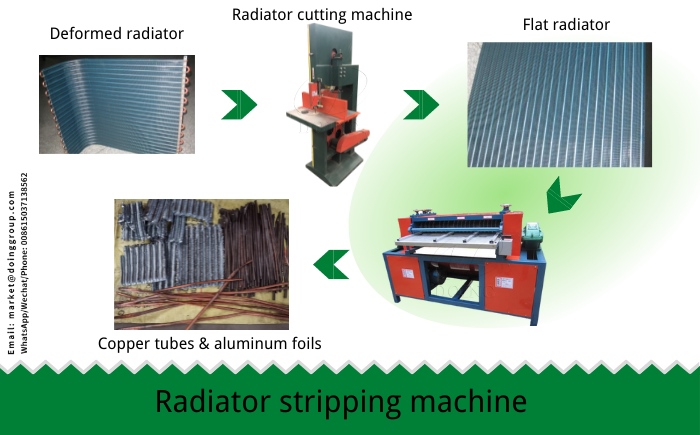

Radiator stripping machine
DOING radiator stripping machine is used to process radiators with flat and regular shapes. The stripping machine can completely strip the radiator copper tube from the aluminum foil.
Raw materials that can be processed: waste air conditioner radiators, scrapped automobile copper and aluminum radiators, defective radiators from air conditioner manufacturers, etc.
Radiator copper tube diameter requirements: 19mm, 21mm, 25mm.
Advantages: low cost, small footprint, simple operation.
Small radiator stripping machines have size restrictions. If the radiator you want to process is too large or has more than two layers, you need to equip it with a radiator cutting machine to assist in feeding.
2. Radiator cutting machine:

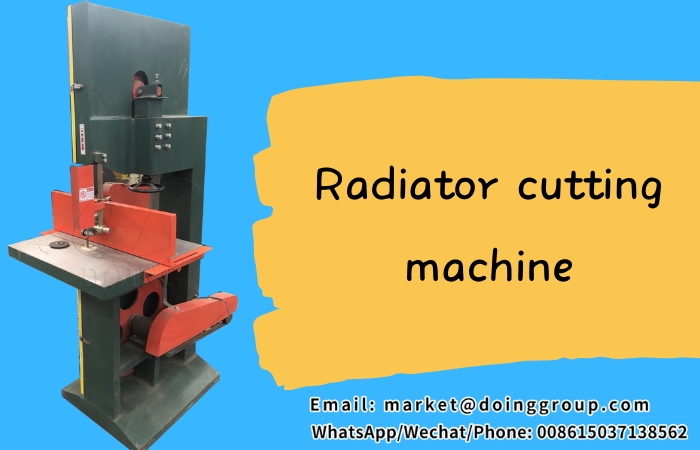

Radiator cutting machine
The radiator cutting machine is used as an auxiliary equipment for the radiator stripping machine. It is used to cut and pre-process the ultra-wide and multi-layer waste radiators according to the feed size requirements of the radiator stripping machine.
3. Waste radiator recycling machine:

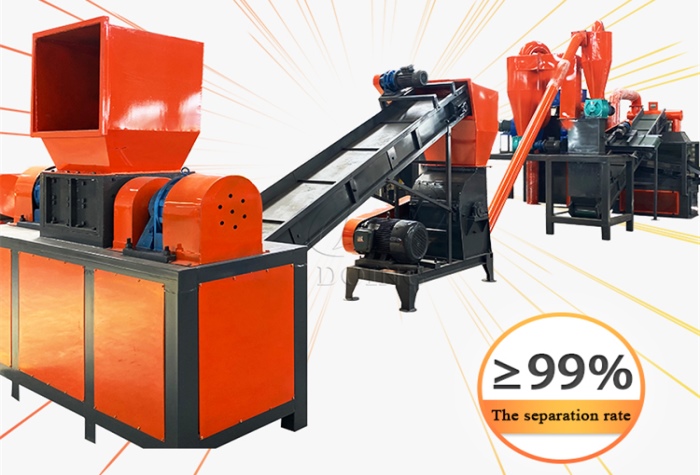

Radiator crushing and separation machine
DOING fully automatic radiator crushing and separation machine is also called waste radiator recycling machine, which is used to process waste radiators of various shapes and sizes. This equipment is a production line that separates and recycles copper, aluminum, and iron metals in the radiator by shredding, crushing, sorting and magnetic separation. The recovery rate is greater than 98%, and the separated product has high purity.
Processing raw materials: various types of waste radiators such as various air-conditioning radiators, automobile copper and aluminum water tanks, condensers, refrigerator crushing materials, etc. You can collect and process these raw materials from waste recycling stations, defective products of air-conditioning radiator manufacturers, and home appliance recycling and disassembly processing stations.
Single machine and working steps of radiator recycling machine:
1. Shredder: Use a shredder to shred the raw materials into small pieces.
2. Crusher: Use a crusher to crush small pieces into particles. The crusher uses a long hole screen, which is not easy to form copper-clad aluminum.
3. negative-pressure baffling separator: sort out light aluminum.
4. Air separator: sort out heavier aluminum.
5. Magnetic separator: use magnetic attraction to sort out iron. The remaining copper will be sorted out from the other side.
6. Pulse dust collector: During the operation of the machine, the pulse dust collector collects dust tightly to protect the cleanliness of the working environment.

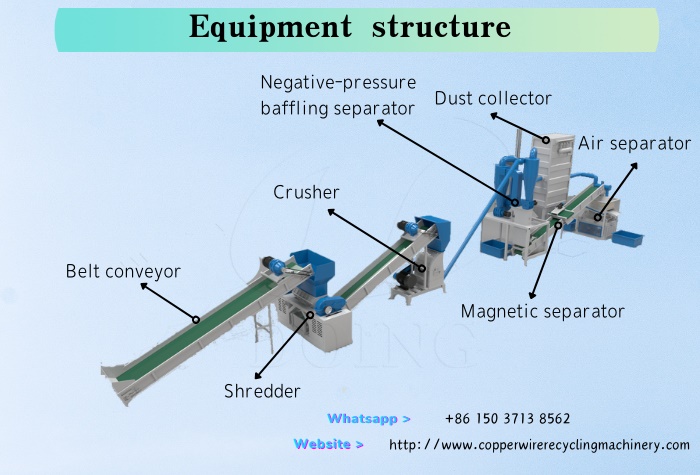

Equipment structure
Advantages of radiator recycling machine:
1. The crushing process uses a double-axis shredder, which is made of specially treated alloy material and is durable;
2. The entire production line adopts a PLC automatic control system, and the equipment operates in coordination;
3. Fully enclosed dust removal ensures a good working environment;
4. Compared with the radiator stripping machine, radiator recycling machine handles a wider range of raw materials, has higher processing efficiency, and a larger processing capacity. Large-scale recycling of iron-containing radiators can be achieved.
Advantages of radiator recycling machine
The above are the common machines for processing waste radiators. If you are hesitating about choosing a suitable radiator recycling machine, Henan DOING can design different solutions for you according to your recycling requirements to meet your personalized requirements. Welcome to contact us for consultation.
