Introduction about the working principle of copper wire recycling machine

Unlike traditional fire burning and water washing copper, the dry type copper wire recycling machine is a new type of environmental protection equipment. The working principle of the copper wire recycling machine adopts the air separation and electrostatic separation, to separate copper from plastic according to the different specific gravity and different electrical properties.

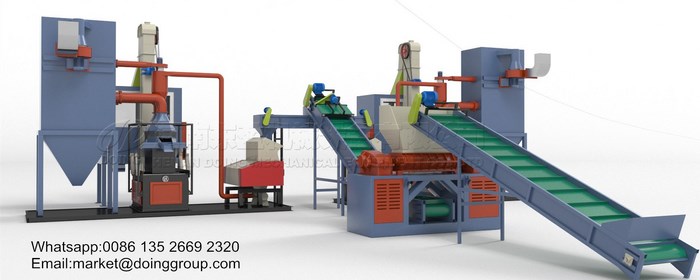

3D picture of copper wire recycling machine

The details of the working principle of copper wire recycling machine as follow:

Shredding / Crushing - The shredder or crusher cut the waste cable wires into small pieces.

Iron Removal - If the crushed waste cable wires, such as scrap car wires, contain a small amount of iron, you need to use a magnetic separator to select the iron first.

Air separation - According to the different specific gravity of copper and plastic, the air separator can separate copper and plastic from the broken cable.

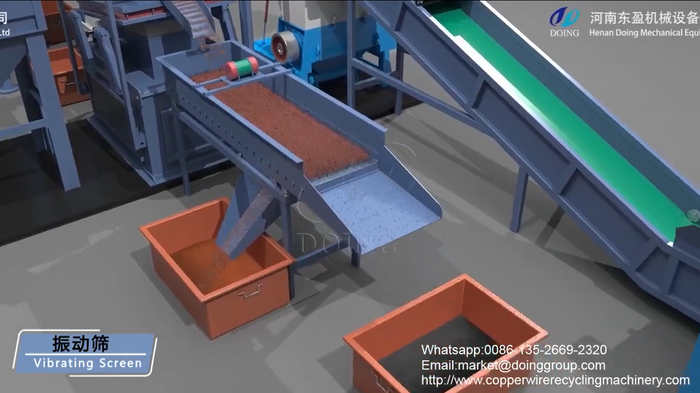

Vibrating screen can screen out the brass in the copper particles

Vibrating screen - Copper contains a small amount of brass pieces. The vibrating screen can screen out the brass in the copper particles, and the copper particles are discharged from the discharge port. The plastic is discharged from another outlet.

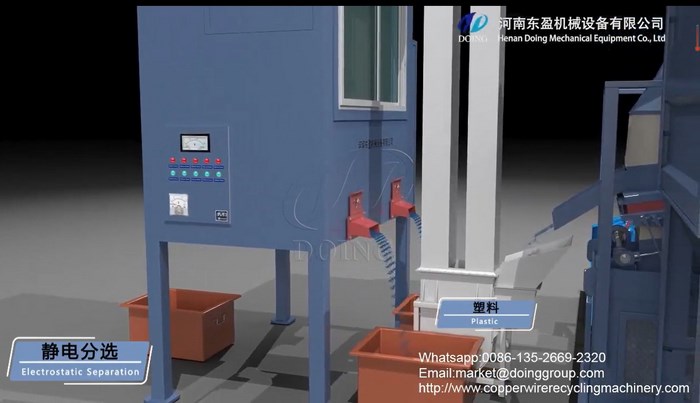

Electrostatic separation - According to the different electrical properties of copper and plastic, the electrostatic separator plastic and copper in a closed high-voltage electrostatic field, and the purity is more than 99%.

Electrostatic separator separate fine copper from plastic

Dust collection - The whole copper wire recycling machine process is under sealed structure with advanced pulse dust collector, which could ensure no dust fly around during the operation.

If you want to process different kinds of waste wires and cables, such as car wires and industrial cables, the working principle of copper wire recycling machine is slightly different in configuration. DOING can match the corresponding equipment according to the customer's raw materials. Welcome your visit and take your materials to check the machine.
