1.Recycling circuit board machine introduction

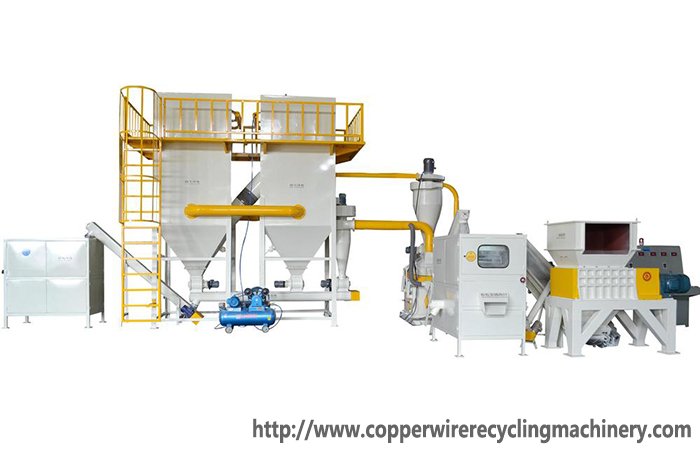

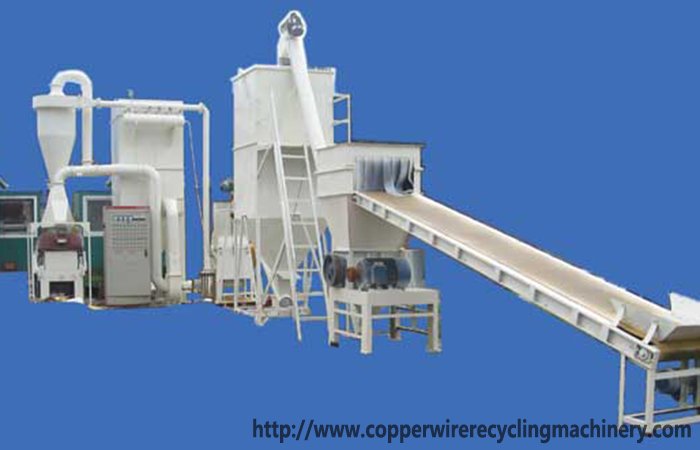

Recycling circuit board machine
Our recycling circuit board(PCB) machine can separate conductor and non conductor,metal and nonmetal and it mainly used for waste printed circuit boards, kinds of aluminum-plastic composite panels, food packaging bags,toothpaste tubes, plastic bottle caps, aluminum foil papers, metals mineral processing.

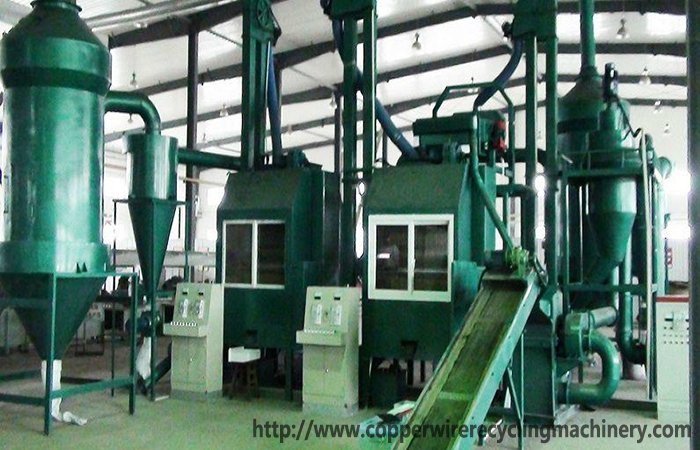

2. Recycling circuit board machine working process
Recycling circuit board machine
Recycling circuit board machine (high voltage electrostatic separation type) adopts a process route that makes raw materials such as printed circuit boards to be a mixture of metal and resin fiber powder by dry crushing and pulverization and then separates the metals from the non-metal materials such as resin by high voltage electrostatic separator. To avoid dust pollution in the process, the recycling circuit board machine also uses the three-in-one dust removal equipment independently developed by the company. This dust removal equipment has three-stage dust removal: cyclone dust removal, bag dust removal and dust removal by air cleaner. All of these effectively solve the problem of dust pollution with every index up to the national standard.
3.Recycling circuit board machine Performance Characteristics
Recycling circuit board machine
1.New process of advanced mechanical pulverization and high voltage electrostatic separation is adopted so that the purity of metal and non-metal separated after crushing and dissociation is high.
2.The key technology is to organically integrate different breaking and dissociation equipment dedicated to various waste and used printedcircuit board so as to achieve the maximum energy-saving effect and high metal separation rate;
3.The unit consumption of energy to treat one ton of waste and used printed circuit board is only about 3/5 of that of domestic product alike; the largest treatment capacity of one set of equipment is 1 ton per hour.
4.The price of it is only 1/5-1/3 of the similar equipment at home and aboard, and the recovery rate of copper is about 3%-5% higher than other manufacturers of the sort.
4.Recycling circuit board machine application
Recycling circuit board machine can process various waste printed circuit board, computer boards, TV boards, copper-coated plates, printed circuit boards and processing waste used electric appliances, aluminum-plastic composite panels, plastic bottle caps, aluminum foil papers, metals mineral processing, and also work for recovering various of circuit

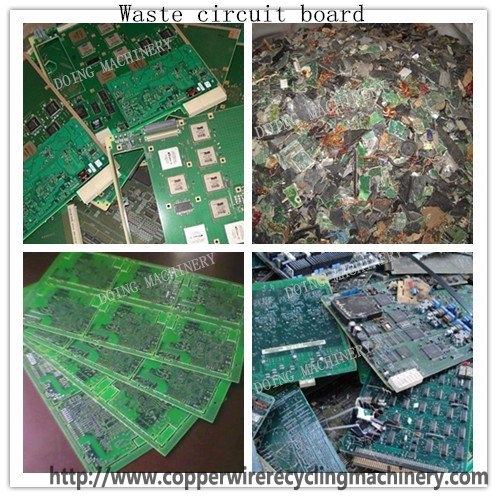

Recycling circuit board machine application to this waste circuit board
Recycling circuit board machine
2. Recycling circuit board machine working process
Recycling circuit board machine
3.Recycling circuit board machine Performance Characteristics
Recycling circuit board machine
2.The key technology is to organically integrate different breaking and dissociation equipment dedicated to various waste and used printedcircuit board so as to achieve the maximum energy-saving effect and high metal separation rate;
3.The unit consumption of energy to treat one ton of waste and used printed circuit board is only about 3/5 of that of domestic product alike; the largest treatment capacity of one set of equipment is 1 ton per hour.
4.The price of it is only 1/5-1/3 of the similar equipment at home and aboard, and the recovery rate of copper is about 3%-5% higher than other manufacturers of the sort.
4.Recycling circuit board machine application
Recycling circuit board machine can process various waste printed circuit board, computer boards, TV boards, copper-coated plates, printed circuit boards and processing waste used electric appliances, aluminum-plastic composite panels, plastic bottle caps, aluminum foil papers, metals mineral processing, and also work for recovering various of circuit
Recycling circuit board machine application to this waste circuit board

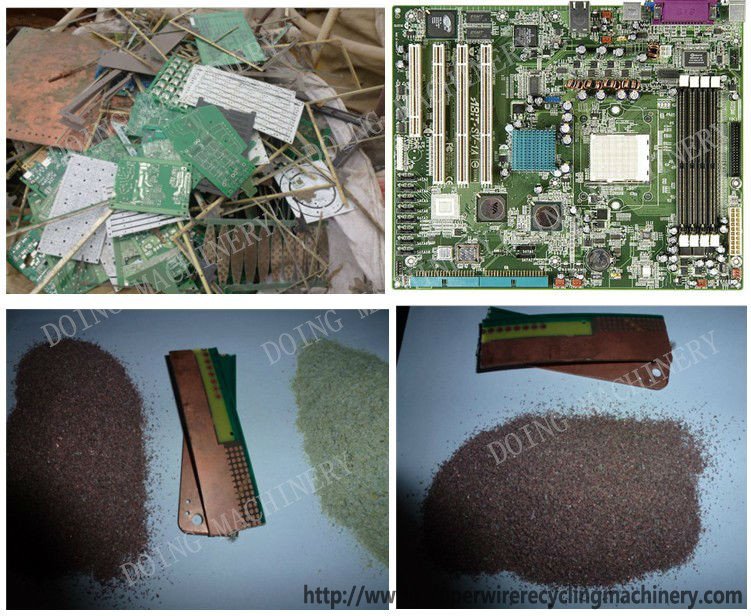

5. Recycling circuit board Final product
