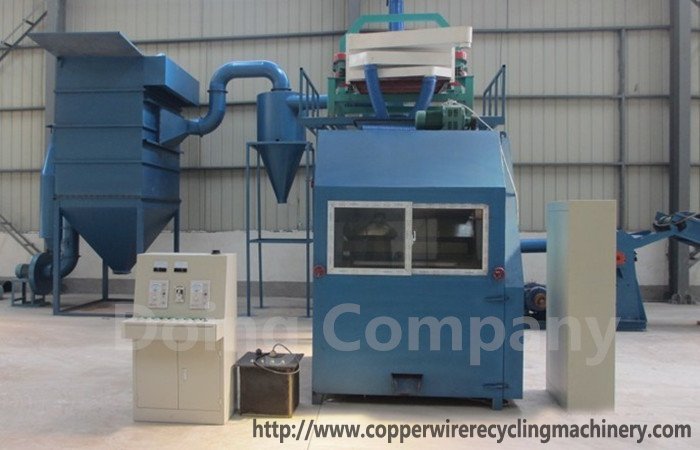

PCB recycling plant

Features of  PCB recycling plant

1.New process of advanced mechanical pulverization and high voltage electrostatic separation is adopted so that the purity of metal and non-metal separated after crushing and dissociation is high.

2.The unit consumption of energy to treat one ton of waste and used printed circuit board is only about 3/5 of that of domestic product alike; the largest treatment capacity of one set of equipment is 1 ton per hour.

3. PCB recycling plant has good comprehensive performance, having special effect on computer board, calculator board, TV board and other control printed circuit board, and compatibility for recovery of various circuit boards with capacitor components.

4.This product line is an upgraded and renewed product of wind-separated products, which consumes less power than wind-separated type and has no noise.

5.   PCB recycling plant needs fewer operators and has no pollution and noise. Besides, the equipment is flexible for layout.




 PCB recycling plant


Working Principle of  PCB recycling plant

 PCB recycling plant crushes and classifies the circuit boards to get metal materials and non-metal materials. The separated materials get into the mixture silo for air separation. The separator is connected with the dust collector and forms horizontal air flow, making the materials to produce the motion in the horizontal direction. while the material also make vertical downward movement due to gravity. Due to different specific gravity of the mixing materials, when they pass through the separating plate of the separator, the lighter non-metallic materials and dust particles are taken away by the dust removal system, while the heavy metal materials enter the finished product recovery zone, achieving the separation of metal and nonmetal.



 PCB recycling plant

Application of  PCB recycling plant

The PCB recycling plant can be used for recycling all kinds of circuit boards, computer board, TV board, aluminum-plastic plate, copper board, printed circuit boards etc. the metal recovery rate can be up to 99.9%.



raw materials of pcb milling machine

Raw materials of  PCB recycling plant

1. Waste printed circuit board with or without electronic components.

2. CCL( copper-clad plate)

3. Scrap circuit boards

waste circuit boards mainly comes from all kinds of scrap electric appliances, mainly including green board and yellow board. Green board is dismantled from waste televisions, computers circuit boards, communicationsequipment, with high value; yellow palte mainly from the tape recorder, audio equipment, washing
machines, air conditioning and dismantling, with low value.





---
