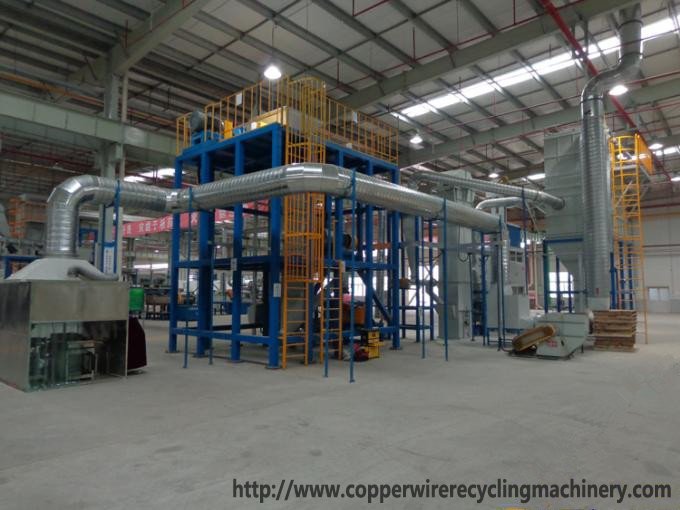

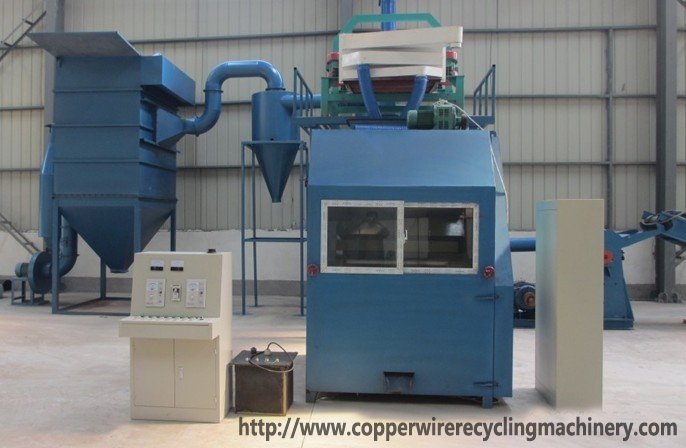

E-waste recycling plant
E-waste recycling plant
Crushing and classifing the circuit boards to get metal materials and non-metal materials. The separated materials get into the mixture silo for air separation. The separator is connected with the dust collector and forms horizontal air flow, making the materials to produce the motion in the horizontal direction. while the material also make vertical downward movement due to gravity. Due to different specific gravity of the mixing materials, when they pass through the separating plate of the separator, the lighter non-metallic materials and dust particles are taken away by the dust removal system, while the heavy metal materials enter the finished product recovery zone, achieving the separation of metal and nonmetal.
Technical Parameters of E-waste recycling plant
| Model |
Power (kw) |
Capacity (Kg/h) |
Demission (mm) |
Efficiency separation |
Weight (kg) |
| DYPCB-300 | 80 | 300 | 8300*5300*4640 mm | 97-99% | 5000 |
| DYPCB-500 | 140 | 400-500 | 21200*4050*5420 mm | >99% | 17000 |
| DYPCB-800 | 185 | 700-800 | 26850*4050*5420 mm | >99% | 21000 |
| DYPCB-1000 | 255 | 900-1000 | 27000*5600*4750 mm | >99% | 25000 |
Flow diagram of E-waste recycling plant
flow chart of E-waste recycling plant
Features of E-waste recycling plant
1.New process of advanced mechanical pulverization and high voltage electrostatic separation is adopted so that the purity of metal and non-metal separated after crushing and dissociation is high.
2.The unit consumption of energy to treat one ton of waste and used printed circuit board is only about 3/5 of that of domestic product alike; the largest treatment capacity of one set of equipment is 1 ton per hour.
3.E-waste recycling plant has good comprehensive performance, having special effect on computer board, calculator board, TV board and other control printed circuit board, and compatibility for recovery of various circuit boards with capacitor components.
4.This product line is an upgraded and renewed product of wind-separated products, which consumes less power than wind-separated type and has no noise.
5.E-waste recycling plant needs fewer operators and has no pollution and noise. Besides, the equipment is flexible for layout.
