Copper wire granulator machine

Copper wire granulator machine is a kind environmental protection type machinery, for recycling scrap cable wires to separated copper and plastic through crushing, air separation or electrostatic separation process, without using fire, water or chemical, thus no secondary pollution to the environment.

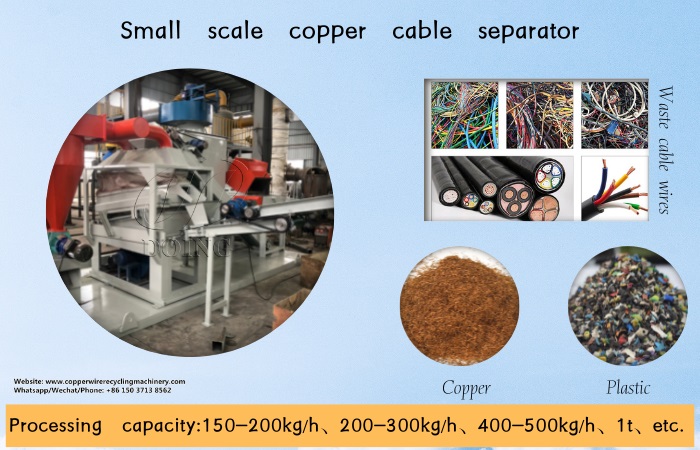

copper wire granulator machine Copper wire granulator machine

 Application Scope of Copper wire granulator machine:

Crushing and sorting of various waste wires, sorting of broken copper, Any building wires and cables, industrial cables, fixture wires or special purpose wire and cable, like battery lead wire, boat wire, bus drop cable, electric vehicle cable, distributed generation cable, etc, all could be recycled through copper wire granulator machine.

copper wire granulator machineCopper and plastic separated from scrap cable wires

Specification of Copper wire granulator machine:

Model Dimension Capacity Power Weight Recovery Rate
DY-400 2000*1650*2600mm 100-150kg/h 18.5kw 1800kg 99.90%
DY-600 2500*1800*2850mm 200-300kg/h 45kw 3500kg
DY-800 3800*1900*3500mm 300-500kg/h 55kw 4200kg
DY-1000 4200*2100*3800mm 600-800kg/h 65kw 4800kg
DY-1200 5180*2300*4200mm 800-1000kg/h 80Kw 5500kg

Design Features of Copper wire granulator machine:

1. Integrated type design, with compact structure, small land occupy size, easy to move to anywhere you want;

2. PLC control, easy to operate, one operator is enough;

3. The air separator adopts Italian air suspension separation technology, both the vibration frequency and air supply could be accurately adjusted according to the different materials.

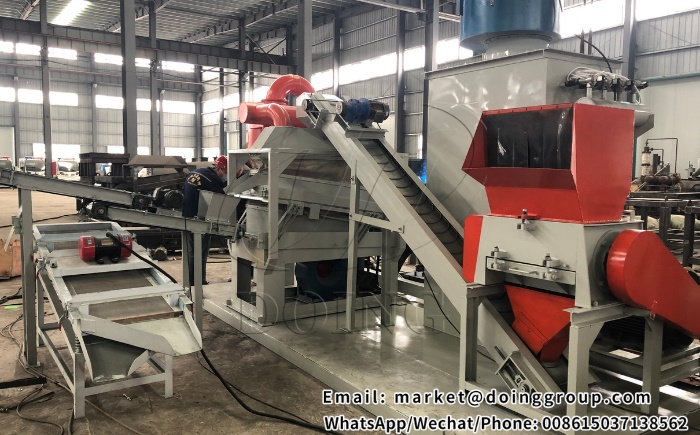

copper wire granulator Features of copper wire granulator machine

4.The crusher use SKD-11 alloy blades, the hardness is H85 degree, which could ensure the good toughness under high wear resistance guarantee with the alternated splayed structure.

5. The whole process is under sealed structure with advanced pulse dust collector, which could ensure no dust fly around during the operation.

6. For very thin wires, like car wires which are less than 3mm, we also have the electrostatic separator which could be equipped with the air separator for further separation, thus to fully separate the thin copper left with plastics.

Deep information about the copper wire granulator machine, welcome your visit to DOING Company or contact us through our website.
