Circuit board recycling equipment

Date:2016-08-31 14:53:17/ PCB recycling machine/ Chat Online/ Leave message

Circuit board recycling equipment can be used for recycling all kinds of circuit boards, computer board, TV board, aluminum-plastic plate, copper board, printed circuit boards etc. the metal recovery rate is 99%.

Circuit board recycling equipment raw material

Characteristics of circuit board recycling equipment:

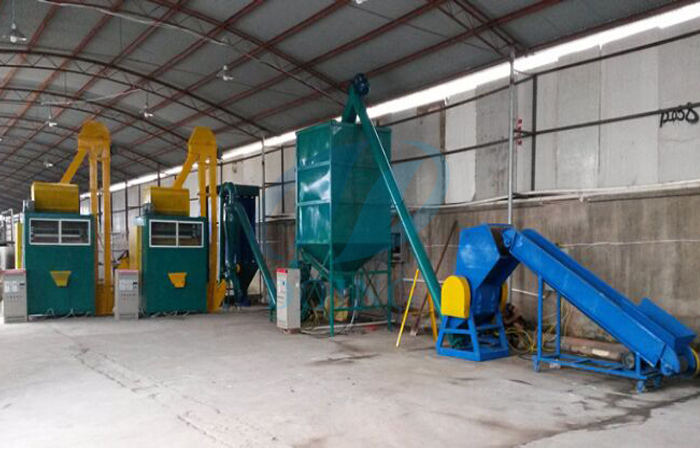

Circuit board recycling equipment

1.Comprehensive performance is good, has the unique effect on the computer board, computer board, TV board and other circuit board.
2.Reduce power consumption, noise, little artificial and manpower, high automation procedures, improving efficiency, and covers an area of smaller,
3.waste recycling equipment adopts the method of new board dust catcher, dust removal (cyclone dust removal ,static dust removal ,purification dust removal),has no air pollution, no emissions.
4.Circuit Board Recycling equipment appearance is neat, replaced the traditional filter.

Working Principle of circuit board recycling equipment

Circuit board recycling equipment working process

Circuit board recycling equipment crushes and classifies the circuit boards to get metal materials and non-metal materials. The separated materials get into the mixture silo for air separation. The separator is connected with the dust collector and forms horizontal air flow, making the materials to produce the motion in the horizontal direction. while the material also make vertical downward movement due to gravity. Due to different specific gravity of the mixing materials, when they pass through the separating plate of the separator, the lighter non-metallic materials and dust particles are taken away by the dust removal system, while the heavy metal materials enter the finished product recovery zone, achieving the separation of metal and nonmetal.

Technical parameters of circuit board recycling equipment

Item	Model	Capacity(kg/h)	Power(Kw)	Size (m)(LWH)	Weight(T)	Remark
1	DY-400	100-200	28.5	3.5×1.5×3.0	1.8
2	DY-600	300-500	36.5	4.0×1.7×3.0	3.0
3	DY-800	500-800	90.0	4.5×1.5×4.2	7.7	Doubling crushing system
4	DY-1000	800-1000	104.2	4.8×1.8×4.2	9.4	Doubling crushing system
