PCB recycling process plant

Date:2016-12-21 10:17:59/ PCB recycling machine/ Chat Online/ Leave message

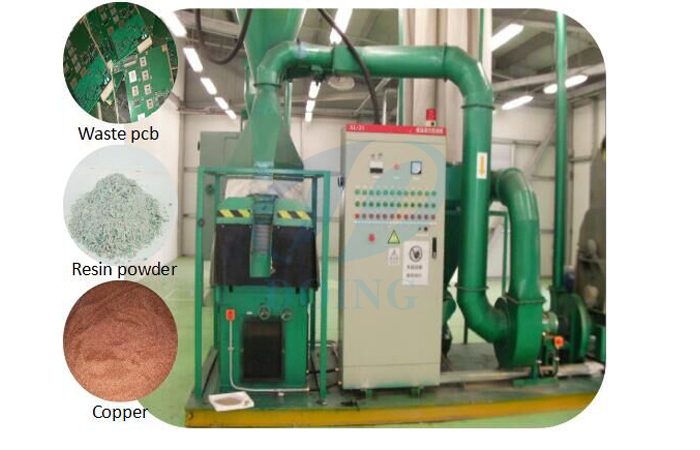

PCB recycling process plant is combined with the domestic and international advanced technology was developed. The PCB recycling process plant adopts the advanced physics law recovery processes; The developed crusher and high pressure electrostatic separation equipment innovation is strong, the recycling of the process route is advanced and reasonable.

PCB recycling process plant raw material

PCB recycling process plant is used to recycle all kinds of Printed Circuit boards, such as the computer boards, cell phone boards, TV boards, aluminum-plastic boards, and other household appliances.

Because of the special physical characteristics of E-waste circuit boards, PCB recycling process plant raw material are adopt the dry-type grinding and separating technique to recycle and reuse. The printed circuit boards will be separated into metal powder and resin fiber powder.

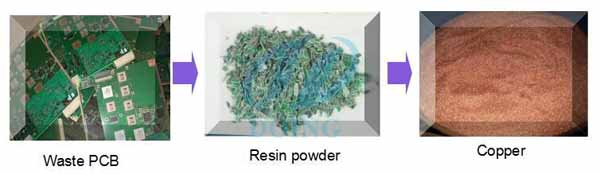

PCB recycling process plant final product

1.The waste circuit boards will be crushed into small pieces.
2.Then will be grinded into the powder mixture of metal and resin fiber. The mixture will be completely separated via pulse air flow separation to get 97% mixed metal powder.
3. The rest mixture powder will go into the high voltage electrostatic separator, the purity can be up to 99.9%, and the impulse dust catcher is approached to efficiently prevent the dust pollution.
