Introduction of Printed circuit board disposal plant
Printed circuit board disposal plant
Printed circuit board disposal plant is widely used for all kinds of circuit boards, PCB,FPC flexible circuit boards and so on. This technology can separate the materials containing the circuit board directly without disassembling.The Printed circuit board disposal plant are separated and recycled by the following process: coarse material, magnetic separation in first step,fine breaking, dust collecting, winnowing, vibration screening, specific gravity separator, electric separation in second step.recovery rate can reach more than 99%.During the operation ,it only need to 1-2 people with fully automatic operation from feeding to sorting .It is named environmental dry separation, adopting physical method which doesn’t produce any pollution and doesn’t need heating ,setting on fire, water and any other chemical materials,low cost, high efficiency,non-pollution technology.
Feature of Printed circuit board disposal plant
PCB circuit board recycling plant
(1) High recycling efficiency, especially for precious metals
(2) Good at solving problem of fibrous dust from kinds of circuit boards when pulverizing
(3) Eco-friendly
(4) Easy to operate and replace spare parts
Working process of Printed circuit board disposal plant

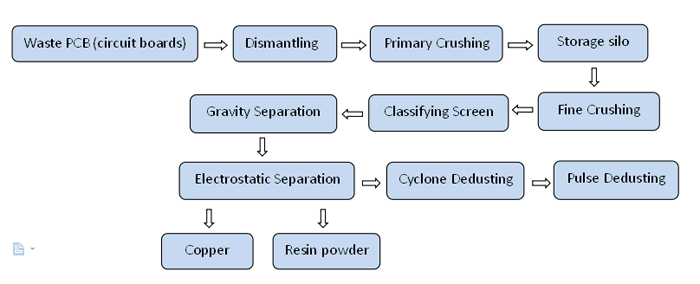

Printed circuit board disposal plant working process
Printed circuit board disposal plant adopts a process route that makes raw materials such as printed circuit boards to be a mixture of metal and resin fiber powder by dry crushing and pulverization and then separates the metals from the non-metal materials such as resin by high voltage electrostatic separator. To avoid dust pollution in the process, the equipment also uses the three-in-one dust removal equipment independently developed by the company. This dust removal equipment has three-stage dust removal: cyclone dust removal, bag dust removal and dust removal by air cleaner. All of these effectively solve the problem of dust pollution with every index up to the national standard.
Raw material of Printed circuit board disposal plant
Raw material of Printed circuit board disposal plant
Printed circuit board disposal plant application to various printed circuit boards .TV boards ,printed boards,computer boards,cellphone board,aluminum-plastic boards ,copper-coasted plates,printed circuit board and processing waste and waste adn used electic appliance.
Technical data of Printed circuit board disposal plant
|
Model |
Voltage |
Power |
Capacity |
Dimension |
Weight |
|
DYTM-400 |
380V |
22.45 kw |
150-200kg/H |
2700*1900*2300(mm) |
1200kg |
|
DYTM-600 |
380V |
36 kw |
300-400kg/H |
3500*1900*2700(mm) |
3000kg |
|
DYTM-800 |
380V |
75 kw |
500-600kg/H |
5500*4500*3300(mm) |
8000k |
