PCB recycling process plant is able to crush waste PCB,PCB edge trimming and copper coating board and also separate the metal powderand non-metal powder. The metal powder and non-metal powder willbe selected by cyclone and vibration separation. Metal recycling ratio could reach 90-98%.De-dust system and activated carbon adsorption tower realize nopollution in whole recycling process. Easy operation and maintenance combinedwith necessary safety considerations bring reliable equipment for your PCB recycling process plant business.
PCB recycling process plant for money application
PCB recycling process plant for money application

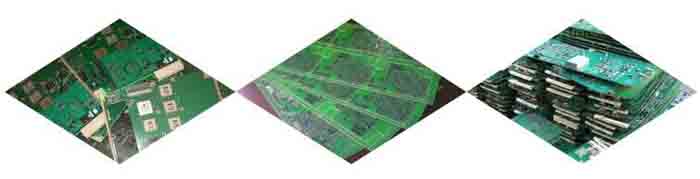

Recycle all sorts of Printed Circuit Board - including home Appliance PCBs, cell/PC/Printer PCBs, PCB industry waste rims.

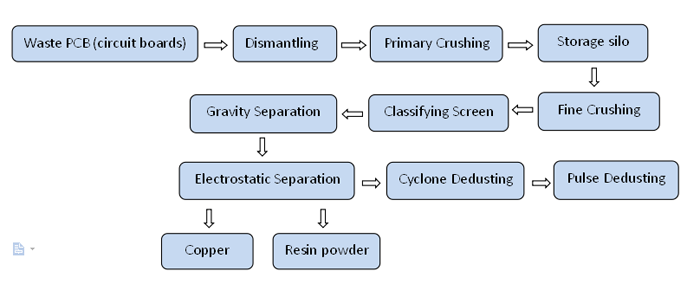

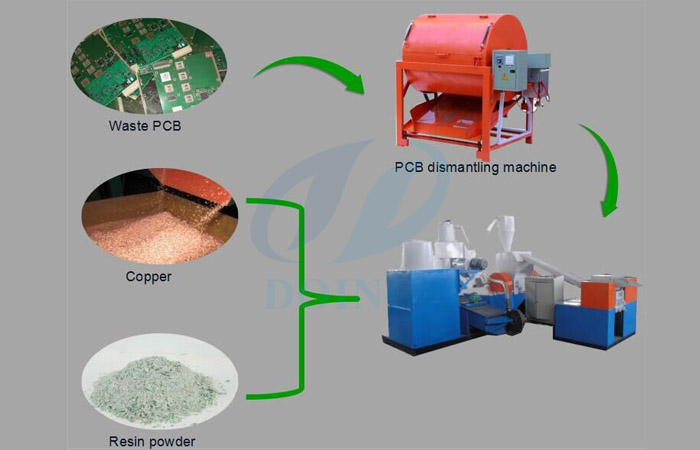

PCB recycling process plant for money working process
PCB recycling process plant for money working process
1.First crushing (let the big board to some small)
2.Secondary crushing (let the small board to powder)
3.Classifier
4.Separate the products.
PCB recycling process plant for money technical data
Item
Model
Capacity(kg/h)
Power(Kw)
Size (m)(L*W*H)
Weight(T)
Remark
1
DY-400
100-200
28.5
3.5×1.5×3.0
1.8
2
DY-600
300-500
36.5
4.0×1.7×3.0
3.0
3
DY-800
500-800
90.0
4.5×1.5×4.2
7.7
Doubling crushing system
4
DY-1000
800-1000
104.2
4.8×1.8×4.2
9.4
Doubling crushing system

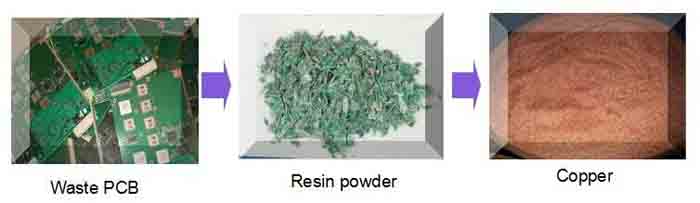

PCB recycling process plant for money final product
PCB recycling process plant for money final product
