In printed circuit boards recycling, a certain number of people use the printed circuit boards recycling equipment to recycle printed circuit boards. I will introduce the printed circuit boards recycling equipment in details to you. If you are interested in the printed circuit boards recycling equipment, you can continue reading.

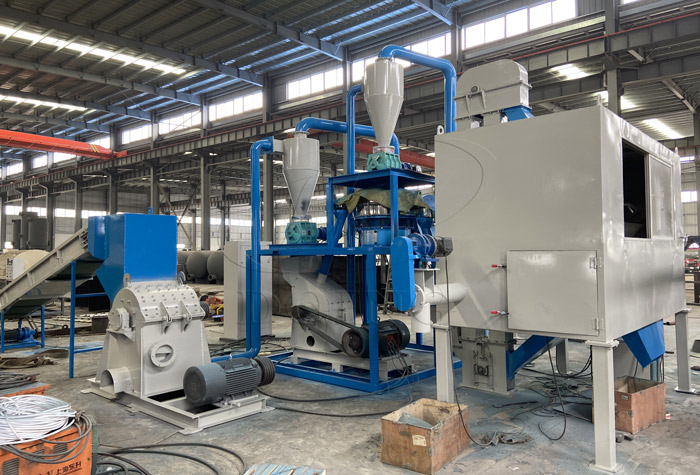

Printed circuit boards recycling equipment
The printed circuit boards recycling equipment mainly includes the following single equipment:
1.Shredder: The shredder is used to shred printed circuit boards to 3-5cm.

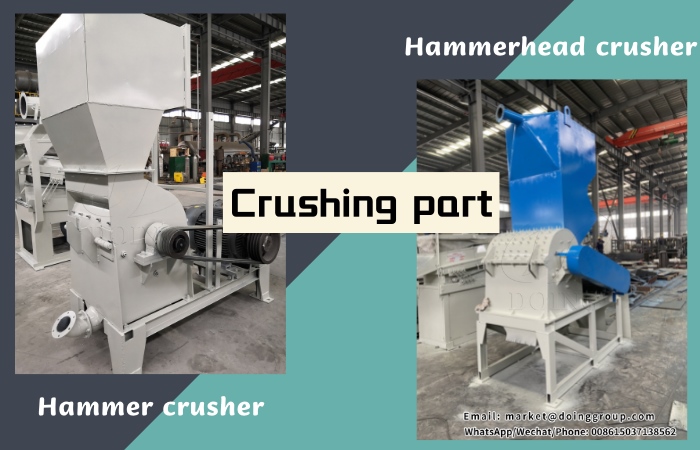

2.First Hammer Crusher: After the first hammer crusher, the printed circuit boards will be crushed to about 1 cm.
3.Belt Conveyor and Magnetic Separator: After the conveyor belt and magnetic separator, the iron is basically all disposed. At the same time, the iron removal efficiency is very high. As long as the front materials can be separated, the magnetic separator can remove all the iron.
4.Second Hammer Crusher: After the second hammer crusher, metal and nonmetal are basically broken. Usually, the printed circuit boards will be crushed to about 4mm, and the diameter of the broken screen pipe is generally 4mm.
5.Eddy-Vibration Screen: The materials are transported to the Eddy-Vibration screen by the wind. The role of the Eddy-Vibration screen is mainly to control the size of the materials. Normally, the mesh size of the Eddy-Vibration screen is 20 to 24 meshes.
6.Air Separator: After the air separator, more than 95% of the metals will be screened.

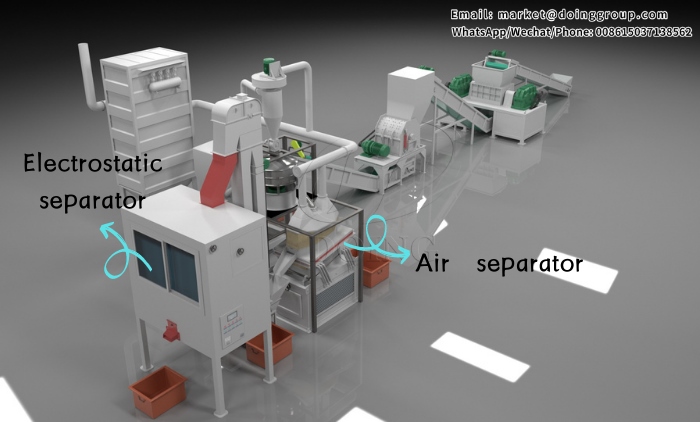

Air separator and Electrostatic separator
7.Electrostatic Separator: The electrostatic separation system can perfectly recycle metal, with a recovery rate of 99.5%, and the remaining non-metal is resin.
These are all the single equipment available in printed circuit boards recycling. You can choose the appropriate configuration according to your needs. If you want to use printed circuit boards recycling equipment to recycle printed circuit boards, welcome to contact with DOING. We have specialized engineers who can design the appropriate printed circuit boards recycling equipment for you according to your needs.
