Recycle printed circuit board machine for sale

Date:2017-03-01 15:05:55/ PCB recycling machine/ Chat Online/ Leave message

Doing group Recycle printed circuit board machine are used to recycle all kinds of Printed Circuit boards, such as the computer boards, cell phone boards, TV boards, aluminum-plastic boards, and other household appliances.

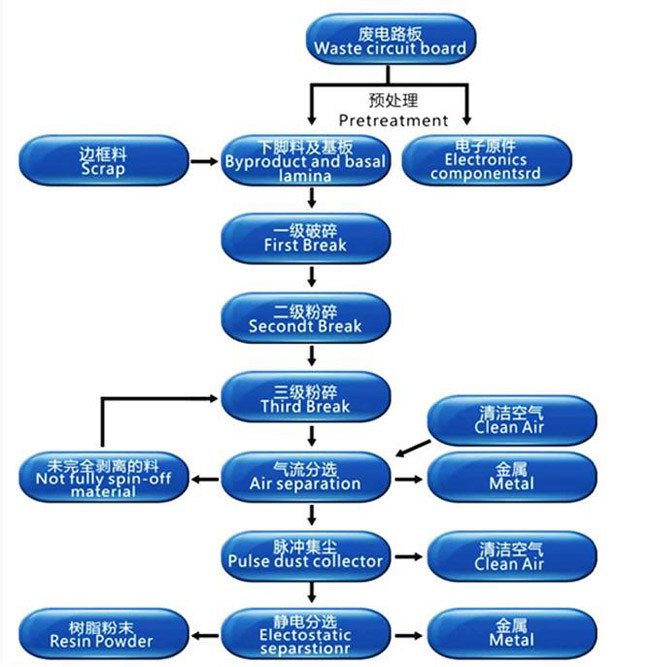

Recycle printed circuit board machine Process description:

Recycle printed circuit board machine Process description:

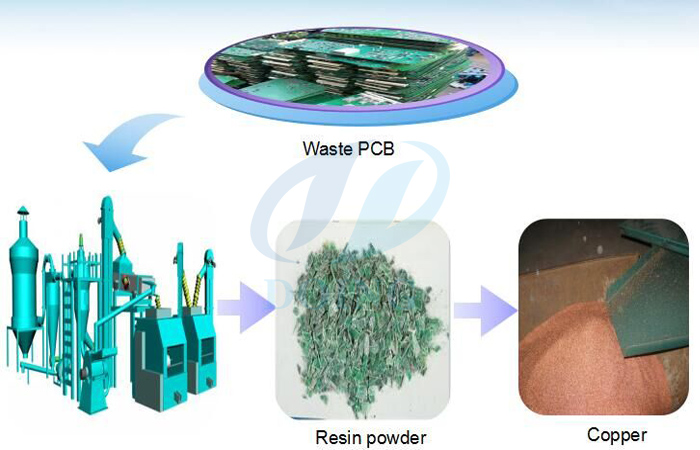

Because of the special physical characteristics of E-waste circuit boards, our recycle printed circuit board machineare adopt the dry-type grinding and separating technique to recycle and reuse. The printed circuit boards will be separated into metal powder and resin fiber powder. First, the waste circuit boards will be crushed into small pieces, then will be grinded into the powder mixture of metal and resin fiber. The mixture will be completely separated via pulse air flow separation to get 97% mixed metal powder, Finally, the rest mixture powder will go into the high voltage electrostatic separator, the purity can be up to 99.9%, and the impulse dust catcher is approached to efficiently prevent the dust pollution.

Recycle printed circuit board machine feature

Recycle printed circuit board machine for sale final product

1. Our Recycle printed circuit board machine adopt the Pulse air separator together with High voltage electrostatic separator, which different from the common vibrating separator and electrostatic separator, ours are owns the larger capacity, high rate of separation, no pollution.
2. Pulse air separator improves the purity of separation rate, this step can separate >95% metal powder.
3. We adopt Pulse dust remove equipment, easy to clean and no dust flying, different from cloth bag remove equipment.
4. Large capacity, the rate of our all set PCB recycling equipment can be really up to 99.8%.

Recycle printed circuit board machine profit

(1). Economic effect:
Save cost, this machine can provide above 99.9% waste wire recovery rate, thus, more wire can be produced from limited resource with lower cost.

(2). Environmental effect:
Nopollution, with strict process on pulverizing andseparating, the dust can be collected effectively.
Compared with burning, this is better to environment.

(3). Profit - Final Products Usage
Metal Materials: sale directly, Nonmetal Materials: sale for other use.

Recycle printed circuit board machine tech data

Item	Model	Capacity(kg/h)	Power(Kw)	Size (m)(LWH)	Weight(T)	Remark
1	DY-400	100-200	28.5	3.5×1.5×3.0	1.8
2	DY-600	300-500	36.5	4.0×1.7×3.0	3.0
3	DY-800	500-800	90.0	4.5×1.5×4.2	7.7	Doubling crushing system
4	DY-1000	800-1000	104.2	4.8×1.8×4.2	9.4	Doubling crushing system
