Doing group Computer circuit board milling machine are used to recycle all kinds of Printed Circuit boards, such as the computer boards, cell phone boards, TV boards, aluminum-plastic boards, and other household appliances.

Computer circuit board milling machine Process description:

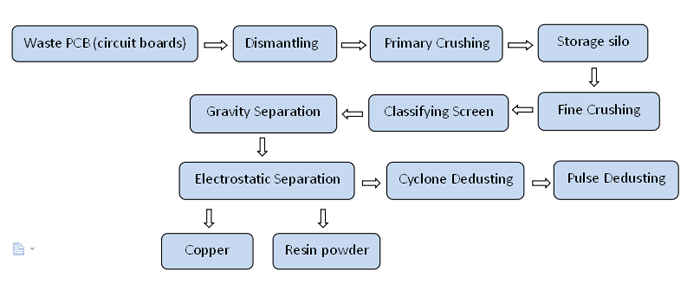

Computer circuit board milling machine process

Because of the special physical characteristics of E-waste circuit boards, our equipment are adopt the dry-type grinding and separating technique to recycle and reuse. The printed circuit boards will be separated into metal powder and resin fiber powder. First, the waste circuit boards will be crushed into small pieces, then will be grinded into the powder mixture of metal and resin fiber. The mixture will be completely separated via pulse air flow separation to get 97% mixed metal powder, Finally, the rest mixture powder will go into the high voltage electrostatic separator, the purity can be up to 99.9%, and the impulse dust catcher is approached to efficiently prevent the dust pollution.

Computer circuit board milling machine Features:

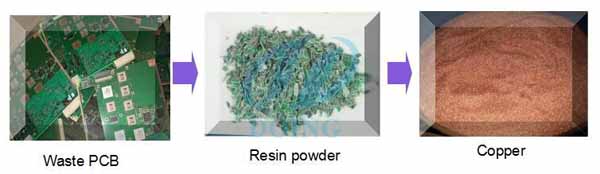

Computer circuit board milling machine final product

1. Doing group computer circuit board milling machine are adopt the Pulse air separator together with High voltage electrostatic separator, which different from the common vibrating separator and electrostatic separator, ours are owns the larger capacity, high rate of separation, no pollution.
2. Pulse air separator improves the purity of separation rate, this step can separate >95% metal powder.
3. We adopt Pulse dust remove equipment, easy to clean and no dust flying, different from cloth bag remove equipment.
4. Large capacity, the rate of our all set PCB recycling equipment can be really up to 99.8%.

Computer circuit board milling machine tech data:

Item	Model	Capacity(kg/h)	Power(Kw)	Size (m)(LWH)	Weight(T)	Remark
1	DY-400	100-200	28.5	3.5×1.5×3.0	1.8
2	DY-600	300-500	36.5	4.0×1.7×3.0	3.0
3	DY-800	500-800	90.0	4.5×1.5×4.2	7.7	Doubling crushing system
4	DY-1000	800-1000	104.2	4.8×1.8×4.2	9.4	Doubling crushing system
