Why recycling waste circuit boards by PCB board recycling machine?

Date:2021-07-20 19:58:35/ FAQ / Chat Online/ Leave message

There are many precious metals in the waste circuit boards. If recycling these metals without damaging them, they will bring considerable profit to us. Many people choose PCB board recycling machine to recycle circuit boards. But why choosing PCB board recycling machine? In this article, I will tell you the reasons.

1, High recycling rate

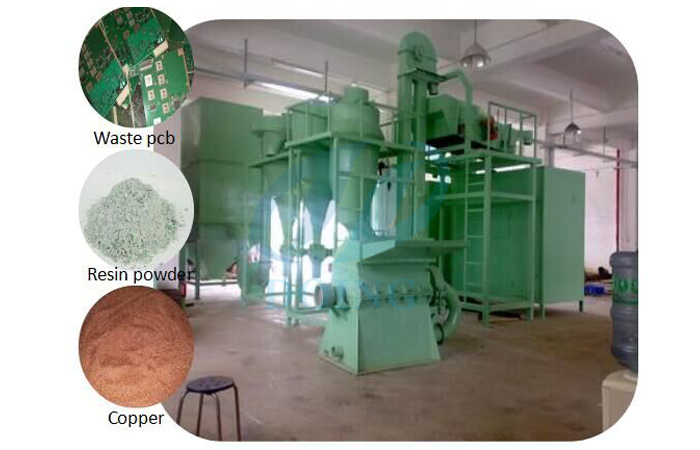

PCB board recycling machinePCB board recycling machine

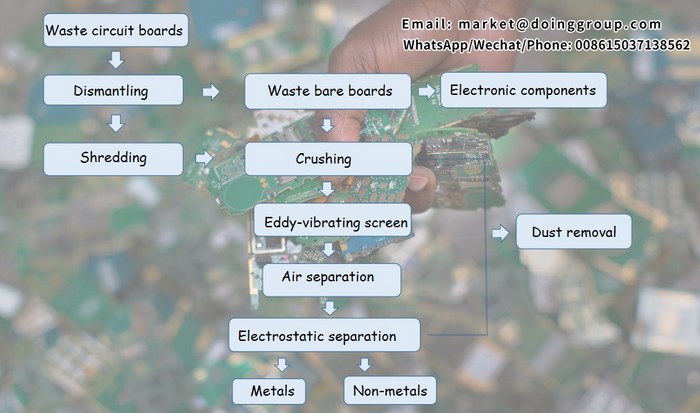

PCB board recycling machine adopts dry type physical separation method to process waste circuit boards. The whole process includes shredding, crushing, sieving and separating. Compared to the traditional ways, it will not use fire, water or chemicals, so that it will not damage the quality of metals. The waste circuit boards can be recycled 100%.

2, High separation rate

PCB board recycling machineComponents of PCB board recycling machine

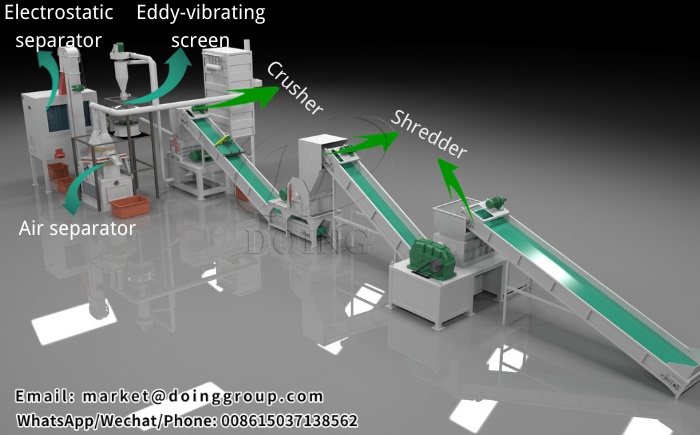

Henan Doing Environmental Protection Technology Co., Ltd's PCB board recycling machine usually consists of a shredder, crusher, eddy-vibrating screen, air separator and en electrostatic separator. The electrostatic separator uses the principle of different conductivities of different objects in the magnetic field to separate the metals and non-metals. The separation rate of PCB board recycling machine can reach to 99%. The higher purity of metals you get, the higher profit you get.

3, High working efficiency

Capacity(Kg/h)   Overall Dimension Power(Kw) Weight(Kg) Recovery Rate
100-150kg/h 8000*6000*4200mm 42kw 6000kg ≥99%
200-300kg/h 10000*6000*4200mm 76kw 7500kg
400-500kg/h 16000*8000*4200mm 95kw 8500kg
500-700kg/h 21000*9000*4200mm 140kw 10000kg
800-1000kg/h 24000*10000*4500mm 250kw 14000kg
1500-2000kg/h 28000*20000*5000mm 470kw 19000kg

Compared to the manual way to recycle circuit boards, PCB board recycling machine has a high working efficiency. It has different processing capacity, ranging from 100-150 kg/h to 3000-4000 kg/h, or even we can custom made according to your needs. So that it can process a huge amount of waste circuit boards within a short time, which can save a lot of time.

4, Easy to operate

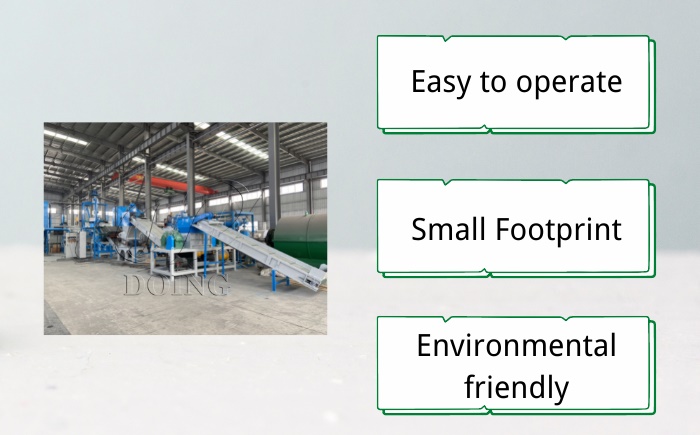

PCB board recycling machineAdvantages of PCB board recycling machine

PCB board recycling machine is equipped with PLC control system, so it is very easy to operate, just needs 1 or 2 worker to operate. The one worker is charge in putting the waste circuit boards into the machine. The other worker is responsible for observing the situation of separation.

Besides, PCB board recycling machine is environmental friendly, because its process is environmental friendly and it is equipped with a pulse dust removal system to collect the dust. And it is small footprint, just needs a small land to install it.

In summary, these are some reason why choosing PCB board recycling machine to recycle waste circuit board. If you want to know more information about PCB board recycling machine, welcome to contact us-Henan Doing Environmental Protection Technology Co., Ltd.
