Can high voltage batteries be recycled?

High-voltage (HV) batteries are recyclable. Primarily composed of lithium-ion cells, these batteries are typically utilized in applications such as electric vehicles and energy storage systems, characterized by their high capacity and high voltage. Once they reach the end of their limited service life, high-voltage batteries can—through appropriate recycling methods and equipment—not only be safely disposed of but also serve as a source for extracting valuable materials, thereby facilitating resource recycling.

However, the direct recycling of high-voltage lithium batteries is inadvisable. Safety is paramount in HV battery recycling, as their inherent high-voltage characteristics pose potential risks of electric shock or fire; consequently, preliminary discharge treatment is mandatory. The standard recycling process typically comprises the following steps:

High-voltage HV lithium battery recycling process

1. Safe Pre-treatment and Discharge: Using specialized discharge equipment, the residual electrical energy within the battery is safely released to prevent the risk of electric shock or fire during subsequent processing stages. This process typically involves soaking the battery in saltwater for two to three days until its charge drops to a safe level (below 2V).

2. Module Disassembly and Crushing: The discharged battery packs proceed to the disassembly stage, where specialized equipment is used to break them down into individual battery cells. Subsequently, these battery materials are fed into lithium battery recycling machinery for mechanical crushing. The crushing system pulverizes the materials into smaller particles, thereby preparing them for the subsequent material separation stage.

3. Material Separation and Enrichment: The crushed mixture undergoes separation using various techniques—such as physical sorting, airflow classification, and screening—to isolate components including plastic diaphragm, metal casings, and cathode/anode materials (black powder). The objective of this stage is to maximize the enrichment of valuable metals, thereby enhancing the overall efficiency of the recycling process.

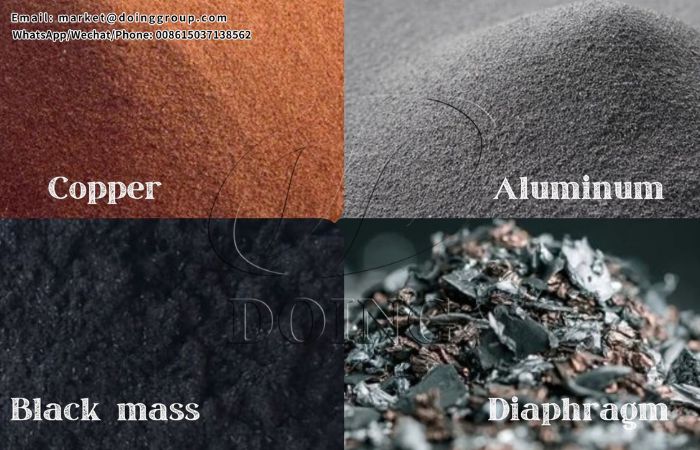

High-voltage HV lithium-ion battery recycling products

In this process, selecting reliable lithium-ion battery recycling machine is paramount. As a specialized manufacturer of lithium battery recycling machinery, Doing Company offers solutions designed for the efficient, safe, and eco-friendly processing of high-voltage batteries:

Efficient Processing: Utilizing advanced dry physical separation technology—augmented by automated control systems—our equipment is capable of efficiently and safely processing a wide variety of waste lithium-ion batteries, including HV lithium batteries.

Multi-Stage Crushing and Separation: Our crushing and sorting system achieves two key objectives: it precisely separates various constituent materials (copper, aluminum, plastics, and black mass), while simultaneously significantly boosting the overall recovery rate (exceeding 98%).

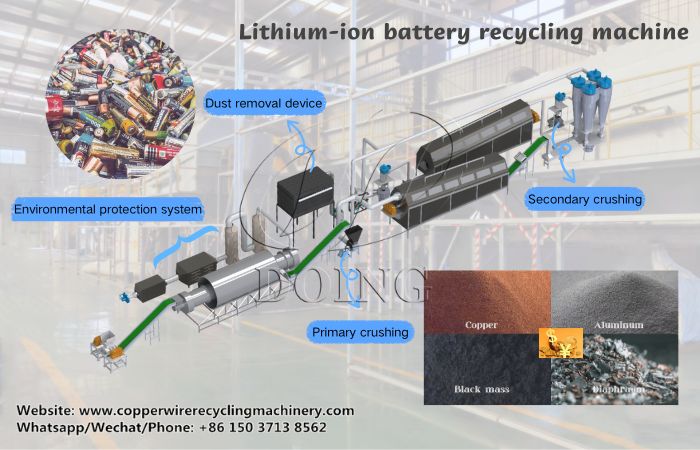

Battery recycling equipment crushing and sorting system

Eco-Friendly and Sustainable: To address potential dust and hazardous gas emissions generated during the battery crushing process, Doing’s lithium battery recycling equipment is outfitted with a specialized pulse dust removal system and exhaust gas purification units. The entire processing operation is conducted within a sealed, negative-pressure environment, ensuring zero dust leakage and guaranteeing that exhaust emissions meet regulatory standards—thereby fully complying with modern industrial environmental protection requirements.

If you are seeking a professional solution for high-voltage battery recycling, or if you have any inquiries regarding lithium-ion battery recycling machine, please do not hesitate to contact us. We provide not only high-quality machinery but also comprehensive pre-sales, in-sales, and after-sales support services.
