What is the circuit board recycling machine?

Date:2021-07-13 18:04:27/ FAQ / Chat Online/ Leave message

Circuit board recycling machine is also called e-waste recycling machinery. It can process all kinds of scrap circuit boards, like TV boards, computer boards, copper clad laminates, etc. By using it, we can get metals mixture and resin & fiber. Its separation rate is pretty high, which can reach to 99%. And its working efficiency is also high, just within several steps, you can get metals mixture and non-metals.

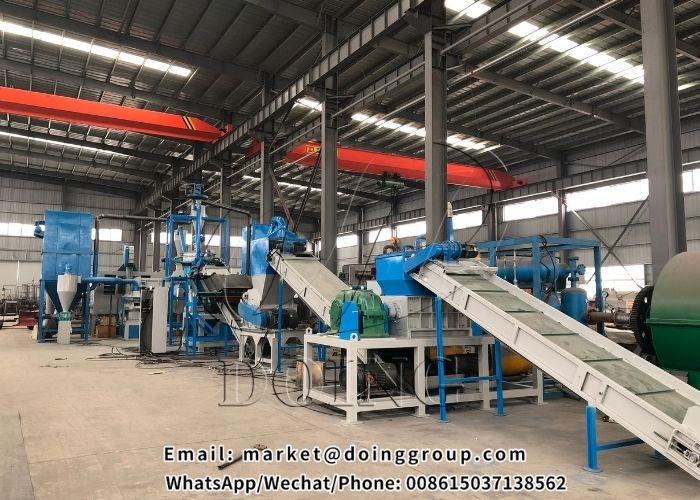

circuit board recycling machineCircuit board recycling machine

The whole process of circuit board recycling machine as follows:

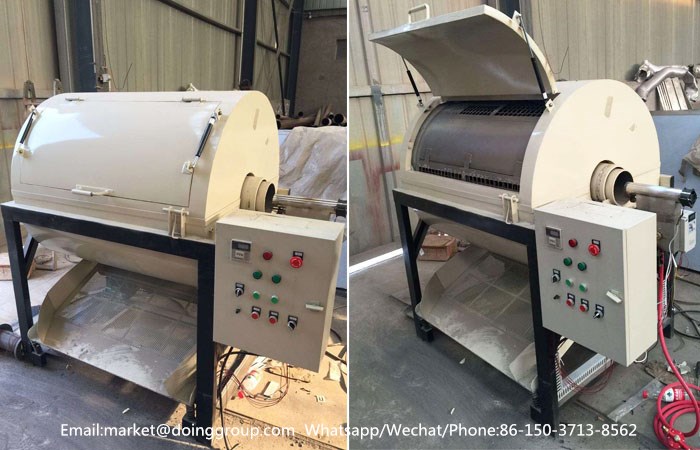

PCB dismantling machinePCB dismantling machine

Before using the circuit board recycling machine, a PCB dismantling machine is needed. Because there are many electronic components in the circuit board, which will affect the separation rate if not removing from the circuit boards. So the PCB dismantling machine will dismantle the electronic component through heating the tin.

The whole process adopts dry type physical separation method, including shredding, crushing, sieving, air separation and electrostatic separation. The scrap circuit boards will become to the mixture of metals particles and non-metals particles through shredding and crushing. Then the eddy-vibrating screen will sieving those bigger particle, and sent them back to the crusher to second-crush, until the bigger particles become enough small to through the eddy-vibrating screen. Then these small particles will be separated into metals mixture and non-metals by the air separator. The separation can be 97-98%. In order to get higher separation rate, these mixture of metals and non-metal will under second-separation by electrostatic separator. The electrostatic separator will separate them clearly according to their different conductivities in the magnetic field. The separation rate can reach to 99%. The whole process will not generate fire, water and chemicals. And during the process, we also have a pulse dust removal system to collect the waste dust, so it will not produce the waste air to the environment. It is a totally environmental friendly machine.

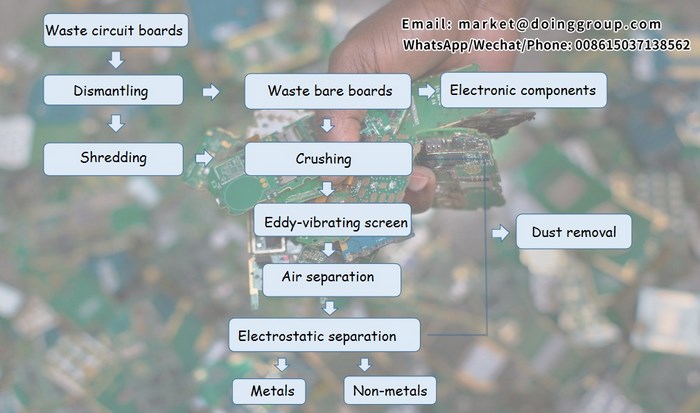

circuit board recycling machineProcess of circuit board recycling machine

circuit board recycling machine has many advantages. Except the advantages referred above, it also has advantages of easy to operate. It equipped with PLC control system, which only needs 2 workers to operate. And it is small footprint, because it is designed one-in-all, only need a small land to install. Besides, it is low cost, because it can save much money on labor and land.

Circuit board recycling is a new business in recent years. More and more people has began to realize its development potential. Some country’ s governments have also give their best support in E-waste recycling. With the development of E-waste recycling business, circuit board recycling machine has come into people’s view gradually. If you have interest in it, and want to know more information about the machine, you can contact us. Doing company has specialized in waste recycling machinery more than ten years, and we will give you our best support.
