Electrostatic separator

Date:2022-04-24 16:06:34/ Other Single Equipments/ Chat Online/ Leave message

Electrostatic separator is a device that uses high voltage electrostatic charges to separate crushed particles of materials by their different charges. It is also called electrostatic sorting machine.

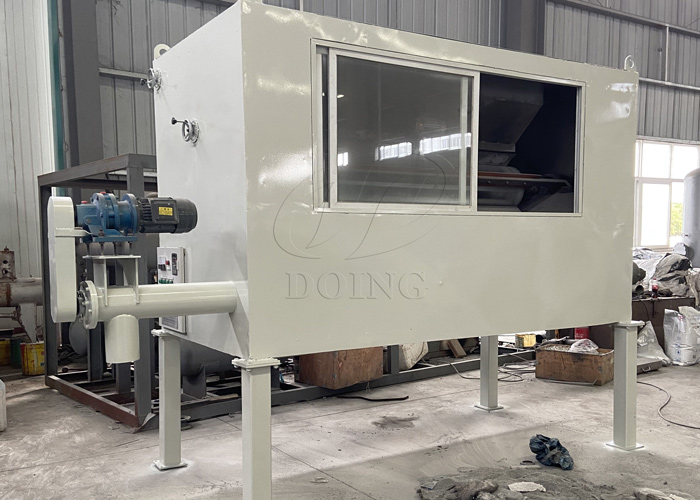

electrostatic separatorElectrostatic separator

Working principle of electrostatic separator:

Generally, electrostatic charges are used to attract or repel differently charged material. When electrostatic separation uses the force of attraction to sort particles, conducting particles stick to an oppositely charged object, thereby separating them from the particle mixture. Then through repelling force to change the trajectory of falling objects, to sort them into different places.

Application scope of electrostatic separator:

1. Metal extraction from mine;

2. Carbon extraction from coal ash;

3. Metal extraction from waste cable wires, PCB, aluminum composite materials, etc.

PS: All of the materials must be separated in a dry state, the water will affect the separation rate.

Specification of electrostatic separator :

Model Dimension Power Voltage Input size Weight
DY-1000 1800*1350*3500mm 3.6kw 20-60000V 0.01-4mm 1250kg
DY-1500 2300*1350*3500mm 5.5kw 20-70000V 0.01-4mm 1500kg
DY-1800 2650*1350*3600mm 7.5kw 20-80000V 0.01-4mm 1850kg

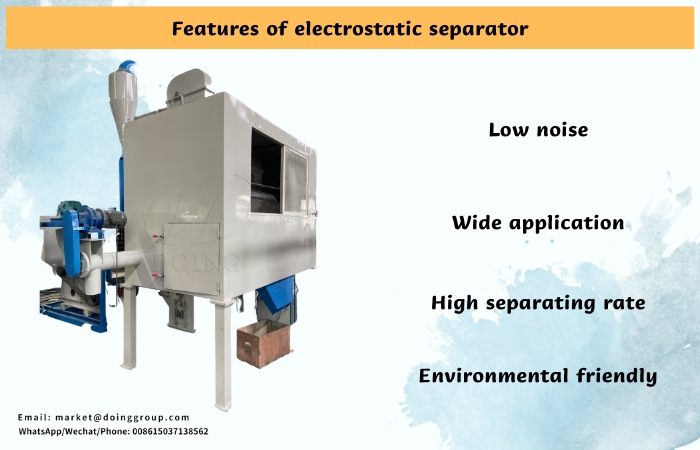

Features of electrostatic separator :

electrostatic separatorElectrostatic separator

1. High sorting rate: The sorting rate can reach to 99%;

2. Environmental friendly: Dry type physical separation method, no pollution to environmental;

3. Wide application: It can be used in mining, carbon extraction, metal extraction, etc;

4. Low noise: The decibel is below 85, which is meet the requirements of industrial area.

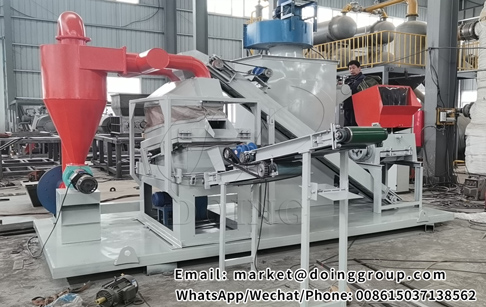

The electrostatic separator is widely used in our waste recycling machinery, such as copper wire recycling machine, PCB recycling machine, aluminum plastic separation machine, etc. Equipped with electrostatic separator, all of the machine's separation rate can reach to 99%. Welcome to contact us to get more information.
