Wood charcoal making machine

Wood charcoal making machine uses core pyrolysis technology to convert wood materials into charcoal. Whether it is forest management residues or wood processing waste, wood charcoal making machine can achieve efficient recycling.

Wood charcoal making machine

What is the core pyrolysis technology of wood charcoal making machine?

Wood is mainly composed of cellulose and lignin. The charcoal making process involves the pyrolysis of these organic substances in a high temperature and micro-oxygen environment. The charcoal making process mainly includes three conversions: 1. Wood is converted into charcoal; 2. Organic matter is converted into combustible gas; 3. Compounds are converted into wood vinegar and wood tar. The final products of these charcoal making machine are widely used in various industries.

Final products

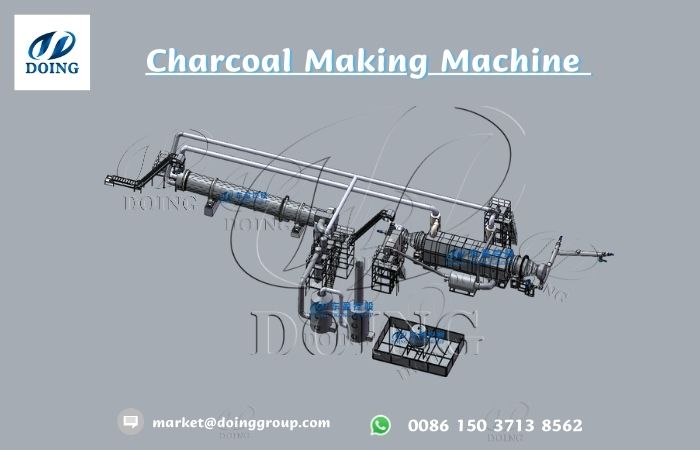

How to make charcoal with wood charcoal making machine?

Step 1: Wood materials pretreatment

Depending on the size and moisture of wood particles, determine whether it needs to be crushed and dried. It is recommended that the moisture content of wood is less than 15% and the particle size is within 30mm. If drying is required, the wood needs to be sent to a drum dryer and then to a wood charcoal making machine for high-temperature carbonization.

Step 2: Wood pyrolysis

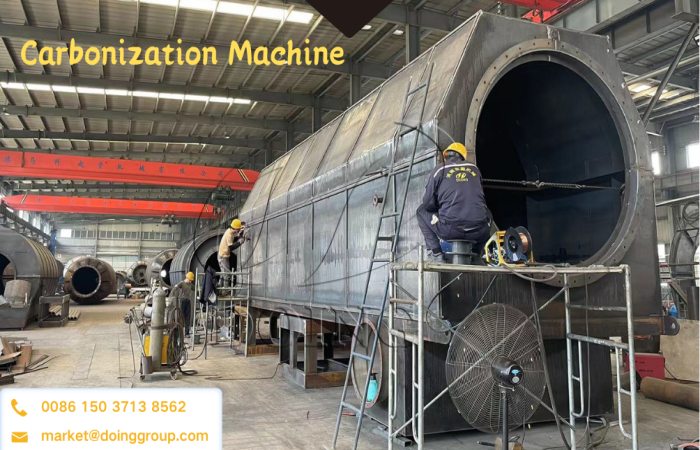

The pretreated wood enters the preheated biomass pyrolysis carbonization furnace through a belt conveyor. The reaction is carried out in a high-temperature micro-oxygen environment (400℃～600℃). The wood is removed from the internal moisture and organic volatiles in the furnace, and finally forms charcoal with a high carbon content. The products produced by the carbonization process are combustible gas, wood vinegar, tar, and charcoal.

Step 3: Utilization of combustible gas

The gas produced by the carbonization furnace is directly transported to the burner for combustion. A part of it is burned and catalyzed, and the remaining gas is heated and continues to provide heat for the wood carbonization furnace and drying furnace. After that, these gases are filtered and cooled and discharged through the chimney.

Step 4: Charcoal collection

The high-temperature charcoal coming out of the charcoal carbonization furnace enters the discharging system. The water cooling system exchanges heat with the high-temperature charcoal through cooling water to reduce the charcoal discharge temperature, and finally collects and stores the charcoal.

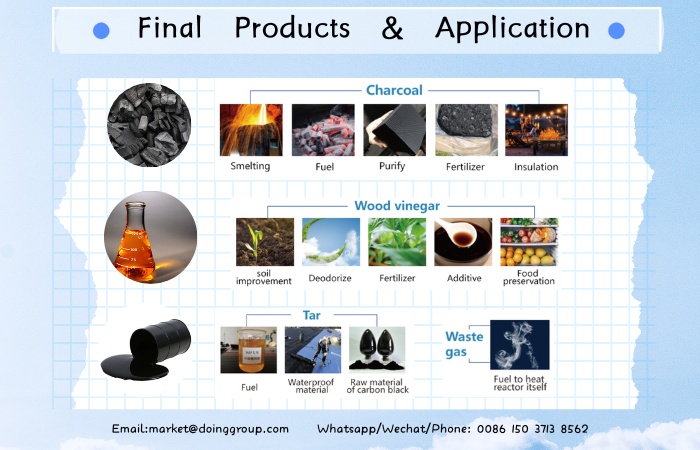

Application of the final products of the wood charcoal making machine

1. Household: Charcoal is an efficient household fuel that is widely used for heating, barbecue and cooking.

Wood vinegar can effectively remove odors from the home environment.

2. Agriculture: Charcoal can increase soil aeration and soil organic matter.

As a natural pesticide, wood vinegar has the effect of preventing and controlling pests and diseases.

3. Industry: Charcoal and combustible gas are used as efficient fuels in various heating and processing processes.

Charcoal is used as a reducing agent in the metallurgical industry to extract metals from ores.

Application of the final products

Advantages of DOING wood charcoal making machine

1. Continuous operation without downtime: The wood charcoal making machine can work continuously for 24 hours without stopping.

2. Safety guarantee: The PLC automatic control system is equipped with an alarm device. When some parts are damaged, the component will automatically alarm.

3. Greatly save fuel costs: The combustible gas generated by the wood charcoal making machine can be recycled to provide heat energy for the reactor. Choosing Henan DOING machine can save a lot of fuel costs.

4. Environmentally friendly design: The Henan DOING wood charcoal making machine has a dust removal system and a cooling system, which is an ideal equipment for environmental protection and pollution-free.

Wood charcoal making machine

As a manufacturer with more than ten years of history, Henan DOING Group Co., Ltd. has customized several wood charcoal making projects for customers. Our engineers can assist you in obtaining suitable and profitable projects. If you are interested in our wood charcoal making machine, please pay attention to our latest news and contact us in advance.
