Introduction of copper wire recycling machine
Copper wire recyling machine
Our copper wire recycling machine are used to recycle all kinds of automobile electric line, waste communication wire and other various wire and wire stripping machine is not suitable for processing all kinds of sundries wires, broken after the crushing process, high voltage electrostatic separation.
Copper wire recycling machinecan be used to separate the copper and plastic material.copper wire recycling machine belongs to a kind of environmental protection machinery equipment.
Copper wire recycling machine can completely separate the copper and plastic, and achieve the comprehensive utilization, has high economic benefit, and no dust, no secondary pollution.
Features of copper wire recycling machine
Copper wire recycling machine
After the waste wire and cable crushing process, automatic mechanical separation of copper and plastic to achieve waste recycling with high profitable. While no dust, no secondary pollution. In addition, the machine is integrally combined structure, easy installation & commissioning and transportation (After connecting with electricity, this machine can work continuously, all things that customer can do is only normal checking), stable performance.
1. Diameter Range of Wires Processed: 0.5-20mm.
2. Purity of Granules: 99%.
3. Mounted on common steel base for easy portability.
4. Easy to move, place and install.
5. Environment-frendly with dust collection system.
6. No water is needed for the processing.
Work process of copper wire recycling machine

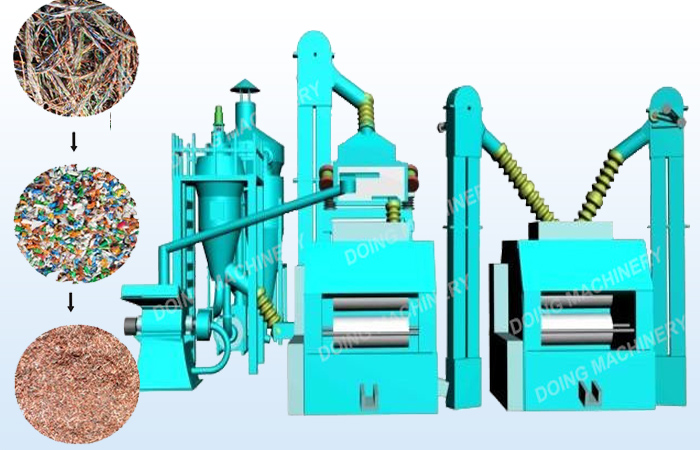

Copper wire recyling machine wroking process
When directly put into the machine, used cable is cut into granules first, during this process, copper and plastic is separated but mixed together, then the granules are sent to vibration device for separation, through wind blow and vibration, the copper and plastics are separated, then pure copper comes out from one side and pure plastic comes out from the other side, we collect the separated pure copper and plastic at last!
Applicatin of copper wire recycling machine
Copper wire recyling machine raw material
The copper wrie recycling machine suitable for copper wire, aluminum wire, electric wire, scrap miscellaneous line, wool yarn, car electric line, communication lines, cable, and other life miscellaneous line of recycling and processing equipment.
Technical data of copper wire recycling machine
|
Model |
Voltage |
Power |
Capacity |
Dimension |
Weight |
|
DYLS-400 |
380V |
22.45 kw |
150-200kg/H |
2700*1900*2300(mm) |
1200kg |
|
DYLS-600 |
380V |
36 kw |
300-400kg/H |
3500*1900*2700(mm) |
3000kg |
|
DYLS-800 |
380V |
75 kw |
500-600kg/H |
5500*4500*3300(mm) |
8000k |
