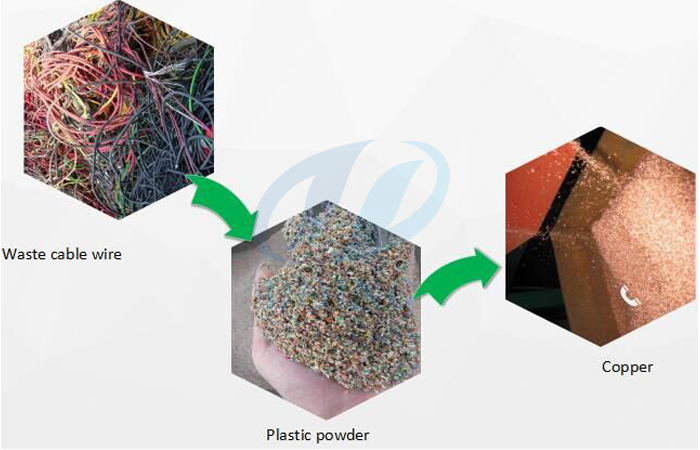

Cable wire recycling machine are mainly used to recycle all kinds of waste cable wires, the raw materials will be separated into tiny copper rice and PVC, the applicable range of the wires diameter from 0.3 mm to 20 mm, such as automobile electrical route, car bottom lines, motorcycle electric line, computer case line and communication cable, etc.

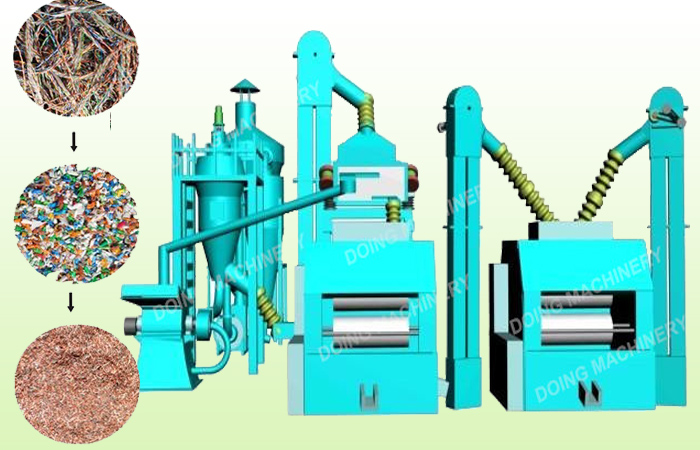

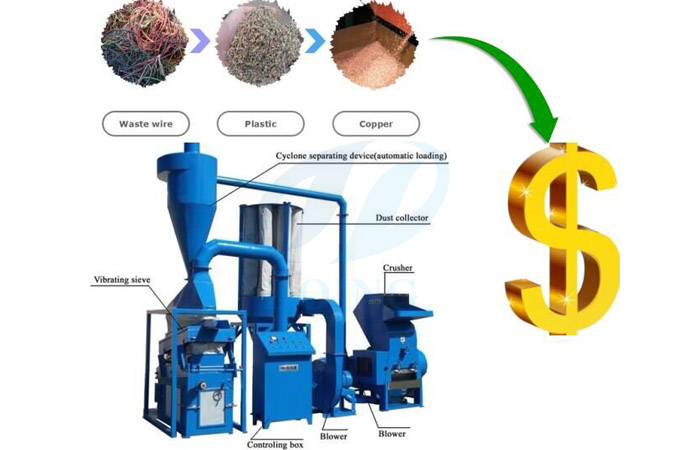

For larger capacity, the cable wires raw materials will be firstly put into the shredder, then go into crusher to get the small pieces wires, then our pulse air separator machine will make the copper and plastic suspended on the screen to separate the Copper from the plastic by weighting method and the friction force which produced by the Surface of the mesh. To improve the purity and capacity, the rest materials will be go into our high voltage electrostatic separator. ThisCable wire recycling machine/plant model system including the first crusher, pulse air separator, dust and fiber collection system and high voltage electrostatic separator.
Feature of Cable wire recycling machine
Cable wire recycling machine
1. The pre-shredder can handle connector, big plugs, metals and other hard materials. The Cable wire recycling machine/plant can reverse rotating when blocking to ensure smooth production.
2. The second crusher has the function of auto braking. When it is over current, the conveyor will automatically stop.
3. The whole process adopts air and vibrating separation. There is no need of water and the dust will be fully collected. There will be no pollution.
4. The Cable wire recycling machine/plant will be controlled by PLC with star and stop buttons on it. It will work accurately and precisely.
Working process of Cable wire recycling machine

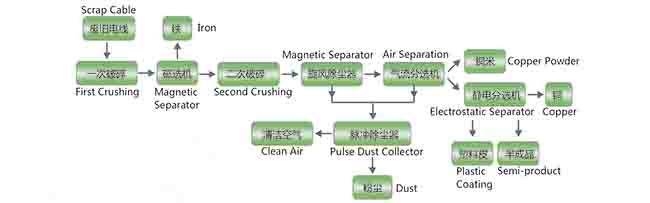

Cable wire recycling machineworking process
1. Starting
Please make sure all the machines and electrical equipments are in good condition. Then start the machine, and keep the machine running unloaded for 5-10 minutes before feeding.
Attention：
Boot sequence: suction fan1→suction fan 2→blower-feeding blower →riddler→mainframe.
Shutdown sequence: Riddler→blower→suction fan1→suction fan 2→feeding blower→mainframe
2. Feeding
Before feeding, pick up the debris especially the iron from the wires in case of the damage to the crusher blades. During the feeding period, the feeding speed should be in accordance with the crushing speed.
3. Fine crushing
If there is any abnormal noise, please stop and check the crusher, or change different size screen.
If there is too much copper or the produced particles are relatively small during the production process, replace the screen and adjust the distance between the fixed knife and the moving one.
If the machine is easy to overheat, stop the device and inspect
Benefit s of Copper wire recycling machine
Cable wire recycling machine
1.High product purify: the copper purify produced by copper wire recycling machine can be up to 99.5%. Regrinding makes sure that the copper and the plastic are separated completely.
2. High automatic degree, energy saving, environmental protection.
3. Suitable for almost all kinds of cables.
4. Adapt to bad working environment, long service life.
5. Good environmental benefit: it is equipped with advanced dust removal system. No dust, no secondary pollution.
