New product copper wire recycling machine

Copper wire recycling machine introduction:

Copper wire recycling machine is used for separating copper and plastic from waste copper cable wires or aluminum cable wires. The working theory is to sort copper from waste cable wires via dry production and environmental protection way.

Copper wire recycling machine application:

copper wire recycling machineRaw materials

Copper wire recycling machine has wide application in many fields, such as scrap automotive or old vessel circuitry, telecommunication cable wire, kinds of civil wires, computer or laptops circuitry or wire, abandoned or junk wires or cable, etc.

Copper wire recycling machine workflow:

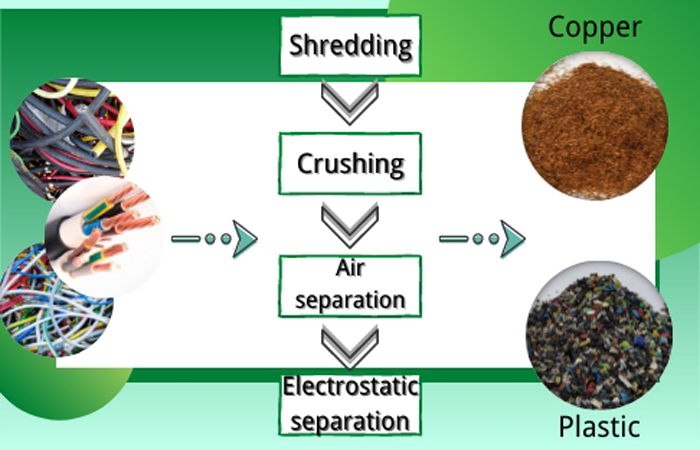

copper wire recycling machineWorkflow of copper wire recycling machine

1. Shredding - Shred waste cable wires into small pieces;

2. Iron removal - Remove iron by magnetic separator;

3. Crushing - Crush small pieces into small particles;

4. Air separation - Separate copper from plastic by different gravity with separation rate of 97-98%;

5. Electrostatic separation - Separate copper from plastic according to different conductivity of separation rate of 99%;

6. Dust removal - Pulse dust and cyclone dust removal system to collect the dust with the collect rate of 99%.

Copper wire recycling machine final products:

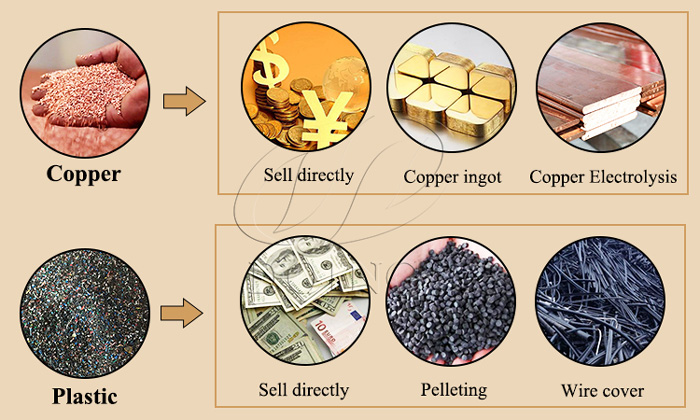

copper wire recycling machineFinal products

Copper: It can be sold in the metal trading market directly, or you can make new products, like copper ingots, copper Electrolysis, and then sell.

Plastic: As for plastic, it can be sold directly as well. Or you can pellet the plastic into other products, like wire cover, tray, blister sheet, etc.

Copper wire recycling machine feature:

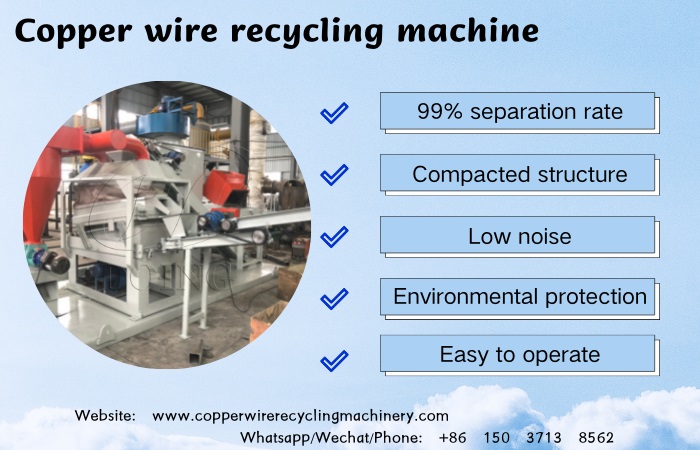

copper wire recycling machineCopper wire recycling machine feature

a. PLC control system, intelligent operation, and uniform feeding;

b. Dust removal system and dry physical separation method, no any pollution to the environment;

c. Compacted structure, easy to delivery and installation;

d. Double roller type, low rotating speed but large reverse space, high capacity but low noise, and simple operation;

Copper wire recycling machine effect:

(a) Economic effect: By recycling high purity and good quality of copper and plastic, which can bring high economic profit to us.

(b) Environmental effect: Dry type physical separation method, which is more environmental friendly than burning, wet type or chemical solution.

Copper wire recycling machine technical parameter:

Capacity (kg/h)Overall DimensionPower(Kw)Weight(Kg)Recovery Rate
100-150kg/h (DY-400)4000*2000*2300mm25kw1500kg≥99.9%
200-300kg/h (DY-600)5000*4000*2500mm38kw3500kg
300-400kg/h (DY-800)6000*5000*4200mm65kw4500kg
500-600kg/h14000*6000*4200mm100kw7000kg
1000kg/h18000*14000*4200mm210kw10000kg
2000kg/h28000*20000*5000mm300kw15000kg
