What should be paid attention to when purchasing copper cable granulator?

Date:Sep 23, 2021/ FAQ/ Chat online/ Get a free quote

Copper cable granulator is used for recycling scrap cable wires to separate copper and plastic through shredding or crushing, air separator or electrostatic separation process. With the development of the global economy, the copper cable wires are also increasing year by year, so copper cable granulator is widely used to recycle copper and plastic in the copper cable. When you plan to purchase copper cable granulator, you should be paid attention to environmental protection, the separation rate and after-sale service of the granulator except for budget, quality and brand, etc.

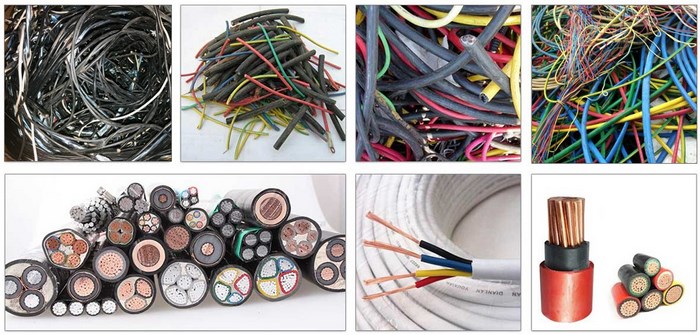

copper wire granulator machineWaste cable wires

1. The degree of environmental protection of the granulator

There are two main kinds of separating methods to recycle copper and plastic in cables, including water separation and dry physical separation.

(1) Separating copper by water

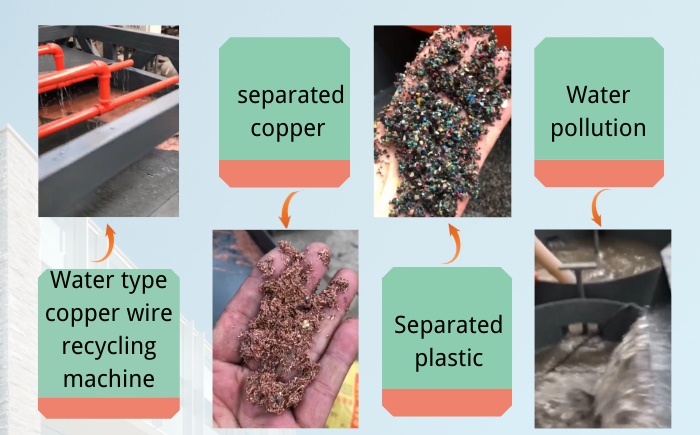

copper wire granulator machineWater type copper cable granulator machine

Separating copper by water is to crush the copper cable and separate the copper with a gravity shaker. The entire process need to add water persistently. Though it can separate copper and plastic at a large extent, it will cause secondary pollution to the environment for making industry waste water.

(2) Dry physical separation

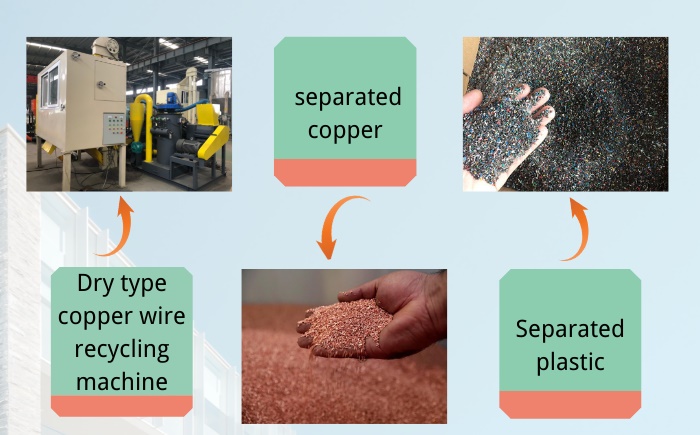

copper wire granulator machineDry type copper cable granulator machine

Dry physical separation copper cable granulator is taking advantage of air separator and electrostatic separator to separate copper and plastic in cable wires. This granulator can separate good quality copper, and the separation rate is up to 99%. The entire process does not consume water and also would not pollute water. So, compared with separating copper by water, choosing dry physical separation copper cable granulator would be the best choice when you plan to purchase copper cable granulator.

2. The separation rate

The separation rate refers to the copper separation rate. If the separation rate is low, then the recycling rate would be correspondingly low. Thus, you can not get profits by selling copper, but also waste many raw materials. So when purchasing copper cable granulator, DOING remind that you should be paid attention to the separation rate of the copper cable granulator.

Capacity(Kg/h) Overall Dimension Power(Kw) Weight(Kg) Recovery Rate
100-150kg/h (DY-400) 4000*2000*2300mm 25kw 1500kg ≥99.9%
200-300kg/h (DY-600) 5000*4000*2500mm 38kw 3500kg
300-400kg/h (DY-800) 6000*5000*4200mm 65kw 4500kg
500-600kg/h 14000*6000*4200mm 100kw 7000kg
1000kg/h 18000*14000*4200mm 210kw 10000kg
2000kg/h 28000*20000*5000mm 300kw 15000kg

3.After-sale service

After-sale service contain installation, evaluation, maintenance and worker training. If the copper cable granulator manufacturers would not provide these elemental service, the granulator would not run stably and safety when you confront questions of operations and have no idea to solve. Especially the worker training. The more skilled the workers are at operating the machines, the safer and more stable the production will be, thus ensuring the efficiency and quality of production.

After years of research and improvement, DOING company's engineers developed the dry physical copper cable granulator with a separation rate of up to 99.9%. DOING's machines have been exported to more than 90 countries and are well received by our customers. DOING's equipment meet customer environmental protection needs. In addition,We provide design, manufacturing, sales and after-sales service for every customer. Ensuring every customer get better production equipment.
