Waste copper cable recycling equipment brief introduction
Waste copper cable recycling equipment
Waste copper cable recycling equipment is a kind of machinery used for recycling waste & scrap copper wire and cables, which diameter should be below 20mm, such as Automobile electric wire, Motorcycle electric wire,Computer wire ,Telephone wire and other various miscellaneous material cables, communication cables and wires, etc. The successful development of copper Cable recycling equipment greatly solves the pollution caused by burning scrap wires.copper Cable recycling equipment not only improves the quality of the recovery of copper,but also has the advantage of plastic recycling.
Waste copper cable recycling equipment main features
Waste copper cable recycling equipment
1.Twisted and tangled wires and cables can be directly fed into the machine.No need to classify the wires and cables!
2. Aluminum cable and wires can also be recycled by this machine.
3. 99.9% recycling rate. The whole process is controlled by PLC,including crushing, conveying, dust collecting, separating process.Can get copper granules and PVC plastic in the end automatically.
4.Low power consumption,reliable operation,cover small area,easy to operate and transport.
5.Eco friendly: Full sealing mode of production,all the dust is collected and no pollution.
6.No need water washing.
7.Fully automatic.It is best suited for customers who want to do efficient

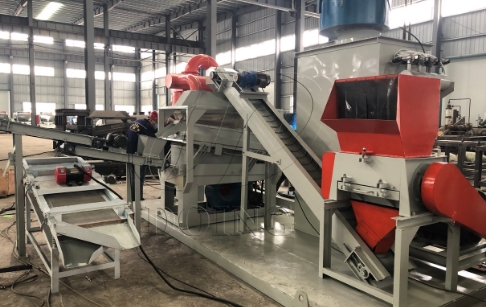

Waste copper cable recycling equipment Working principle
Waste copper cable recycling equipment
1.Feed the scrap wires and cables into the machine,they will be grinded into small granules.(Looks like grains of rice). During this process, copper and plastic are separated but mixed together.
2.Then through the wind separation and vibrating separation device, the copper granules will be separated from the plastic.
3.After separation,the pure plastic and pure copper granules will be discharged from different outlets.
Waste copper cable recycling equipment application
Waste copper cable recycling equipment raw material
Waste copper cable recycling equipment is specializing in all kinds of cables and wires such as auto-wires,communicate cables,telephone wires,computer wires and other mixed copper wires/cables which can not be processed by cable stripper machine.
Waste copper cable recycling equipment parameter
|
Model |
Voltage |
Power |
Capacity |
Dimension |
Weight |
|
DYTM-400 |
380V |
22.45 kw |
150-200kg/H |
2700*1900*2300(mm) |
1200kg |
|
DYTM-600 |
380V |
36 kw |
300-400kg/H |
3500*1900*2700(mm) |
3000kg |
|
DYTM-800 |
380V |
75 kw |
500-600kg/H |
5500*4500*3300(mm) |
8000k |
