Scrap copper cable granulator

Date:2016-12-02 11:04:42/ Copper wire recycling machine/ Chat Online/ Leave message

Scrap copper cable granulator Introduction

Scrap copper cable granulator is a kind of machinery used for recycling waste & scrap copper wire and cables, which diameter should be below 20mm, such as Automobile electric wire, Motorcycle electric wire,Computer wire ,Telephone wire and other various miscellaneous material cables, communication cables and wires, etc. The successful development of Scrap copper cable granulator solves the pollution caused by burning scrap wires.Cable recycling machine not only improves the quality of the recovery of copper,but also has the advantage of plastic recycling.

Scrap copper cable granulator featurs

Scrap copper cable granulator feature

1. The material of the waste wire can be telephone wire, household electric wire, automotive wire and cables, diameter should be 0.5-25 mm.
2. Just needing 1-2 workers to operate, labour-saving, small land occupancy and investment 3. Combines many processions into one, the whole process is controlled by PLC, including crushing, conveying, dust collecting, separating process. It can recycle both the copper granule and PVC plastic. 4. Can separate the copper granule from the plastic by the winding separation and the vibrating separation at last. The copper purity can be 99.9%
5. No need water during the whole process, no dust, no environmental pollution.

Scrap copper cable granulator work process
1. Starting:
Please make sure all the machines are in good condition. Before getting started, please keep the machine unloaded running for 5-10 minutes.
2. Feed inlet
Please clear up iron from the mixed cables, avoiding damage to crusher blade.
3. Fine crushing
If there is any abnormal noise, please stop and check the crusher. Change different size screen, if the copper granule is too fine or too much copper without separating from plastic
4. Vibrating separator
After curshed, the mixed material will be delivered to vibrating device. The copper fro vibrating separator is complete copper without plastic,while the copper clad from the opposire discharging hole needs to be second crushed.

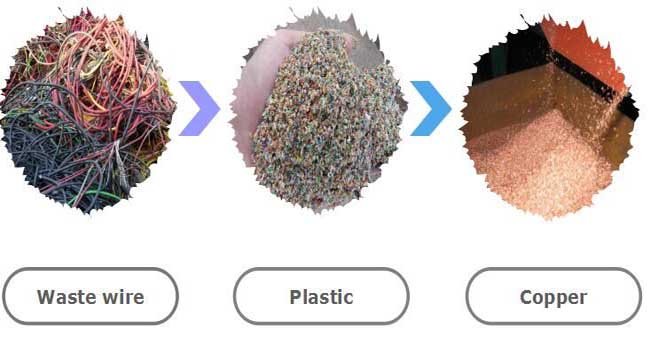

Scrap copper cable granulator flow chart

Scrap copper cable granulator flow chart

Scrap copper cable granulator Technical Parameters

Item	Model	Capacity(kg/h)	Power(Kw)	Size (m)(LWH)	Weight(T)	Remark
1	DY-400	100-200	28.5	3.5×1.5×3.0	1.8
2	DY-600	300-500	36.5	4.0×1.7×3.0	3.0
3	DY-800	500-800	90.0	4.5×1.5×4.2	7.7	Doubling crushing system
4	DY-1000	800-1000	104.2	4.8×1.8×4.2	9.4	Doubling crushing system
