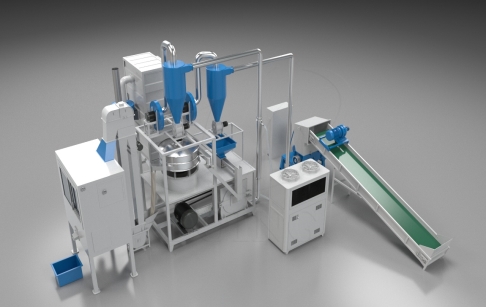

Plastic and aluminum recycling machine for sale
Plastic and aluminum recycling machine designed by Henan Doing Mechanical Equipment Co., Ltd is specially for separating plastic and aluminum of aluminum plastic composite materials through new type and green technology. The process include crushing, grinding, water cooling, rotarty vibrating screen and electrostatic separation, a dry type physical separation way, no water, no chemical, no fire, totally pollution-free. The separation rate of our plastic and aluminum recycling machine could reach to 99%, and the separated plastic and aluminum could be directly recycled to be sold in the market or made into new products. Compared to low value scrap and waste aluminum plastic composite materials, the recycled pure plastic and aluminum would bring high benefit. It makes the plastic and aluminum recycling machine a good business to start with.
- WhatsApp:
+86 135 2669 2320
- Tel:
+86 135 2669 2320
- Phone:
+86 371 5677 1821
- Email:
market@doinggroup.com
- Skype:
bonniezhao2
Input Material - plastic and aluminum recycling machine
What's the aluminum content in different materials?
The plastic and aluminum recycling machine applys to process many kinds of aluminum plastic composite materials, such as aluminum-plastic medical blister packs, aluminum plastic composite panels, aluminum-plastic tubes, pipelines, and aluminum-plastic packages, films, etc. Below are 4 types typical aluminum-plastic composite mateials, in which shows the aluminum content separately.
-
12-70%
Medical blister packs
-
10-35%
Aluminum-plastic panel
-
20-25%
Aluminum-plastic pipe
-
16-35%
Aluminum-plastic flim
Running video - plastic and aluminum recycling machine
Working process of plastic and aluminum recycling machine
From this video, you could check how plastic and aluminum are separated from scrap aluminum plastic composite medical bliter packs through a crushing, grinding and separation process. This machine in the video is also called as medical blister pack recycling machine, but also used for the other aluminum plastic composite materials.
Specification - plastic and aluminum recycling machine
| General Model | Capacity (kg/h) | Power(kw) | Dimension (mm) | Weight (kg) | Separation Rate |
| DY-300 | 200-300 | 70 | 7500*6000*4200 | 6500 | ≥99% |
| DY-600 | 500-600 | 115 | 9500*7500*4200 | 7800 | |
| DY-800 | 700-800 | 215 | 11500*8000*4200 | 12800 |
Advantages - plastic and aluminum recycling machine
-
Fully automatic PLC control
The whole process of our plastic and aluminum recycling machine is under PLC control, fully automatic, easy to operate.
-
High voltage electrostatic separation
The aluminum plastic separation process adopts electrostatic separation technology, dry type physical separation method, no fire, no water, no chemical, totally clean and pollution-free.
-
Water cooling for high separation rate
The crushing and grinding process working with water cooling system, which avoid high temperature generated to make plastic melted and stick on aluminum, ensure the high separation rate.
-

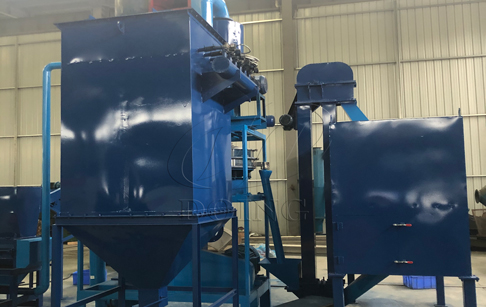

High efficiency pulse dust collector
The plastic and aluminum recycling machine is equipped with pulse dust collector, which could make sure a clean working environment without dust fly around.
Economic benefit analysis of plastic and aluminum recycling machine
- Raw materials: Raw materials: ordinary waste aluminum plastic plate, medical blister packs,aluminum content is about 20%, (different aluminum-plastic composite materials, different aluminum content)
- Processing capacity: 300kg/h, 8 hours a day
- Power consumption: 46kw / H
- Worker: 2 workers
- Global raw materials prices are roughly the same, taking the Chinese market as an example to make a profit analysis.
| Running cost / Day | |||||
| Item | Input | Quantity | Price($) | Input cost($) | Total cost($) |
| 1 | Waste medical blister packs | 300kg/h*8h=2.4T | 357.14 | 857.14 | 952.57 |
| 2 | Power consumption | 46Kw/H*8H=368KwH | 0.14/KwH | 52.57 | |
| 3 | Workers | 2 workers | 21.42/Day | 42.86 | |
| Income / Day | |||||
| Item | Output | Quantity | Price($) | Income($) | Total income($) |
| 1 | Aluminum | 2.4T*20%=0.48T | 1517.43 | 754.29 | 2070.86 |
| 2 | Plastic | 2.4T*80%=1.92T | 658.71 | 1316.57 | |
| Daily profit = daily income - daily cost=2070.86-952.57=1118.29($) | |||||
-
200-300kg/h medical blister recycling machine sold to Taiwan
In August last year, customers from Taiwan visited our company. After comparing and testing the waste medical blister rec...
Aluminum plastic separation machine
Cost effective aluminum plastic separation machine recycle aluminum plastic composite panel, scrap soft packing bags, toothpaste tube and other waste aluminium plastic materials to aluminum and plastics.
