Circuit board recycling machine

PCB ( printed circuit board ) recycling machine for sale

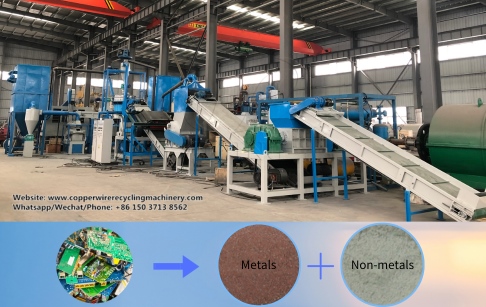

With 16 years' engineer experiences, Henan Doing Mechanical Equipment Co., Ltd will provide you the best solution for PCB recycling with 99.9% recovery rate. The PCB recycling machine adopts dry type physical separation methods to get scrap PCB boards shredded or crushed at first, then separate the metals and nonmetals through air separation and electrostatic separation process, equipped with dust collecting system. The whole PCB recycling process is totally clean and environmental friendly, no fire, no water, no chemical.

What's in PCB that could be recycled?

From the research for normal PCB boards, in which the percentages of the electronic components, base board and soldering tin are 58%, 37% and 5% separately. And for every one ton base boards, it include about 40% metal materials and 60% nonmetals, which contain almost all the common elements in periodic table. By estimate, for 1 ton computer circuit boards, it contains 0.5kg gold, 130kg copper, 10kg iron, 60kg Plumbum, 40kg tin, 36kg nickel, 40kg antimony and some other rare precious metals, like Platinum, palladium, etc.
  • Precious metals

    40%

    Precious Metals

  • Resin and fiber

    60%

    Resin and Fiber

PCB component

Every one ton PCB (printed circuit board)

Contain 0.5kg gold, 130kg Copper, 60kg Plumbum, 40kg Tin, 36kg Nickel, 40kg Antimony and some other rare precious metals, like Platinum and Palladium, the left are resin and fiber.

What do we have for recycling PCB?

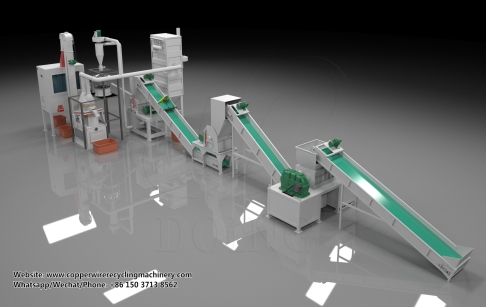

As a manufacturer specialized in waste management, Henan Doing Mechanical Equipment Co., Ltd has been working to improve the technology for recycling PCB, which is one of the most important part of electronic waste. In the old times, PCB boards were just easy disposed by fire burning or chemical processing which caused bad pollution to the air and serious damage to humanbeing's life. After years' research, we realize that scrap PCB boards could be directly recycled through clean and physical process. The new type PCB recycling machine developed by us is totally environmental friendly, and could be operated under PLC control system with compact stucture. Our PCB recycling process include shredding, crushing, rotatory vibrating screen, air separation and electrostatic separation with vaccum feeding and pulse dust collector, which could be adjusted according to order.

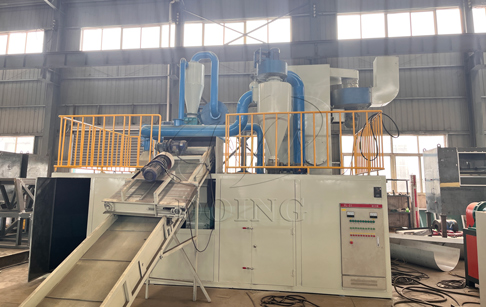

  • PCB recycling machine

    Compact integrated type design

  • Circuit board shredder

    Shredding and hammer-crushing methods

  • PCB recycling plant

    Fully Automatic PLC control system

  • PCB dismantling machine

    Predismantling for electronic components

  • Air separator and electrostatic separator

    Air and electrostatic separation methods

  • Pulse dust collector

    Vacuum feeding & pulse dust collector

What benefit you can get?

With the PLC control system, it could make the PCB recycling machine fully automatic with stable performance, easy to operate. And the PCB recycling machine is designed with integrated type compact structure which could save land occupy size and easy to install. Further with the on-the-spot installation, commissioning and operation training service, it would avoid your trouble on installation and operation. During PCB recycling process, PCB would be firstly shredded or crushed, then sieved by rotatory vibrating screen and separated through air separation and electrostatic separation, which could achieve the recovery rate to 99.9%.
  • Circuit board recycling machine

    precious metal loss

    less than

    1%

  • PCB recycling machine

    stable perfprmance

    continuous running

    7/24

  • PCB board recycling machine

    integrated design

    installation trouble

    zero

What's the PCB recycling machine specification?

Model Power (kw) Recovery Rate (%) Capacity (kg/h) Dimension (mm) Weight (kg)
DY-1000 45 ≥99% 150-200 6000*7500*4200 4250
DY-1500 68 200-300 7000*8200*4500 6500
DY-1800 110 300-500 8000*11000*4800 8500
DY-2000 198 1000-1200 8200*16000*5250 12500
More capacities of the PCB recycling machine could be made according to order. Welcome your consultation.

What's the PCB recycling process?

Running video of PCB recycling machine

From the video, you could check how scrap PCB boards are put into the PCB recycling machine and to be crushed and separated to get precious metals and resin fiber extracted.

What's the PCB dismantling process?

Running video of PCB dismantling machine

From the video, you could check how the PCB boards with electronic components are pretreated to get electronic components removed from PCB base boards, thus to make the PCB base boards further processed by PCB recycling machine.

Economic benefit analysis of PCB recycling machine

  • Raw materials: normal PCB boards, containing about 18% of metal (different types of waste circuit boards, different copper content, like computer and TV circuit boards, metal content up to 30-40%)
  • Processing capacity: 500Kg / h, 8 hours a day
  • Power consumption: 72kw / H
  • Worker: 2 workers
  • Global metal prices are roughly the same, taking the Chinese market as an example to make a profit analysis.
Running cost / Day
Item Input Quantity Price($) Input cost($) Total cost($)
1 Waste circuit boards 500kg/h*8h=4T 857.14/T 3428.57 3552.43
2 Power consumption 72Kw/H*8H=567KwH 0.14/KwH 81
3 Workers 2 workers 21.42/Day 42.86
Income / Day
Item Output Quantity Price($) Income($) Total income($)
1 Metals 4T*18%=0.72T 7142.86/T 5142.86 5611.43
2 Resin fiber 4T*82%=3.28T 142.86/T 468.57
Daily profit = daily income - daily cost=5611.43-3552.43=2059($)

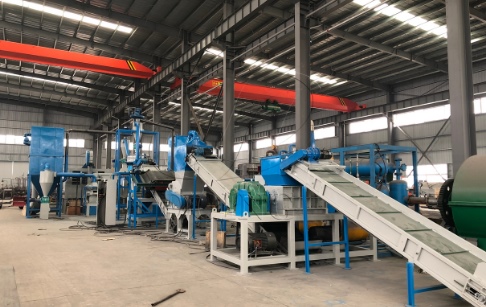

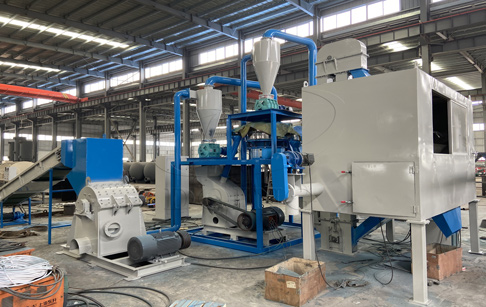

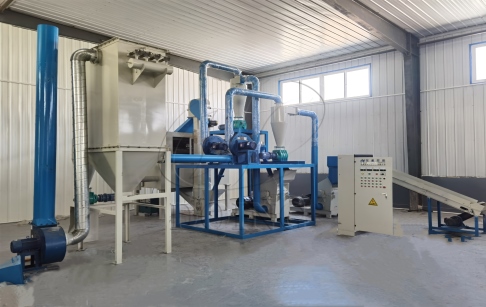

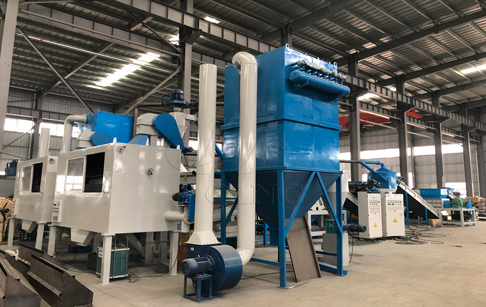

Project Case - PCB recycling machine

Printed circuit board recycling machine

Printed circuit board recycling machine

Printed circuit board recycling machine is a kind of e waste recycling machinery, which is specially designed for separating the precious metals from resin and fiber for recycle use.
