cable wire recycling
machine
Factory direct supply / Quality guarantee / Good service
Raw materials & Products
Cable harness
Electric wire
Power cable
Copper wire
Aluminium
wire
Vehicle
wiring
Armoured
wire
Headphone
cable

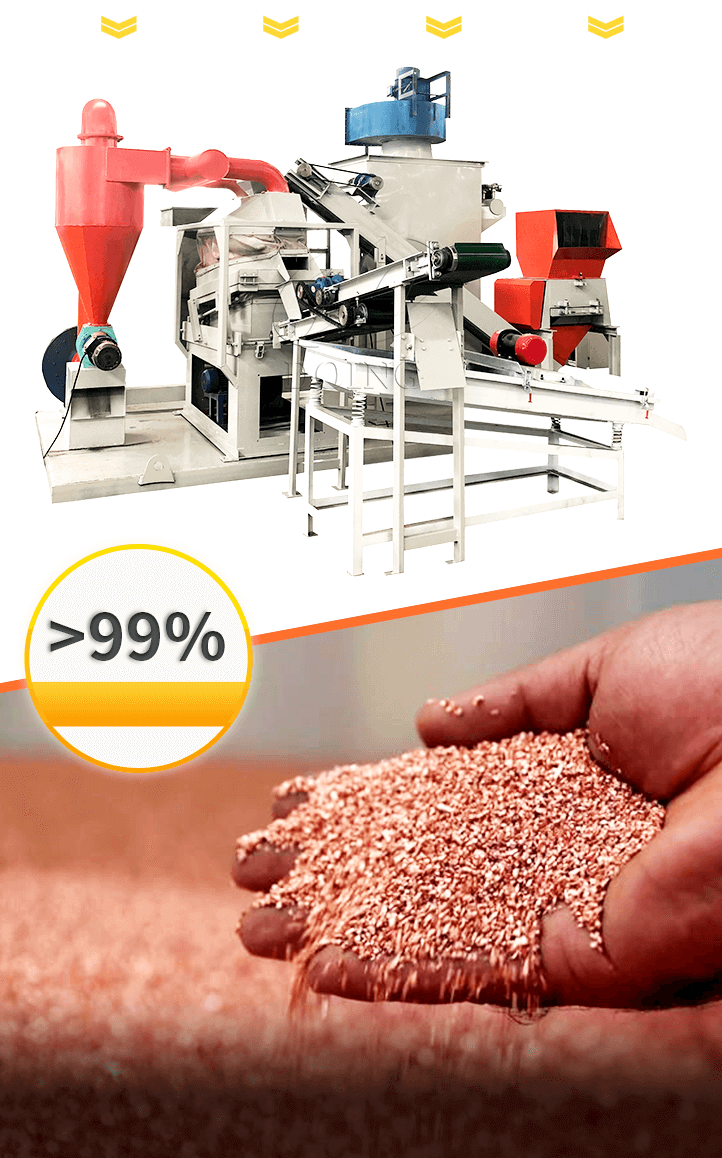

The separation rate
Cable wire recycling machine adopts dry type separation methods, which can recycle various waste cable wires to get copper and plastic.
Machine List
-

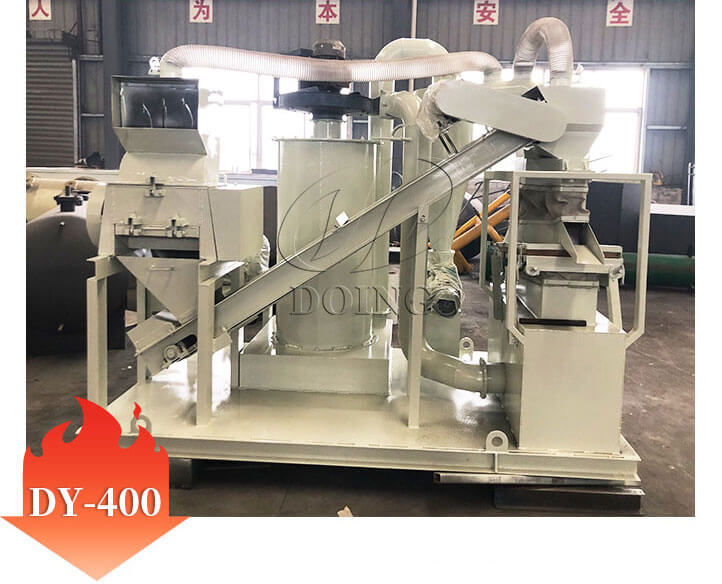

Type 1: DY-400 Cable Wire Granulator Machine
Processing Capacity: 100-150kg/h
Processing Raw Materials:
waste cable wires with diameter below 25mm
Easy to operate
Energy saving
Cheap
Advantages:
-

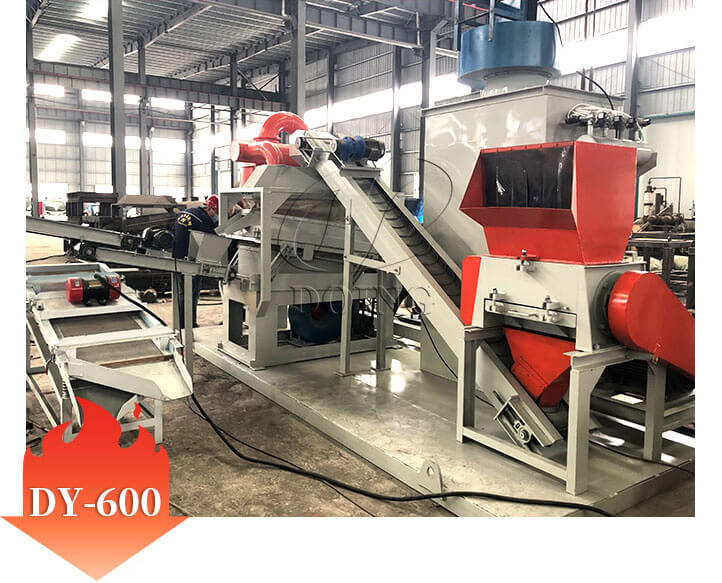

Type 2: DY-600 Cable Wire Granulator Machine
Processing Capacity: 200-300kg/h
Processing Raw Materials:
waste cable wires with diameter below 30mm
Environmental protection
High working efficiency
Cost-effective
Advantages:
-

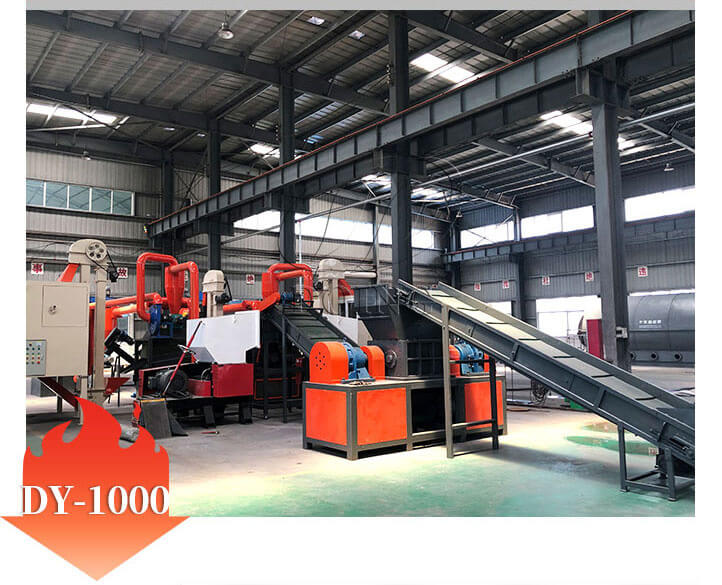

Type 3: DY-1000 Cable Wire Granulator Machine
Processing Capacity:
400-500kg/h、1t/h、2t/h、etc.Processing Raw Materials:
all kinds of waste cable wires
Large processing capacity
Support customization
Wide application
Advantages:
Tips: Engineers can customize proper solutions according to the character of raw materials you collected.
Contact us
Please kindly leave your needs in detail or contact us via +86 150 3713 8562. Our professional sales manager will contact you within 24 hours. Your contact information will be protected!
Equipment Details

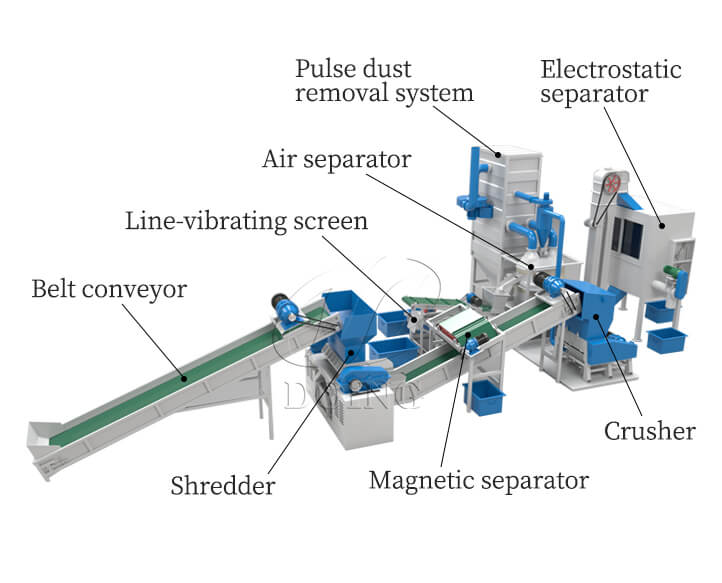

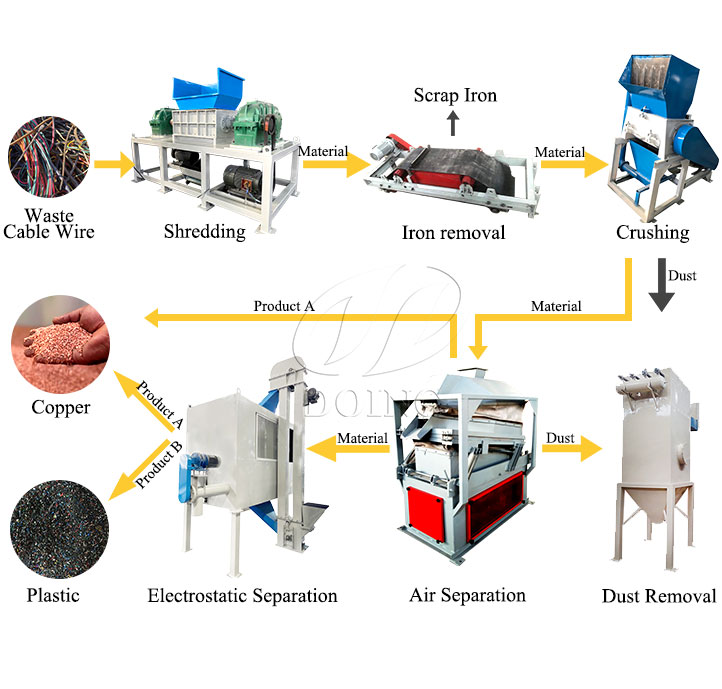

Working Process
3D Video Display
-
01
Use shredder/crusher to crush copper wire and cables into small granules.
-
02
Use air separator to separate copper and plastic by their different specific gravity..
-
03
If there are a lot of thin wires, equip electrostatic separator additionally to separate smaller copper and plastic for higher separation rate.
-
04
Collect the separated pure copper and plastic.
-
05
During whole process, pulse dust collector will collect the dust.

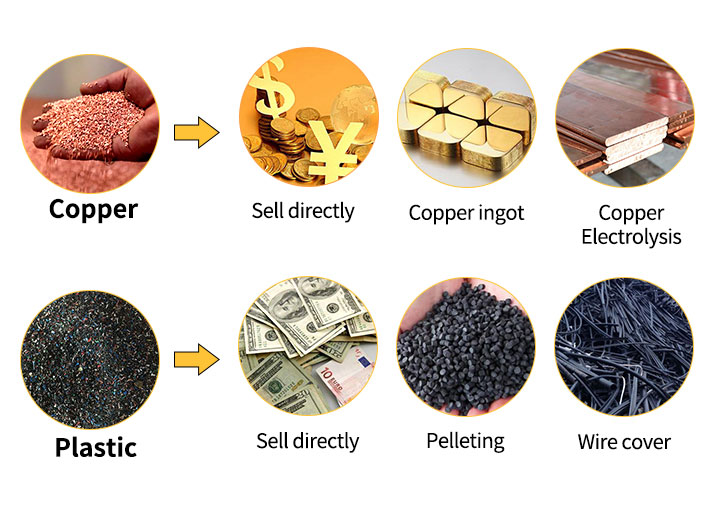

Products & Application
Profit Analysis
| Running cost / Day | |||||
| Item | Input | Quantity | Price | Input cost | Total cost |
| 1 | Scrap car wires | 500kg/h * 8h = 4T | USD3355 / ton | USD13420 | USD13522 |
| 2 | Power consumption | 65Kw/H * 8H = 520KwH | USD0.1/ KWH | USD52 | |
| 3 | Workers | 2 workers | USD25per one | USD50 | |
| Income / Day | |||||
| Item | Input | Quantity | Price | Input cost | Total cost |
| 1 | Copper | 4T*55%=2.2T | USD9422/ton | USD20728.4 | USD 20953.4 |
| 2 | Plastic | 1.8T | USD125/ton | USD225 | |
| Daily Profit = USD 20953.4 - USD 13522 = USD 7431.4 | |||||
The above table data is provided by our Chinese customer.
Due to different countries have different raw materials’ and final
products’ price, the above data is just for reference.
Contact us
Please kindly leave your needs in detail or contact us via +86 150 3713 8562. Our professional sales manager will contact you within 24 hours. Your contact information will be protected!
Equipment Advantages
-

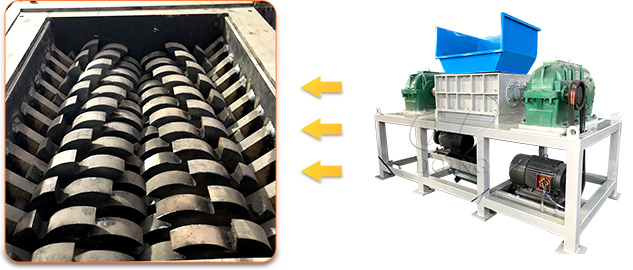

Double-shaft shredder:
● Good in blade material - H13 alloy
● High hardness, high toughness
● Longer using time than normal blade
-

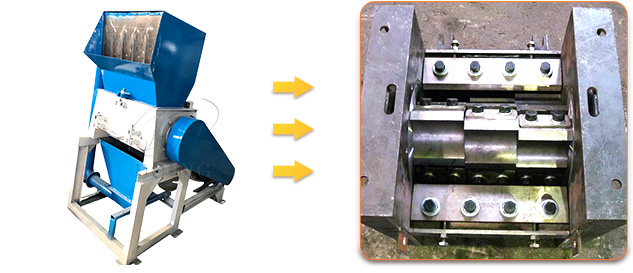

Crusher:
● Good in blade material - SKD-11 alloy
● High hardness - HRC58
● Good toughness, high wear resistance
-
Air separator:
● Adopt Italian air suspension principle
● High separation rate(97%-98%)
● Easy to operate with variable frequency control knob
-
Electrostatic separator:
● High voltage electrostatic separation technology
● High degree of automation
● High separate rate>99%
-

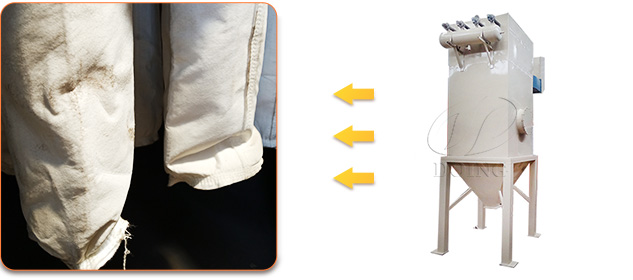

Pulse dust collector:
● With pulse valve can clean dust automatically
● High dust remove rate over 99.5%
Certificates
Patent Certificates
Quality Certificates
faq
-
Q
How is the separation rate? How is the purity of products?
A:The separation rate of ordinary configuration cable wire granulator is more than 97%. And the separation rate of complete configuratio wire granulator is more than 99%. The purity of copper is 100%, but there will be a little copper in the plastic.
-
Q
Is your equipment environmentally friendly?
A:DOING cable wire granulator is environmental protection equipment. It uses physical crushing and sorting technology, so there is no secondary pollution, water pollution or chemical pollution. And it also has dust removal system, whose dust capture rate is above 99%.
-
Q
Can aluminum wire be recycled and separated?
A:If it is only aluminum wire, it can be recycled and separated. If it is copper-aluminum composite wire, customer can send photo to us and our engineer will give the suitable equipment configuration solution based on it.
-
Q
Can I visit your factory?
A:Very welcome you to visit DOING factory. If you can't came because of something, we can provide online tour service of DOING factory.
Contact us
Please kindly leave your needs in detail or contact us via +86 150 3713 8562. Our professional sales manager will contact you within 24 hours. Your contact information will be protected!
Company profile
Henan Doing Environmental Protection Technology Co., Ltd affiliated to Doing Holdings Co., Ltd, lies in Zhengzhou, Henan Province, China. It is a comprehensive environmental protection equipment manufacturing enterprise integrating process design, technology research and development, manufacturing, sales and after-sales service.
Relying on excellent technical R&D strength and innovative spirit, our company has won up to 23 new utility patents and invention patents. And our company is honored as the National High Technology Enterprise awarded by the Municipal Science and Technology Commission.
Doing Factory is located in Industrial Park, Jiaozuo, next to Zhengzhou, covering an area of 20,000+m², displaying several sets of equipment prototypes. Customers are welcome to visit and test the machine with raw materials.
24/7 SERVICE
-
2000+
Our Customers
-
30+
Exporting Country
-
50+
Technical Engineer
-
20+
Professional
Installation Team -
100K+
The Intention
of Customers -
24H
Provide
Technical Support
main Products

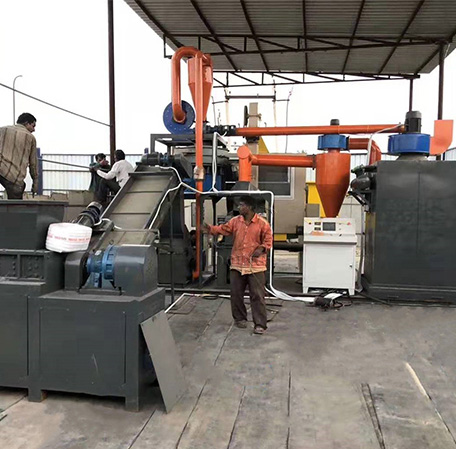

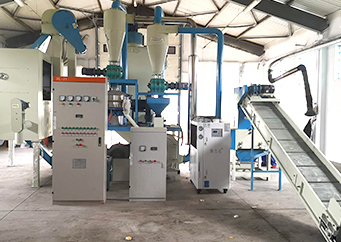

Project Cases
-
