Introduction of cable stripping machine
Cable stripping machine mainly used to recover a variety of wire and cable. Like scattered twisted silk, electronic wire,reticle,double core rubber insulated lead sheathed and armored cable,Hv insulation cortical cables etc it can easily strip. This greatly improves the separation efficiency of plastic copper.

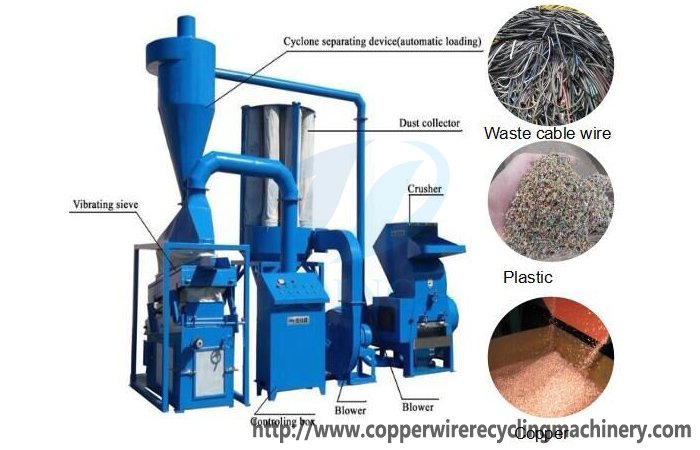

Cable stripping machine
1.Doing cable stripping machine is a kind of equipment that is used to crush waste wires and separate the copper wire from plastic. The separated coppers are just like grains of rice. Our cable stripping tool to environmental protection machinery!
2. The cable stripping machine is easy to install, debugging and transport, having good stability and high yield!
3. After separating, PE,PVC and copper are recycled with 99% purity.
Technical Data of cable stripping machine
|
Model |
Voltage |
Power |
Capacity |
Dimension |
Weight |
|
DYTM-400 |
380V |
22.45 kw |
150-200kg/H |
2700*1900*2300(mm) |
1200kg |
|
DYTM-600 |
380V |
36 kw |
300-400kg/H |
3500*1900*2700(mm) |
3000kg |
Raw materials of cable stripping machine
Raw material of cable stripping machine
Final products of cable stripping machine
Final products of cable stripping machine
The cable stripping machine has dry type structure, main used to all kinds of waste copper line will be separated into tiny copper rice and PVC, the applicable range of waste line diameter of 0.2mm to 20mm, automobile electrical route or car bottom line, motorcycle electric line, computer case line and communication cable, etc. After crushing processing and shock treatment, screen separation copper and PVC will be sorting out.
