Aluminum plastic separation machine

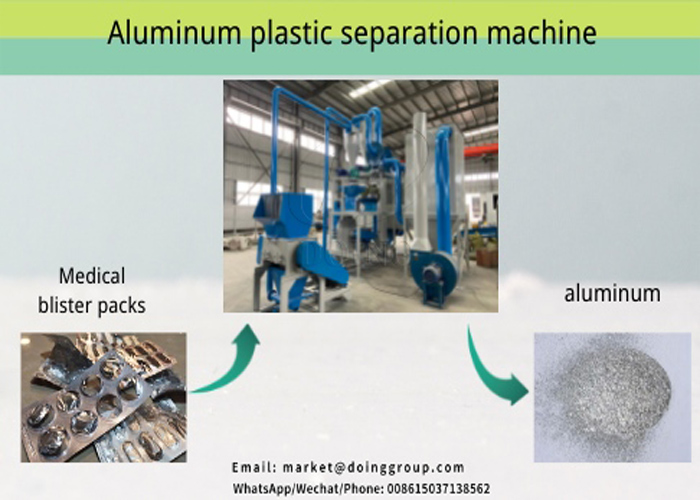

Aluminum plastic separation machine is used to separate the aluminum plastic composite materials like aluminum plastic composite panels, food packages, medical blister pack, etc. The aluminum plastic separation process include crushing, grinding, water cooling, eddy-vibrating screen and electrostatic separation. Through the separation process, aluminum and plastic can be recycled for reuse.

aluminum plastic separation machine Aluminum plastic separation machine

Application Scope of Aluminum Plastic Separation Machine:

Many kinds of aluminum plastic composite panels and packages, like medical blister, food package, etc.

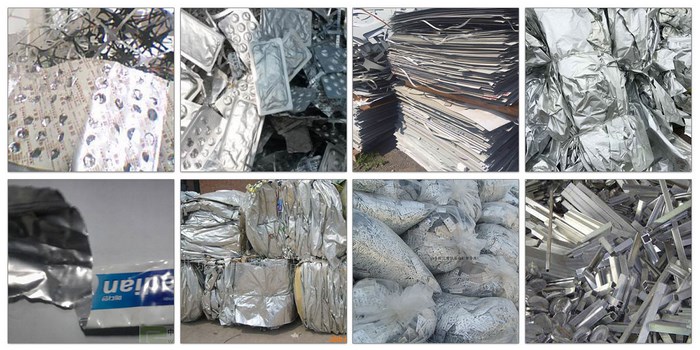

aluminum plastic separation machine Aluminum plastic composite materials

Specification of Aluminum Plastic Separation Machine:

General Model Capacity (kg/h) Power(kw) Dimension (mm) Weight (kg) Separation Rate
DY-300 200-300 70 7500*6000*4200 6500 ≥99%
DY-600 500-600 115 9500*7500*4200 7800
DY-800 700-800 215 11500*8000*4200 12800

Main Features of Aluminum Plastic Separation Machine:

1. The whole process of the aluminum plastic separation machine is controlled by PLC, which is fully automatic to work.

2. Compact structure, reasonable layout, stable performance, with noise reduction control.

3. The crushing and grinding system is equipped with circulation water cooling device, which could ensure the plastic not be melted or discolored during the crushing and grinding process.

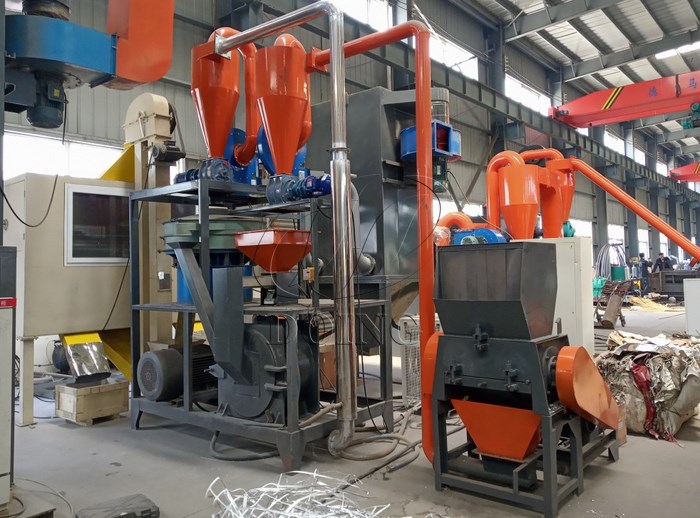

aluminum plastic separation machineAluminum plastic separation machine and the separated aluminum & plastic

4. The separation process adopts dry type electrostatic separation, no water, no chemical, no fire, no heating, thus no pollution to the air, but only bring benefit by recycling the scrap to usable products.

5. Dust would be collected by pulse dust collector during the production process, thus to keep clean working environment.

6. The separation rate and purity could reach to 99%.

DOING Company is a manufacturer specializing in the manufacture of aluminum plastic separation machine, welcome your call.
