Carbonization Machine/Charcoal making machine - Convert Various Biomass to Resouce

Other auxiliary equipment

Biomass Material Pretreatment Machine

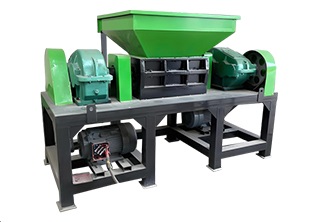

Biomass Shredder

Biomass Pellet Machine

Large Wood

Wood Pieces

Wood Chips

Biomass Pellet

Charcoal Briquettes Making Machine(Optional)

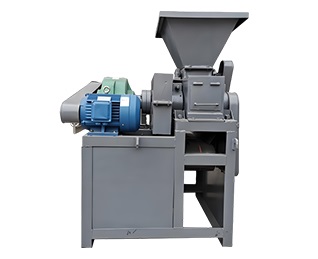

Charcoal Briquette Machine

Biomass Powder Briquettes Extruder

Charcoal Powder

Charcoal Briquette

Charcoal Stick

Charcoal Lump

Raw Materials

Wood Processing Waste

Wood chips
Waste furniture
Sawdust
Bamboo

Agricultural Planting Waste

Corn cob&stalk
Rice husk
Straw
Empty fruit bunch

Food Processing Waste

Coconut shells
Palm shell
Nut Shell
Fruit core

Forest Management Waste

Wood Logs
Branches
Trunks
Other plants

Other Kind of Biomass Materials

Food waste
Drug residue
Animal feces
Sludge

Product and ApplicationS

Charcoal

Smelting
Fuel
Purify
Fertilizer
Insulation

Wood vinegar

Soil improvement
Deodorize
Fertilizer
Additive
Food preservation

tar

Fuel
Waterproof material
Raw material of carbon black

Waste
gas

Fuel to heat reactor itself

Working Process

Crushing

Reduce feedstock to ≤30 mm particle

Crusher

Stage 1

Stage 2

Drying

Lower moisture content to ≤15%

Biomass Rotary Dryer

Carbonization

Pyrolyze biomass into raw charcoal

Continuous Carbonization Reactor

Stage 3

Stage 4

Cooling & Discharge

Rapid quenching and automated charcoal discharge

Output Systems

Flue Gas Treatment

Purify exhaust gases to meet EPA/EU emission standards

Multi-stage environmental devices

Stage 5

Stage 6

Briquetting (Optional)

Compact charcoal into uniform briquettes/rods/blocks, etc.

Charcoal Briquette Press Machine

Charocoal Briquettes

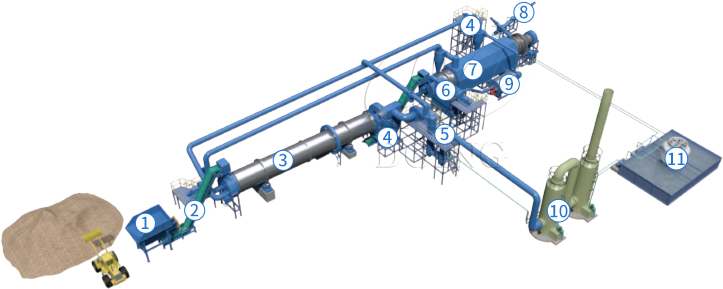

Equipment structure

carbonizing
drum

pyrolysis
furnace

spray tower

screw
conveyor

pressure
controller

TECHNICAL PARAMETER

item	Content
Inputs	Coconut shell / Palm shell / Sawdust / Bamboo / Corn cob / Rice husk / Straw
Output	Charcoal, Wood vinegar, tar(bio-fuel), Combustible gas
Material required	Size: ≤ 20mm, water content:≤15%
Model	Model	Capacity	Reactor size
	DY-T-1	1T/H	Ф1300mm*14000mm
	DY-T-3	3T/H	Ф1800mm*14000mm
	DY-T-5	5T/H	Ф2000mm*16000mm
Feeeding type	Continuous
Heating method	Indirect heating
Heating fuel	Fuel oil, LPG, Natural gas
Land required	38m10m8m
Workers required	1-2 workers per shift

Equipment advantages

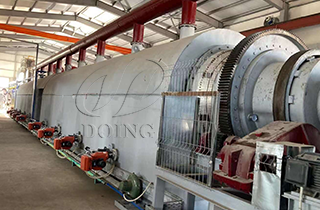

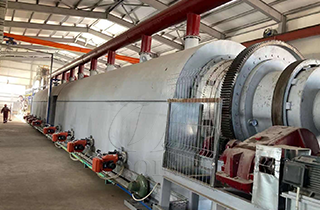

Continuous Operation, High Efficiency

Eliminates batch-processing downtime. Traditional kilns require cooling between cycles. Our continuous system feeds raw material and discharges charcoal simultaneously—operating 24/7 with no cooling stops, boosting productivity.

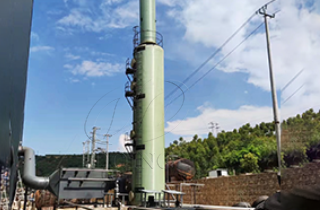

Eco-Friendly & Compliant

Sealed production guarantees zero pollution. Featuring integrated airtight design, our charcoal kiln ensures fully enclosed processing and material transfer. Eliminates dust leakage and meets all environmental compliance standards.

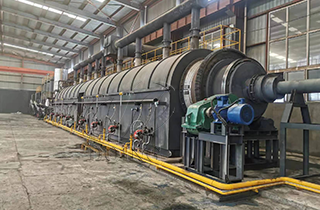

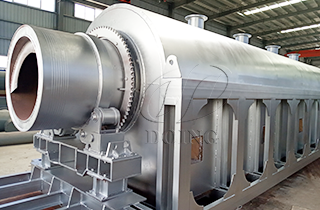

Advanced Thermal Design

Maximizes energy utilization. The dual-layer reactor dries feedstock in the inner chamber while carbonizing in the outer chamber—reducing heat loss, minimizing footprint, and achieving higher thermal efficiency.

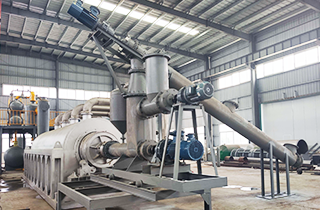

Energy-Saving Fuel Recycling

Non-condensable combustible gases produced during carbonization are recycled to fuel the charcoal making machine, reducing external fuel consumption and cutting operation cost.

Project cases

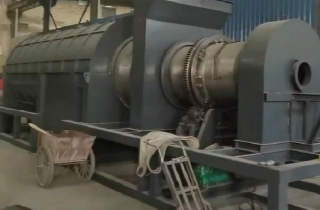

China 1t Hemp pole carbonization machine

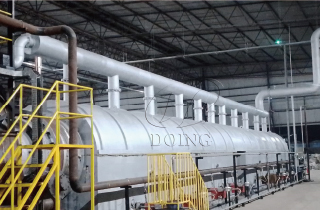

Brazil 3t sawdust carbonization machine

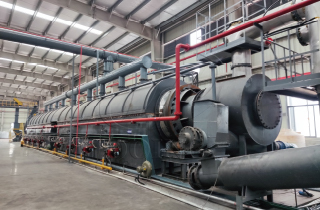

China 3t sawdust carbonization machine

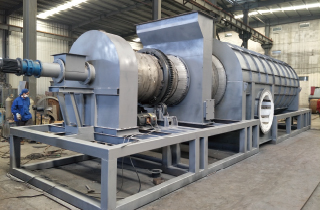

Nigeria 1t palm shell carbonization machine
Kazakhstan 3t coconut shell charcoal making machine
Russia 5 tons wood carbonization equipment
India 3 tons straw to charcoal pyrolysis plant

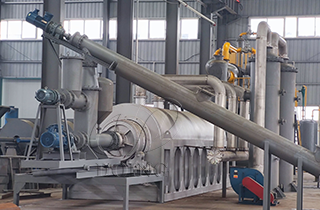

Thailand 3 tons sawdust sugarcane leaf charcoal klin

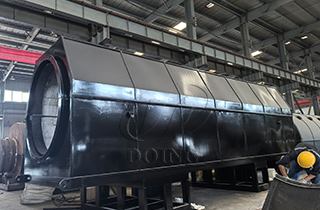

Vietnam 5 tons biomass pyrolysis plant

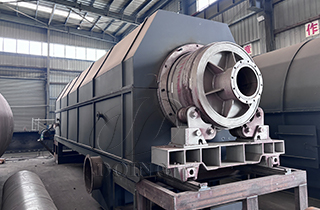

China 5 tons wood furniture carbonization furnace

CUSTOMER Feedback

company profile

Henan Doing Environmental Protection Technology Co., Ltd affiliated to Doing Holdings Co., Ltd, lies in Zhengzhou, Henan Province, China. It is a comprehensive environmental protection equipment manufacturing enterprise integrating process design, technology research and development, manufacturing, sales and after-sales service.

Relying on excellent technical R&D strength and innovative spirit, our company has won up to 23 new utility patents and invention patents. And our company is honored as the National High Technology Enterprise awarded by the Municipal Science and Technology Commission.

Our manufacturing factory convers an area of 40000+㎡, all customers are welcome to visit and test machine with the materials. Besides, we have the branch office and overseas warehouse and are building fabrication factory in Nigeria, Africa(Ogun State, Nigeria), to provide customers convenience of picking up machines from warehouse directly more conveniently.

factory display

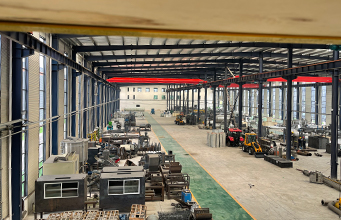

Expand a new factory

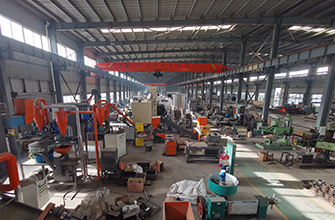

Inside the First Factory
Factory area
Factory area
Parts placement area

OTHER Products

our services

01Pre-sale Service

1. Visit the production workshop of the factory

2. One-to-one device configuration scheme

3. Plan the equipment placement site

02On-sale Service

1. Check the production of the machine

2. Communicate with equipment manufacturing progress

03After-sale Service

1. One-year warranty

2. Guide equipment installation and debugging

3. Technical training
