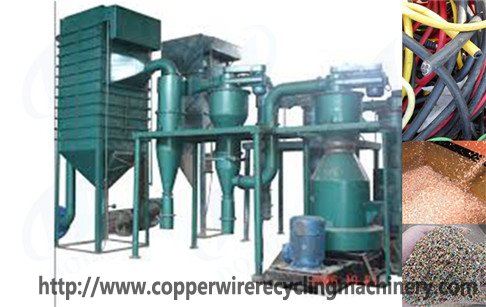

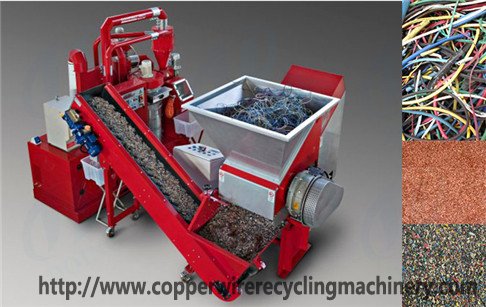

1.Wire and cable recycling plant brief introduction Wire and cable recycling plant
Wire and cable recycling machinery is a kind of machinery can be used to separate the copper and plastic material.The machine has unique structure, big processing capacity and lower power consumption. With high separation rate, controlled by PLC system, the separation is conducted by each component coordinately. This equipment has not only improved the purity of metal (copper or aluminium), but also reduced the pollution to environment. 2.Wire and cable recycling plant feature Wire and cable recycling plant
1.only 2 workers to operate the whole system
2.Cable diameter under 25mm can be processed
3.Purity of copper over 99%
4.No pollution
5.Skid mounted available
6.The whole system is controlled by PLC
7.Small land occupancy 3.Wire and cable recycling plant raw material Scrap wire and cable
Wire and cable recycling plant raw material is all kinds of scrap wires, copper wire, aluminium wire, such as automobile electric line, motorcycle electric line, storage battery electric line, waste household appliance disassembly electric line, electromechanical equipment disassembly electric line, computer cable, telephone wire, cable TV line, communication cable and other scrap wires which are difficult to recycle, circuit board, copper-clad plate, etc

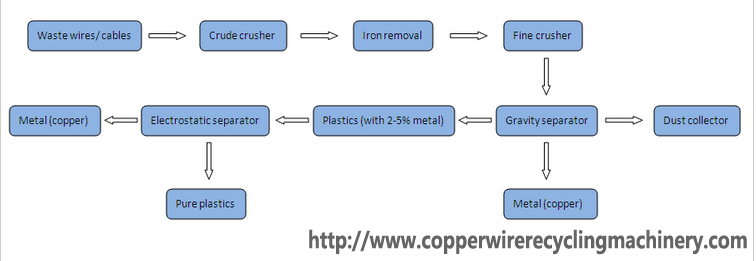

4.Wire and cable recycling plant working process Wire and cable recycling plant working process
When directly put into the machine, used wire and cable is cut into granules first, during this process, copper and plastic is separated but mixed together, then the granules are sent to vibration device for separation, through wind blow and vibration, the copper and plasticis are separated, then pure copper comes out fromone side and pure plastic comes out from the other side, we collect the separated pure copper and plastic.
