Eco-friendly copper cable recycling machine/copper wire recycling machine
Overview of the copper cable recycling machine/copper wire recycling machine:
The copper cable recycling machine or the copper wire recycling machine is a kind of cable recycling machine collecting the waste and old wires. It can separate
the plastics of the cable from the copper wire. The copper cable recycling machine is an environment friendly facility.
Classification of the copper cable recycling machines: dry type copper cable recycling machine, wet type copper cable recycling machine

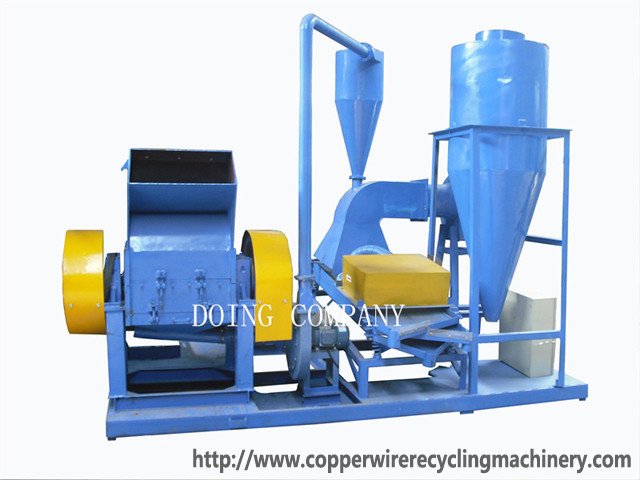

copper cable recycling machine
Advantages of copper cable recycling machine/ copper wire recycling machine:
The whole set of copper cable recycling production line developed by our company has many advantages: novel and unique structure, strong production capacity, low power consumption, one time feed, and multi-machines' cooperation. This production line can complete the separation and recycling of the copper and plastics from the crushed cable wires. The whole production line is controlled by the PLC system. The successful development of the copper cable recycling
machine solves the pollution problem during the incineration of the copper wires. It not only improves the quality of the recycling copper, but also realizes the
recycling of the plastics.

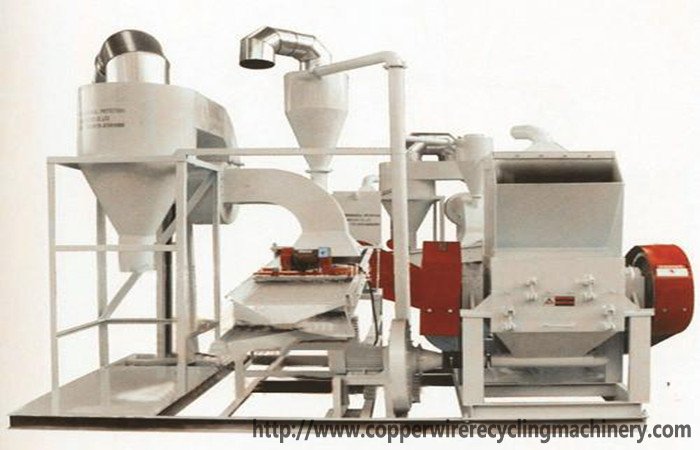

copper cable recycling machine
Work flow of the copper cable recycling machine/ copper wire recycling machine:
flow chart of copper cable recycling machine
The dry type copper cable recycling machine needs no water during the separation process. It adopts the airflow separation, air shaking table or electrostatic separation technology. Its whole processing technology is crushing – airflow separation/ electrostatic separation – dust collection.
Processing technology of the copper cable recycling machine/ copper wire recycling machine:
It is quite an advanced technology to adopt the copper cable recycling machine to handle the waste cable. Since 1980s, this technology has been widely applied
in developed countries like America. With the world class technology, the waste cable becomes pure copper grains and plastics after being processed. The so-
called copper grains refer to copper particles with the weight of the electrolytic copper which can be used directly.
Technical data of copper cable recycling machine/ copper wire recycling machine:
|
Model |
Voltage |
Power |
Capacity |
Dimension |
Weight |
|
DYTM-400 |
380V |
22.45 kw |
150-200kg/H |
2700*1900*2300(mm) |
1200kg |
|
DYTM-600 |
380V |
36 kw |
300-400kg/H |
3500*1900*2700(mm) |
3000kg |
|
DYTM-800 |
380V |
75 kw |
500-600kg/H |
5500*4500*3300(mm) |
8000k |
