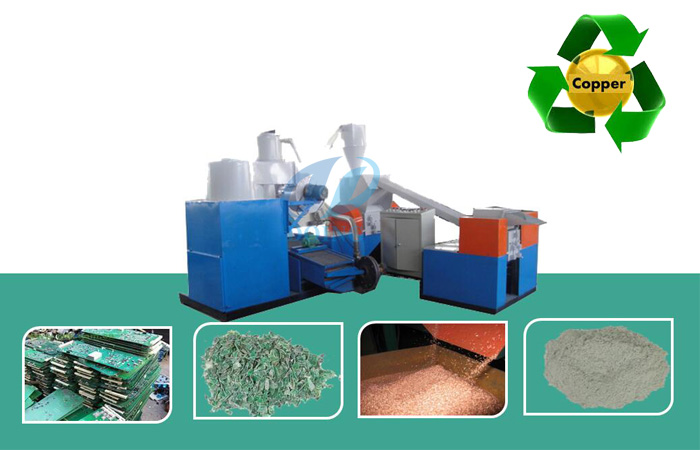

PCB board recycling process plant

pcb recycling plant
PCB board recycling process plant
Waste PCB board recycling process plant adopts a process route that makes raw materials such as PCB waste (printed circuit boards) to be a mixture of metal and resin fiber powder by dry crushing and pulverization and then separates the metals from the non-metal materials such as resin by high voltage electrostatic separator.
pcb process plant
PCB board recycling process plant

To avoid dust pollution in the process,we already add some air cleaning equipments for the solution of the problem of dust pollution with every index up to the national standard.

To recycle the Printed Circuit Board/PCB Board , help our world-wide customers get the metal and non-metal from E waste respectively and then you can sell them to profit from both resin powder and pure copper.
pcb recycling plant

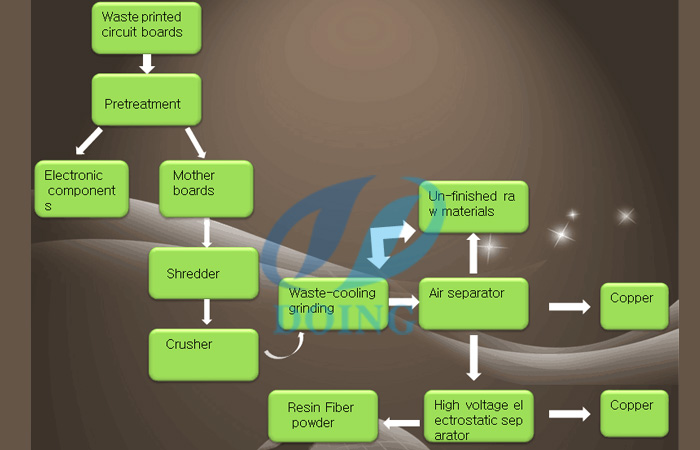

PCB board recycling process plant working process
PCB board recycling process plant  after crushing, crushing, grading of raw materials such as metal and nonmetal mixture into a mixture of winnowing separator bin, and then into the separator separation zone, due to the separator and the dust removal system connection, form the horizontal airflow, make the material produces horizontal movement, at the same time due to material gravity, and the vertical downward movement of the material, because of the difference of material proportion, mixing materials after the separation of separator at board level, the proportion of non-metallic materials, such as lighter tiny dust and particle carried by dust removal system, the proportion of heavy metal recycling raw materials by the rating plate into the finished product area, eventually achieve the separation of metal and nonmetal.

Because of the high value of the metals, fiber and resin, there is no doubt that this series plants not only help to change waste to treasure, but also bring great economic benefits.Through years of practice and theoretical analysis, we obtain the best separation result, the pcb board recycling process plant separating purity can be reached to 99%.
