Copper Cable Wire Recycling Machine

Copper cable wire recycling machine is a kind environmental protection type machinery, for recycling scrap cable wires to separated copper and plastic through crushing, air separation or electrostatic separation process, without using fire, water or chemical, thus no secondary pollution to the environment.

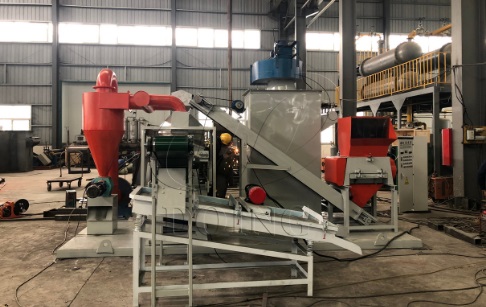

copper wire recycling machineCopper cable wire recycling machine

 Application Scope of Copper Cable Wire Recycling Machine:

All kinds of scrap cable wires

copper wire recycling machineScrap cable wires that can be recycled



copper wire recycling machineCopper separated from scrap cable wires

copper wire recycling machinePlastic separated from scrap cable wires

Specification of Copper Cable Wire Recycling Machine:

Model Dimension Capacity Power Weight Recovery Rate
DY-400 2000*1650*2600mm 100-150kg/h 18.5kw 1800kg 99.90%
DY-600 2500*1800*2850mm 200-300kg/h 45kw 3500kg
DY-800 3800*1900*3500mm 300-500kg/h 55kw 4200kg
DY-1000 4200*2100*3800mm 600-800kg/h 65kw 4800kg
DY-1200 5180*2300*4200mm 800-1000kg/h 80Kw 5500kg

Design Features of Copper Cable Wire Recycling Machine:

1. Integrated type design, with compact structure, small land occupy size, easy to move to anywhere you want;

2. PLC control, easy to operate, one operator is enough;

3. The air separator adopts Italian air suspension separation technology, both the vibration frequency and air supply could be accurately adjusted according to the different materials.

4. The crusher use SKD-11 alloy blades, the hardness is H85 degree, which could ensure the good toughness under high wear resistance guarantee with the alternated splayed structure. Also the crusher has the circulation water cooling cover which could avoid the melting of the material under high temperature caused by long time crushing.

5. The whole process is under sealed structure with advanced pulse dust collector, which could ensure no dust fly around during the operation.

6. For very thin wires, like car wires which are less than 3mm, we also have the electrostatic separator which could be equipped with the air separator for further separation, thus to fully separate the thin copper left with plastics.
