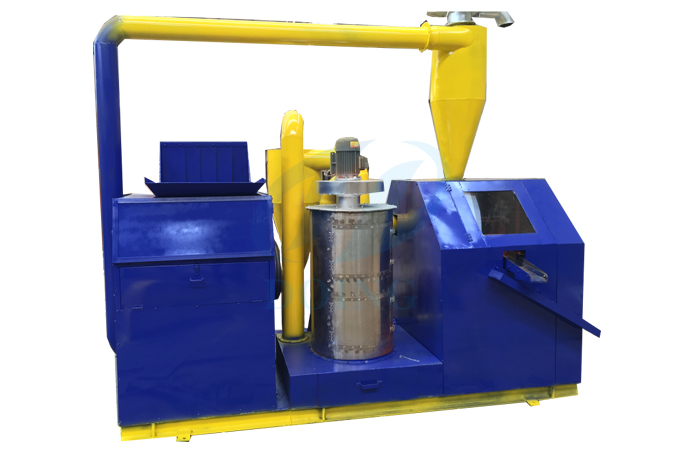

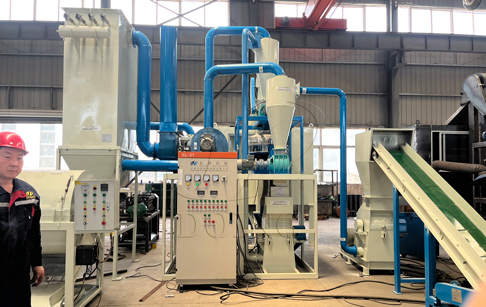

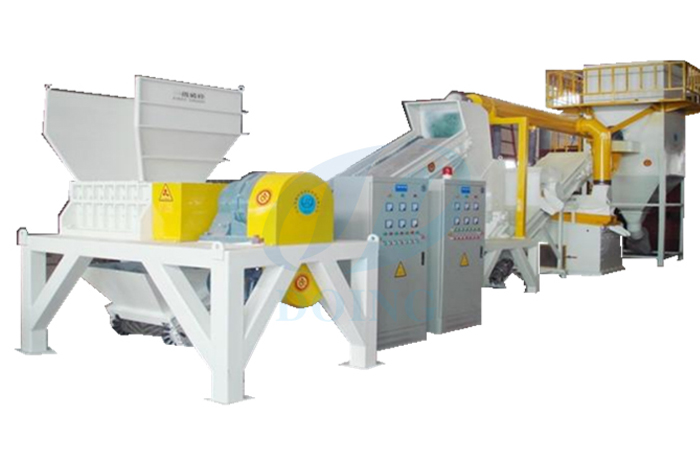

Copper cable separation has much complicated processing process. It is made up of a copper wire dual shaft pre-shredder, two conveying machines, a second copper wire crusher, copper separation system, dust collecting system etc.. At first, the pre-shredder will cut the materials into 10-15 mm pieces. Then in the second crusher will crush the materials into 3-5 mm before further separation. The whole material feeding process relies on the conveyors and you can change their conveying speed according to your production. So it will be much more convenient.
Copper cable separation features
1. Wide Application: Copper cable separation is designed to recycle various kinds of copper wire and cables with diameter between 1-20mm.
2. Multi-function: Copper cable separation combines the complex processes into one, including crushing, conveying, dust collecting, separating process. It can recycle both the copper granule and PVC plastic.
3. Environment-friendly: Copper cable separation has solved the pollution caused by the burning of the copper wires. With high copper recycling rate of 95%--99.99%, the device is with excellent dust removal performance because of the adoption of the fully closed production model.
Copper cable separation advantage
Copper cable separation advantage
1. The pre-shredder can handle connector, big plugs, metals and other hard materials. copper cable separation machine can reverse rotating when blocking to ensure smooth production.
2. The second crusher has the function of auto braking. When it is over current, the conveyor will automatically stop.
3. The whole process adopts air and vibrating separation. There is no need of water and the dust will be fully collected. There will be no pollution.
4. The machine will be controlled by PLC with star and stop buttons on it. It will work accurately and precisely.
5. Blades can be disassembled for grounding again and again. If used correctly, their service life could be much longer.
