Electrostatic Separator

Electrostatic separator is a device for separating particles by mass in a low energy charged beam. And electrostatic separation is a process that uses electrostatic charges to separate crushed particles of material. Generally, electrostatic charges are used to attract or repel differently charged material. When electrostatic separation uses the force of attraction to sort particles, conducting particles stick to an oppositely charged object, such as a metal drum, thereby separating them from the particle mixture. When this type of beatification uses repelling force, it is normally employed to change the trajectory of falling objects to sort them into different places. This way, when a mixture of particles falls past a repelling object, the particles with the correct charge fall away from the other particles when they are repelled by the similarly charged object.

The electrostatic separator is widely used in our waste recycling machinery, such as copper wire recycling machine, PCB recycling machine, aluminum plastic separation machine, mixed plastic separation machine, etc. It not only can be used to separate metal and non-metal materials, but also to separate mixed plastics. The separation rate of the electrostatic separator can reach to almost 100%.

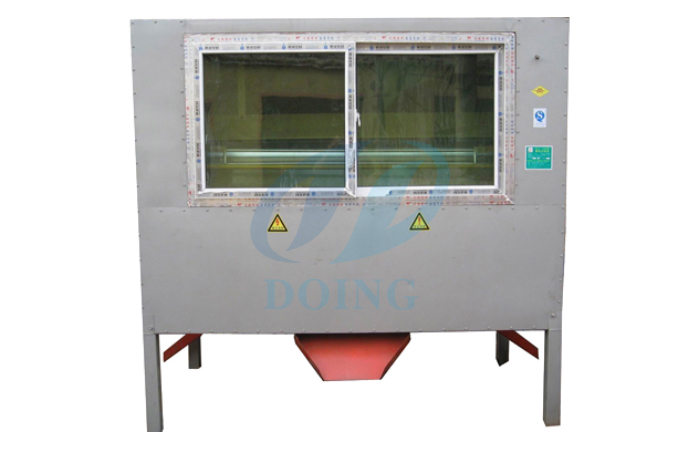

electrostatic separatorElectrostatic separator

Specification of Electrostation Separator :

Model Dimension Power Voltage Input size Weight
DY-1000 1800*1350*3500mm 3.6kw 20-60000V 0.01-4mm 1250kg
DY-1500 2300*1350*3500mm 5.5kw 20-70000V 0.01-4mm 1500kg
DY-1800 2650*1350*3600mm 7.5kw 20-80000V 0.01-4mm 1850kg

 Application Scope of Electrostation Separator:

The electrostatic separator is applicable for the separation of cable wires, PCB, aluminum plastic composite, metal extraction from mine, carbon extraction from coal ash, metal extraction from deshydratees, etc.

electrostatic separatorRaw material for electrostatic separator
