Waste pcb board recycling machine

Date:2017-10-26 10:25:30/ PCB recycling machine/ Chat Online/ Leave message
pcb board recycling machine

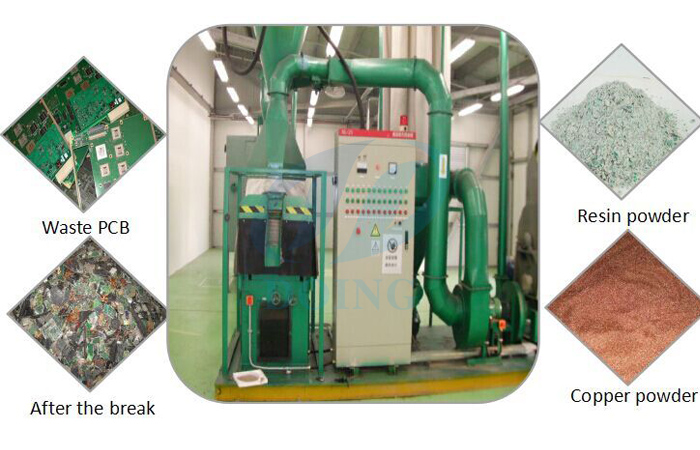

Waste pcb board recycling machine


  Waste PCB board recycling machine can be used for recycling all kinds of circuit boards, computer board, TV board, aluminum-plastic plate, copper board, printed circuit boards etc. the metal recovery rate is 99%.
 Our Waste PCB board recycling machine working principle is: Two times mechanical pulverization makes PCB into the mixtures of metal and nonmetal powder. Through the air separation technology, realizing the metal and nonmetal complete separation and collection. The whole process can be realized in one production line, fully closed operation ensures not creating any pollution.
pcb board recycling machine

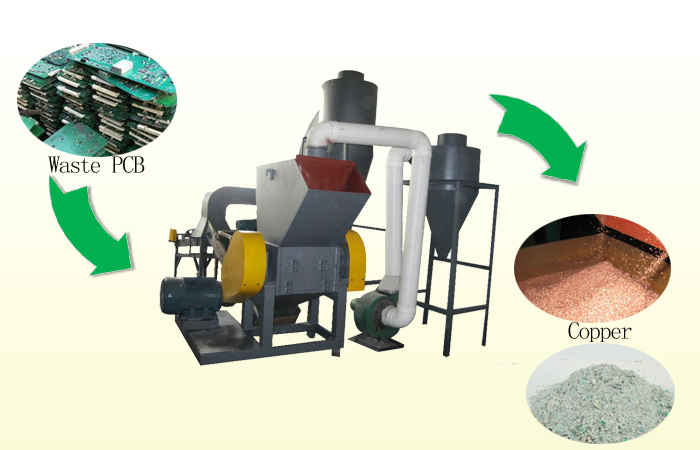

Waste pcb board recycling machine

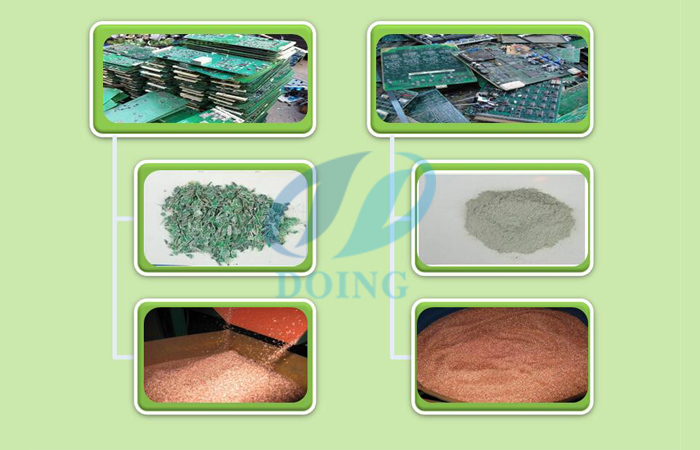

Because of the special physical characteristics of pcb board recycling machine are adopt the dry-type grinding and separating technique to recycle and reuse. The printed circuit boards will be separated into metal powder and resin fiber powder. First, the waste circuit boards will be crushed into small pieces, then will be grinded into the powder mixture of metal and resin fiber. The mixture will be completely separated via pulse air flow separation to get 97% mixed metal powder, Finally, the rest mixture powder will go into the high voltage electrostatic separator, the purity can be up to 99.9%, and the impulse dust catcher is approached to efficiently prevent the dust pollution.

Waste pcb board recycling machine feature

pcb  board recycling machine
PCB board recycling machine

1, compact structure, reasonable layout, stable performance, low noise.
2, PLC control complete production lines evenly feed, coordinated operation.
3, three-stage crushing, the processing capacity per hour 1200kg.
4, the grinding chamber by circulating water temperature control and noise reduction.
5, a full production line using vacuum feed effectively reduce dust overflow.
6, back to the material system the grinding more efficient.
7, air separation equipment sorting rate of 97 to 99%
8, pulse dust equipment efficiency as high as 99.99%.
9, high-voltage electrostatic separator make sorting more sophisticated and more efficient, effective control of non-ferrous metal loss.
10, full production line bridge and guardrail height settings, easy maintenance personnel of the equipment for real-time monitoring and maintenance.
