1.Brief introduction of Electronic wire recycling machine

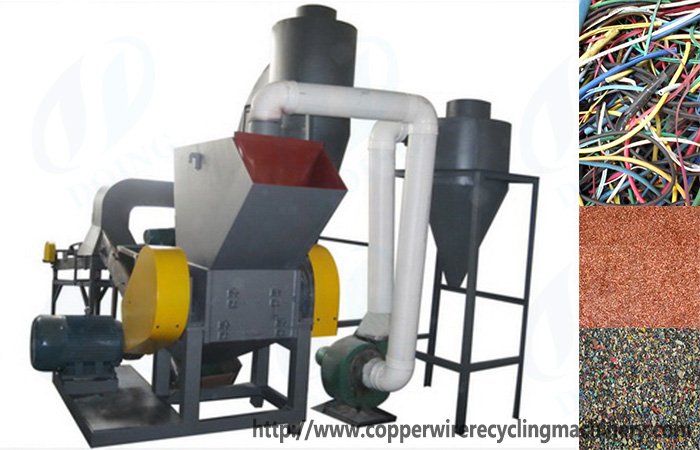

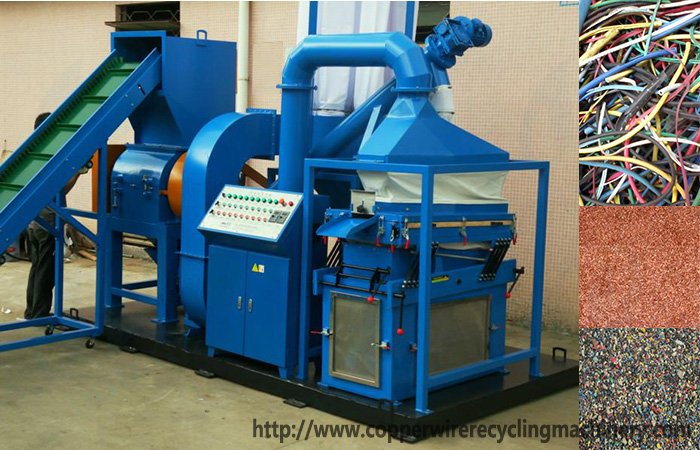

Electronic wire recycling machine
Electronic wire recycling machine , also called scrap electric wire and cable recycling machine copper wire separator, aluminium wire separator or electric wire reparator, and also can be used as PCB recycling machine, Printed Circuit Boards recycling equipment. Electronic wire recycling machine is a kind of environmental protection machine used to recyle waste electric wire, copper wire, aluminium wire, metallic composite wires and sheathed lines.
Through crude crushing, iron removal, fine crushing, gravity separation, electrostatic separation process to make completely dry and physical separation of scrap wires to get pure plastics and metal for double recycling and high benefit. Equipped with the electrostatic separator, it can make metal recovery rate get close to 99%. 2.Features of Electronic wire recycling machine
Electronic wire recycling machine
1.only 2 workers to operate the whole system
2.Cable diameter under 25mm can be processed
3.Purity of copper over 99%
4.No pollution
5.Skid mounted available
6.The whole system is controlled by PLC
7.Small land occupancy

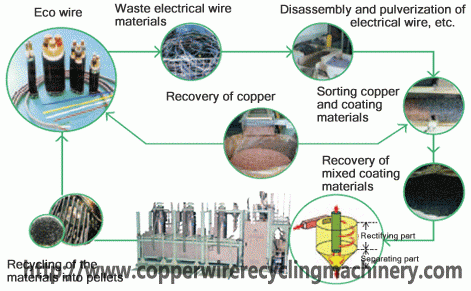

3.Working steps of Electronic wire recycling machine Electronic wire recycling machine is mainly used to make the double recycling use of metal and plastics from scrap wires. The electronic wire recyling machine through crude crushing to extract the iron materials, then through fine crushing to separate the metal and plastic mixture. Since the plastic and metal granules are uniform, but the weight has big difference, they are easy to be separated by the gravity separator. But the plastics after separated by the gravity separator is not completely clean, may have about 2-5% small copper wre or powder. Then use the electrostatic separator can extract the rest and small copper wire or powder out to get pure plastic and copper metal. Thus to increase the recycle use value of the plastics and metals.
4.Applicatin of electronic wire recyclin machine For our electronic wire recycling machine , please check the available raw materials as below:

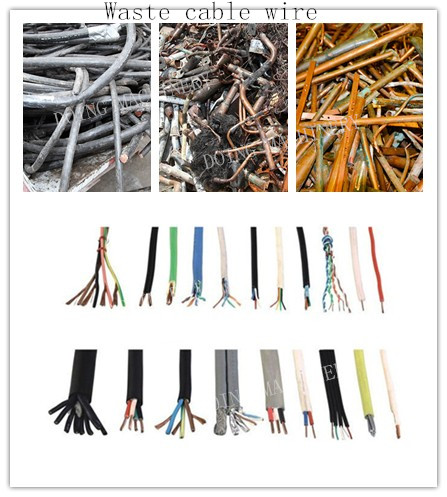

- All kinds of scrap wires, copper wire, aluminium wire, such as automobile electric line, motorcycle electric line, storage battery electric line, waste household appliance disassembly electric line, electromechanical equipment disassembly electric line, computer cable, telephone wire, cable TV line, communication cable and other scrap wires which are difficult to recycle, circuit board, copper-clad plate, etc
5.Technical data of electronic wire recycling machine
