Scrap copper wire cable granulator machine

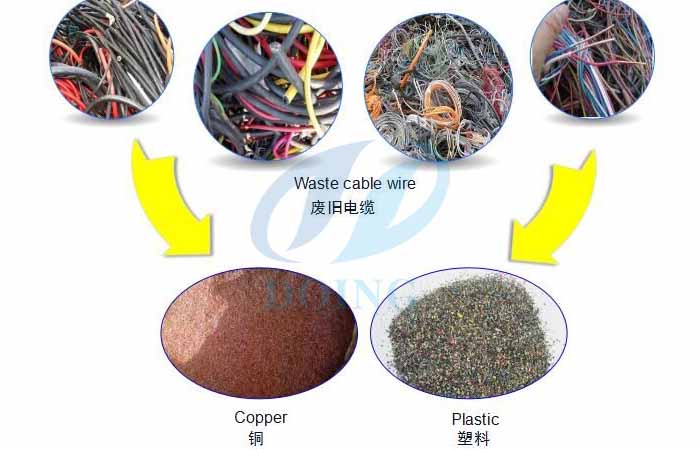

Scrap copper wire cable granulator machine is used to recycle the used scrap copper wire cables, so as to obtain the copper and plastic inside.

Raw materials of scrap copper wire cable granulator machine:

scrap copper wire cable granulator machineDifferent raw materials

Actually, Henan Doing's used scrap copper cable recycling machine can process many waste cable wires, like automobile electrical route and car bottom lines, motorcycle electric wires, computer case lines and communication wires, industrial cables, household square lines, etc. It can be said that it can process all kinds of scrap cable wires.

Parameter of scrap copper wire cable granulator machine:

Due to the amount of raw materials collected by different people, the processing capacity of scrap copper wire cable granulator machine is also large and small. The specific parameter is as follows:

Capacity (kg/h)Overall DimensionPower(Kw)Weight(Kg)Recovery Rate
200-300kg/h5000*4000*2500mm38kw3500kg≥99%
500-600kg/h14000*6000*4200mm100kw7000kg
1000kg/h18000*14000*4200mm210kw10000kg
2000kg/h28000*20000*5000mm300kw15000kg

Workflow of scrap copper wire cable granulator machine:

Because there are different parameter and configuration of scrap copper wire cable granulator machine, the workflow may be a little different. The whole working process is as follows:

1. Shredding - Using a double-shaft shredder to shred different waste cable wires into small pieces about 5-8cm;

2. Iron removal - Using magnetic separator to remove the iron inside;

3. Crushing - Using a knife crusher to crush these small pieces into small particles;

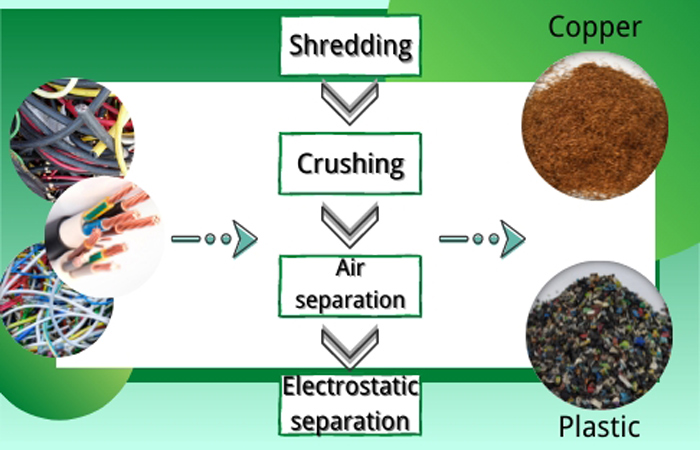

scrap copper wire cable granulator machineWorking process of scrap copper wire cable granulator machine

4. Air separation - Using an air separator to separate copper from plastic according to their different gravity with separation rate of 97-98%;

5. Electrostatic separation - Using an electrostatic separator to separate copper from plastic according to different conductivity. The separate rate of electrostatic separation can reach to 99%;

6. Dust removal - Using pulse dust and cyclone dust removal system to collect the dust with the collect rate of 99.5%.


The above is the working video of scrap copper wire cable granulator machine,  which can help you get a better understanding.

Final products of scrap copper wire cable granulator machine:

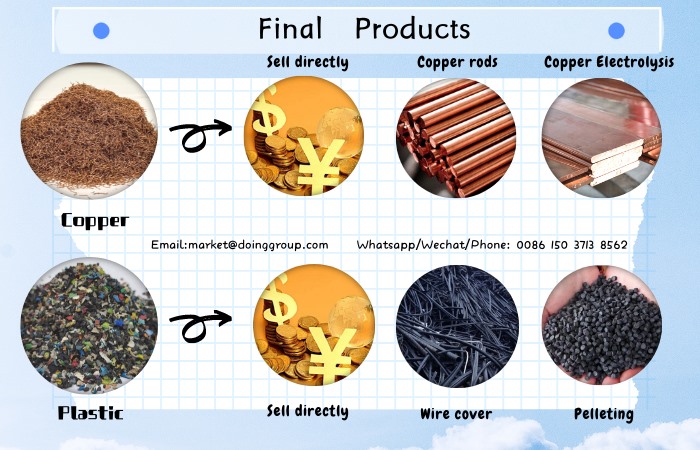

scrap copper wire cable granulator machineFinal products and usage

Copper: It can be sold in the metal trading market directly, or you can make new products, like copper ingots, copper Electrolysis, and then sell.

Plastic: As for plastic, it can be sold directly as well. Or you can pellet the plastic into other products, like wire cover, tray, blister sheet, mouse, keyboard, etc.

Advantages of scrap copper wire cable granulator machine:

1. Excellent material

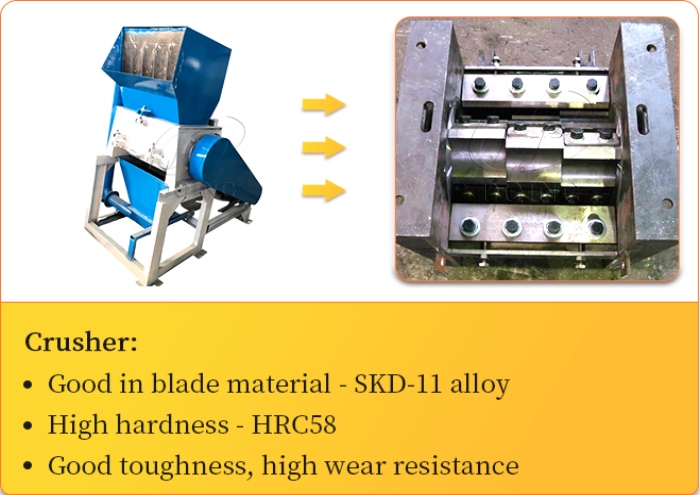

scrap copper wire cable granulator machineBlade of crusher

The material of scrap copper wire cable granulator machine adopts excellent materials, which make it has longer use life. For example, the blade of crusher is made of SKD-11 alloy, with high hardness and weariness, which is designed for processing waste cables and wires.

2. High separating rate

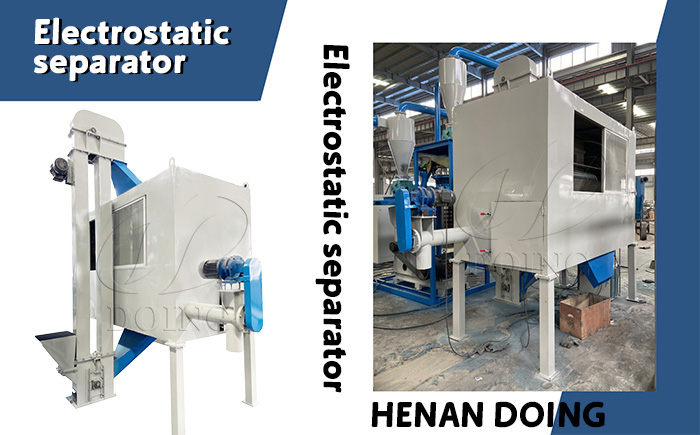

scrap copper wire cable granulator machineElectrostatic separator

Scrap copper wire cable granulator machine uses two separation processes of air separation and electrostatic separation, which can separate fine copper from plastic according to their different gravity and conductivity with the separating rate of 99%.

3. Environmental friendly

Scrap copper wire cable granulator machine has changed traditional method of burning wires and cables and corrosion of the cable cover, recovering copper by physical crushing, separation and dust collect, which has any pollution to environment.

Project cases of scrap copper wire cable granulator machine:

1. DY-400 copper wire granulator machine purchased by Ethiopian customer

2. Indian customer ordered a cable wire granulator and PCB recycling machine

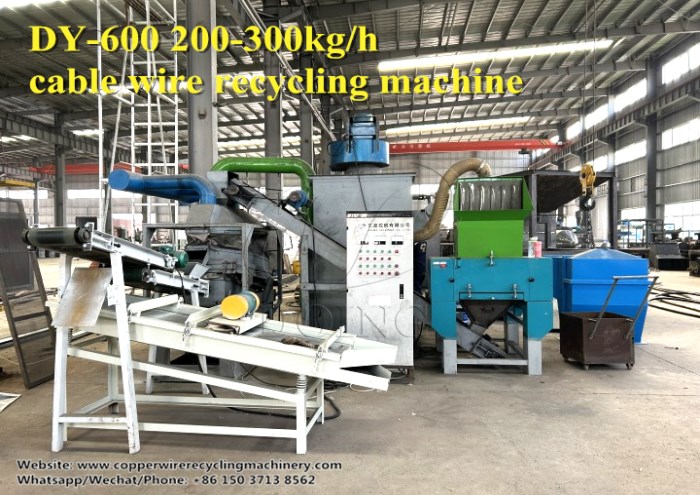

3. Myanmar customer ordered a DY-600 cable wire granulator from Henan Doing Company

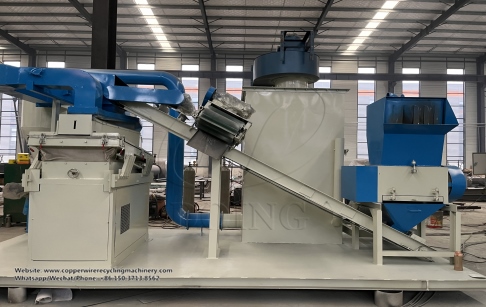

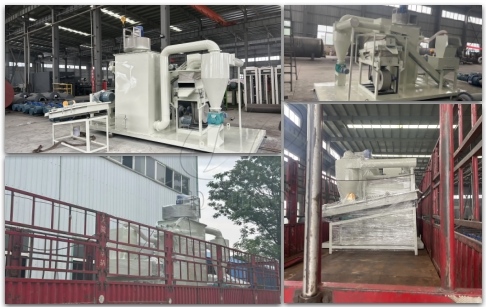

scrap copper wire cable granulator machineScrap copper wire cable granulator machine

Henan Doing Environmental Protection Technology Co., Ltd has rich experience in scrap copper wire cable granulator machine manufacturing over 12 years, and has installed machine in India, Ethiopia, Ireland, Greece, Singapore, etc. Welcome to contact us, if you are interested in our scrap copper wire cable granulator machine.
