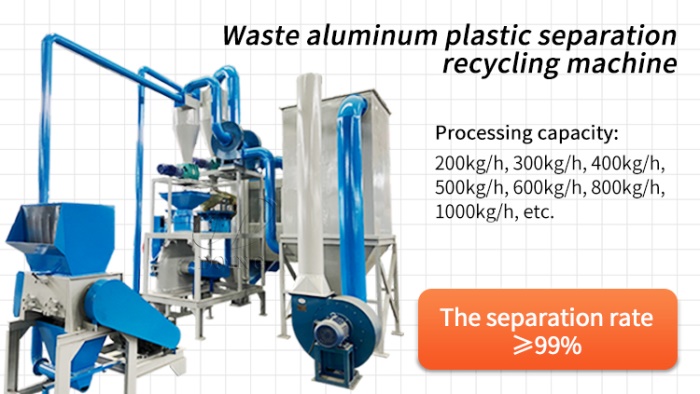

Aluminum plastic sorting machine

Product introduction:

aluminum plastic sorting machineAluminum plastic sorting machine

Aluminum plastic sorting machine is designed by Henan Doing, which is used to process aluminium and plastic materials, and turn them into aluminum particle and plastic powder, which is a high payback machine.

Scope Range:

Aluminum plastic sorting machine is mainly used for recycling and sorting various conductor and non-conductive materials mixture, aluminium metal and PVC nonmetal separation mixture. The main raw materials as following:

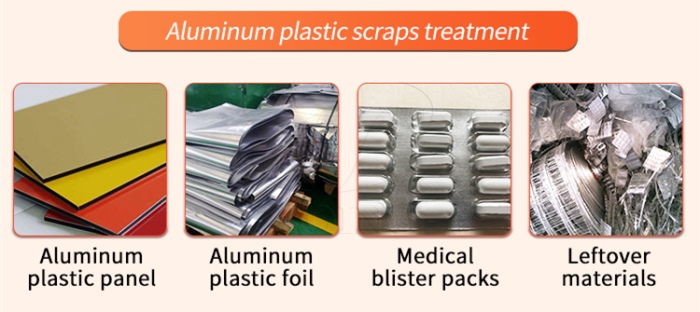

aluminum plastic sorting machineSome raw materials

Various medical board recycling, pill blister, reuse & recycle aluminum foil, alumina foil laminate pack, toothpaste tubes, composite Al-plastic seals, foil sealing lids, pharmaceutical blister foil, decorative materials(scrap aluminium composite panel, composite aluminum profile) and other aluminium foil container recycling.

Output products:

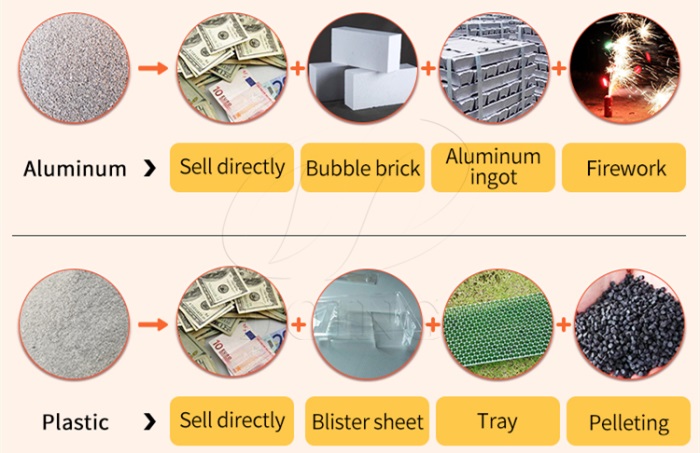

aluminum plastic sorting machineFinal products and application

Aluminum: The separated aluminum has good quality, which can be sold directly, or you can make it into new products, like bubble brick, aluminum ingot, firework, etc, and sell.

Plastic: The plastic is usually granulated into other products, like blister sheet,tray, wires coat, etc. The price will be a little higher than selling directly.

Profit analysis:

The table below is an analysis of the profitability of aluminum plastic recycling business with DOING's 500kg/h aluminum plastic sorting machine, but there are differences in the prices of aluminium and plastic in different cities, so this table is for reference only.

Running cost / Day
ItemInputQuantityPriceInput costTotal cost
1Medical blister200-300kg/h * 8h = 2T392 USD/ T784 USD920.54 USD
2Power consumption93Kw/H *0.65* 8H = 483.6KwH0.15 USD/ KWH72.54 USD
3Workers2 workers32 USD Per/Day64 USD
Income / Day
ItemOutputQuantityPriceIncomeTotal income
1Aluminum2T *20%= 0.4T2,195 USD / T878 USD1765.4 USD
2PVC2T*80%= 1.6T549 USD / T878.4USD
 Daily Profit = 1765.4–920.54 = 835.86 USD

Working process:

1. Crushing

Put the aluminum and plastic materials into a crusher to crush them into smaller particles.

2. Grinding

Send the crushed particles into a grinder, and grind them into powder.

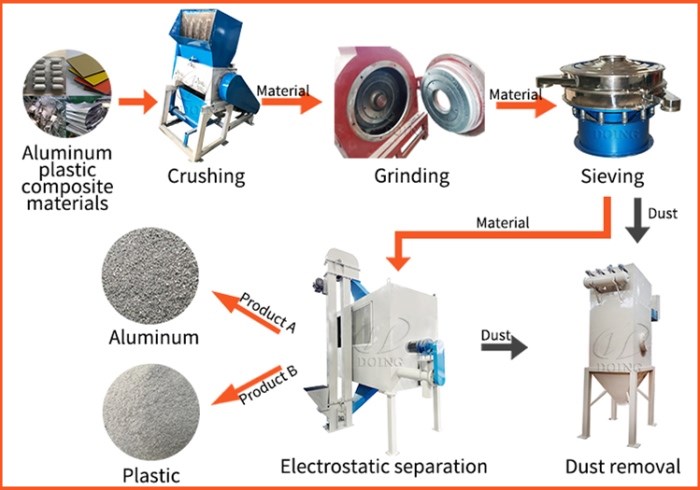

aluminum plastic sorting machineWorking process

3. Sieving

Then the aluminum powder and plastic powder will be sent to eddy-vibrating screen to control the powder size - bigger powder will be sent back to the grinder for further grinding.

4. Electrostatic separation

Finally, the mixed aluminum powder and plastic powder will be separated into separate aluminum powder and plastic powder according to an electrostatic separator by taking advantage of the different conductivity of metal and non-metal.

Here is a 3D working video of aluminum plastic sorting machine, which can help you get a better understanding.

Features:

● Using high-voltage electrostatic sorting technology, high recovery of aluminum metals, as high as 99%, not only maintain the quality of the original aluminum, but also can recycling plastic, produce greater economic benefits;

● Double dust removal device: cyclone dust collector and pulse dust collector, to effectively solve the problem of dust pollution, no dust, no pollution;

● Low noise, small footprint, less power consumption, stable performance;

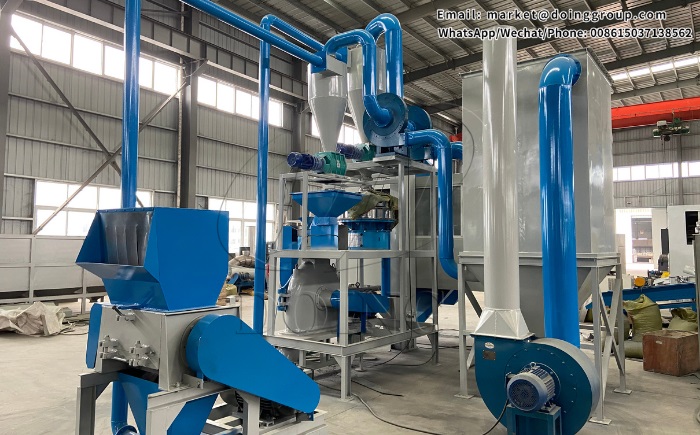

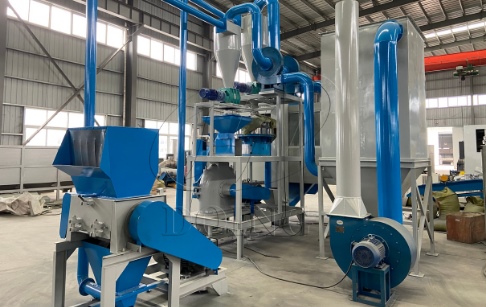

aluminum plastic sorting machineAluminum plastic sorting machine

Henan Doing Environmental Protection Technology Co., Ltd. is deeply involved in the R&D and manufacturing of aluminum plastic sorting machine, and has established an equipment processing plant of about 40,000 square meters dedicated to equipment R&D, testing and fabrication. If you are interested in our aluminum plastic sorting machine, Welcome to visit and inspect.
